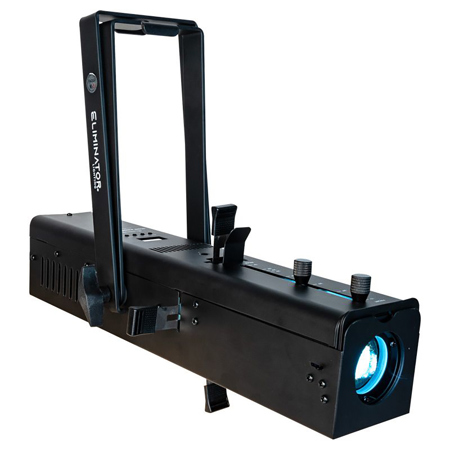

American DJ Eliminator Lighting Ikon Profile Plus 40W LED Gobo Projector

SKU: ADJIKO400

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ Ikon Profile Plus Specifications

Light
  • Fixture Type

    Gobo Projector

  • Light Source

    1x White LED - 40 W

  • Expected Lamp Life

    50,000 Hours

  • Colors

    White

  • Color Temperature

    9500K

  • Beam Angle

    15 to 30 Degree

  • Iris

    No

  • Focus

    Manual

  • Dimming

    Electronic, 0 to 100% with 6 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    DMX, Standalone

  • Macros / Programs

    No

  • Effects

    Strobe (Variable Speed)
    Pulse (Variable Speed)

  • Gobos

    1x Removable Glass Gobo
    4x Removable Metal Gobo

  • Gobo Size

    Outer Diameter: 1.06" (26.8mm)
    Max Image Size: 0.9" (22.86mm)

Control

Jump to...
  • Control Protocols

    DMX512
    With Wired Digital Communication Network

  • DMX Channel Modes

    2 Mode(s): 3 / 4-Channel

  • Display / Controls

    LED / 4-Button

  • Remote Control

    IR Remote (with Included Equipment)

  • Mobile App Compatible

    No

Connectivity

Jump to...
  • Inputs/Outputs

    2x XLR 3-Pin DMX Input/Output

  • Wireless

    No

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON
    Output: 1x powerCON
    Plug Type: NEMA 5-15

  • Power / Current Consumption

    44 W

  • Power Linking

    14 Units at 120 VAC
    24 Units at 230 VAC

Environmental

Jump to...
  • Environmental Protection

    No

Physical

Jump to...
  • Mounting

    Dual/Scissor Yoke

  • Duty Cycle

    No

  • Exterior Color

    Black

  • Certifications

    CE, ETL

  • Dimensions

    17.75 x 6 x 5" (450.85 x 152.4 x 127mm)

  • Weight

    6 lbs (2.7kg)

  • UPC Code

    810087372248

About American DJ Ikon Profile Plus

A flexible, forward-thinking and affordable GOBO projector that easily doubles as an effective spotlight unit, Eliminator Lighting's Ikon Profile Plus combines a powerful 40W LED, an interchangeable glass GOBO and manually adjustable beam angle/focus features in one exceptionally portable package. This compact projector is a great lighting solution for houses of worship, nightclubs, bars, stage productions and event retail outlets.

Do you want to incorporate high-power GOBO effects into your lighting setup without spending big bucks The Eliminator Lighting Ikon Profile Plus is an unbelievably compact GOBO projector that boasts a powerful LED source, easy-to-adjust framing shutters, and a textured glass GOBO, letting you create super-bright, adaptable GOBO projections from one portable unit. This projector is fitted with a 40W white LED (9500K) and a textured glass GOBO, a combination that lets you create a powerful beam of optimized white light that makes your GOBO projections not only extra-bright, but crisp and rich too.

Thanks to Eliminator Lighting's commitment to providing lighting solutions that are not only forward-thinking and cost-effective but highly versatile too, you'll find a number of features that make the Ikon Profile suited to a range of events and situations. For starters, the beam angle can be manually adjusted (15-40-degrees) and the GOBO swapped, effectively allowing you to turn the Ikon Profile Plus into a spotlight, with the five dimmer curves letting the beam be optimized for everything from architectural applications to stage performances. As well as changing the beam angle to suit your needs, the unit can also be manually focused to ensure a vivid projection at all times.

The other key feature which allows the versatile Ikon Profile Plus to reign supreme is its framing shutters: being manually adjustable, they allow you to craft the light produced by the unit into any four-sided shape you require. So, whether you want a square beam, or decide to go for a wider rectangular form, you can match the Ikon Profile's projection to venue features or specific areas, for a more uniform, sleek look.

Completing the Ikon Profile Plus' innovative range of features, Eliminator Lighting has fitted the unit with a drop-in GOBO slot (for 26.8mm GOBOs). This means that whether you choose to use metal GOBOs or glass, you can easily interchange them to achieve different but equally as effective results. The compact new unit also makes the most of a color frame, giving you the flexibility to add color filters and color correction filters to generate powerful beam projections in a range of vivid hues.

When it comes to controlling the Ikon Profile, you have access to four DMX channels - allowing you to get extra imaginative with your GOBO lightshows through DMX control - as well as being able to operate the unit via the included UC IR wireless remote. The hand-held UC IR control remote enable wireless operation from a distance of up to 30ft, giving you the freedom to create pure lighting excitement from any position, whether you're working the lights from behind the bar or you're tucked away in the lighting booth at the back of the event. Using the game-changing, you can even trigger these unique GOBO projections from the convenience of your handheld iOS device - for true versatility

The Ikon Profile Plus' power and flexibility also make it the perfect projector for houses of worship, nightclubs, bars, stage productions and event retail outlets. For these bigger events, where the fixture is highly effective used in multiples, the Ikon Profile's power outlet allows the power for up to 14 units to be daisy-chained at 120V (24 @ 230V), for a widespread lightshow that really packs a punch!

Letting you bring powerful GOBO effects to your nightclub or bar during late-night events, you'll have no problems running the Ikon Profile Plus all night long without any duty cycle, thanks to its low heat output and efficient LED source. The unit also ships with an included yoke, so you can easily mount it on a wall or hang the light from trussing, enabling you to deliver eye-catching beams of bright white light from a range of angles.

American DJ Ikon Profile Plus Features

  • High quality optics - Clear powerful output
  • Adjustable beam angle: 15-30 degrees
  • Manually adjustable Focus
  • 4 manually adjustable Framing Shutters
  • Drop in Gobo Slot for Metal or Glass Gobos
  • Color Frame For Color Filters
  • Run all night - No Duty Cycle
  • Compatible with UC IR wireless remote control (included)

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Key Features

  • High quality optics - Clear powerful output
  • Adjustable beam angle: 15-30 degrees
  • Manually adjustable Focus
  • 4 manually adjustable Framing Shutters
  • Drop in Gobo Slot for Metal or Glass Gobos
  • Color Frame For Color Filters

What's in the box:

  • American DJ Eliminator Lighting Ikon Profile Plus 40W LED Gobo Projector
  • Glass Gobo
  • 4x Metal Gobos
  • Gobo Holder
  • UC-IR Wireless Remote
  • Gel Filter
  • Dual-Yoke Bracket
  • Locking Power Cord
  • American DJ 2 Year Limited Warranty
