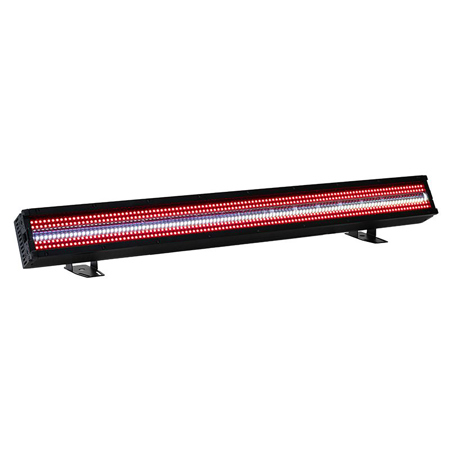

American DJ Jolt Bar FXIP IP65 RGBW LED Linear Wash and Strobe Fixture

SKU: ADJJOL687 MFR: JOL687
Earn VIP Reward Points

Key Features

  • Create dynamic light shows with the Jolt Bar FXIP's vibrant RGBW color mixing.
  • Achieve seamless lighting effects with the linear wash fixture's electronic dimming.
  • Enjoy flexible control options, including DMX, auto programs, and primary/secondary modes.
  • The IP65 rating ensures reliable performance, making it perfect for outdoor events.
  • Easily mount the linear light using the included omega brackets for secure placement.
  • Customize your display with 48 zones for stunning pixel mapping visual effects.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American DJ Jolt Bar FXIP Specifications

Light
  • Fixture Type

    Linear/Bar Light

  • Light Source

    448x Color LED (SMD) - 0.5 W
    112x White LED (SMD) - 5 W

  • Expected Lamp Life

    50,000 Hours

  • Colors

    Blue, Cool White, Green, Red

  • Pixel Configuration

    48x Zone

  • Beam Angle

    78 Degree

  • Field Angle

    117 Degree

  • Shutter / Strobe

    Electronic

  • Iris

    No

  • Zoom Adjustment

    No

  • Dimming

    Electronic, 0 to 100% with 6 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    Automatic, DMX, Primary/Secondary, Program

  • Macros / Programs

    25x Auto-Program
    9x Color Macro

  • Effects

    Strobe (Variable Speed)
    Pulse

  • Strobe Rate

    0.4 to 20 Hz

  • Gobos

    No

  • Refresh Rate

    900 Hz to 25 kHz (Adjustable)

Control

Jump to...
  • Control Protocols

    DMX512
    With Wired Digital Communication Network

  • DMX Channel Modes

    13 Mode(s): 6 / 9 / 13 / 16 / 18 / 32 / 32a / 38 / 43 / 64 / 78 / 112 / 126-Channel

  • Display / Controls

    OLED / 4-Button

  • Remote Control

    No

  • Mobile App Compatible

    No

Connectivity

Jump to...
  • Inputs/Outputs

    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • Wireless

    Wireless DMX (Built-In)

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON
    Output: 1x powerCON
    Plug Type: NEMA 5-15

  • Fuse

    T 5 A 250 V

  • Power / Current Consumption

    120 VAC, 60 Hz: 214 W (Max)
    230 VAC, 50 Hz: 208 W / 1.4 A (Max)

  • Power Linking

    6 Units at 120 VAC
    12 Units at 230 VAC

Environmental

Jump to...
  • Environmental Protection

    No

Physical

Jump to...
  • Mounting

    Omega Bracket

  • Duty Cycle

    No

  • Exterior Color

    Black

  • Certifications

    CE, cETLus

  • Dimensions

    39.4 x 5.42 x 4.19" (1000.8 x 137.67 x 106.43mm)

  • Weight

    20.5 lbs (9.3kg)

  • UPC Code

    810087372446

About American DJ Jolt Bar FXIP

The ADJ Jolt Bar FXIP is an IP65-rated professional linear LED fixture that delivers Lighting Designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored chase effects in one versatile unit. It is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and other largescale events.

The ADJ Jolt Bar FXIP features a central strip of 112 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 448 x 0.5-Watt RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing as well as colored washes and strobe effects. Both types of LED are grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other 'eye candy' effects.

Building on the success of the original Jolt Bar FX, the Jolt Bar FXIP features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. The fixture is IP65-rated for temporary use outdoors as well as indoor use. ADJ's proprietary Aria X2 wireless DMX is built-in to each fixture (also compatible with ADJ's WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. The fixture is supplied with a frost lens assembly that easily attaches to the front of the unit to change its look and output. The frost blurs the pixel dots, providing designers another creative way to change the effect from project to project. And, each fixture is also supplied with a connecting plate that allows multiple units to be joined together seamlessly.

With a wide 117-degree beam angle and immense light output, the Jolt Bar FXIP is ideally suited to large concert and festival stages, as well as dance events and largescale productions. It is supplied with a pair of versatile 180-degree variable hanging brackets, which can also be used as floor stands, and is designed such that multiple units can be positioned side by side to create continuous zone chase effects. For strobe effects, the unit offers variable speed between 0.35Hz and 25Hz and its LED refresh rate can also be adjusted between 900 and 25kHz.

The fixture offers a choice of 13 different DMX modes (6, 9, 13, 16, 18, 32, 32A, 38, 43, 64, 78, 112 and 126 channels), allowing flexibility depending on the level of control required and the number of channels available. To aid with quick and eye-catching programming, the unit is also supplied with 25 built-in RGB LED program macros and 9 built-in white LED program macros. An intuitive 4 touch button LCD menu display on the rear of the unit facilitates easy DMX addressing as well as configuration of the various operating modes.

Measuring 1m in length (39.4"), the fixture is compact in its other dimensions (5.42"/107.5mm and 4.19"/106.5mm). It has a robust metal construction yet has been carefully engineered to keep its weight to a minimum (20.5lbs. / 9.3kg), making it ideal for concert touring and event production applications. It is fitted with IP65 outdoor locking power input and output sockets, allowing multiple fixtures to be connected from a single power outlet, which are positioned on either side of the fixture - together with the IP65 outdoor 5-pin DMX input and output sockets - to allow convenient setup and neat cable runs.

American DJ Jolt Bar FXIP Features

  • 32x RGB LED Zones
  • 16x Cool White LED Zones
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • 180 degree mounting bracket system
  • IP65-rated (for temporary outdoor use)
  • Aria X2 Wireless DMX Built-in
  • Frost Lens Assembly
  • Includes Alignment Bracket to attached units together

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Key Features

  • Create dynamic light shows with the Jolt Bar FXIP's vibrant RGBW color mixing.
  • Achieve seamless lighting effects with the linear wash fixture's electronic dimming.
  • Enjoy flexible control options, including DMX, auto programs, and primary/secondary modes.
  • The IP65 rating ensures reliable performance, making it perfect for outdoor events.
  • Easily mount the linear light using the included omega brackets for secure placement.
  • Customize your display with 48 zones for stunning pixel mapping visual effects.

What's in the box:

  • American DJ Jolt Bar FXIP IP65 RGBW LED Linear Wash and Strobe Fixture
  • 6' (1.83m) IP65 Locking Socket to Edison Power Cable (U.S.)
  • Frost Filter
  • 2x Omega Receiver Brackets
  • American DJ 2 Year Limited Warranty
