American DJ Mega 64 Profile Plus 12x 4W 4-In-1 Quad RGB+UV LED Par Fixture
See all American DJ items

American DJ Mega 64 Profile Plus 12x 4W 4-In-1 Quad RGB+UV LED Par Fixture

SKU: ADJM64PPLUS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of lighting applications is the Mega 64 Profile Plus suitable for?

The Mega 64 Profile Plus is a versatile fixture ideal for uplighting, stage lighting, and wall washing. It's perfect for concerts, theater performances, parties, and other events that require dynamic and vibrant lighting.

What makes the Mega 64 Profile Plus different from other LED Par fixtures?

The Mega 64 Profile Plus stands out with its 12x 4W Quad LED (RGB+UV) for bright and colorful lighting, 64 built-in color macros for easy customization, and a unique low-profile design that allows it to sit directly on the ground or inside a truss without a bracket.

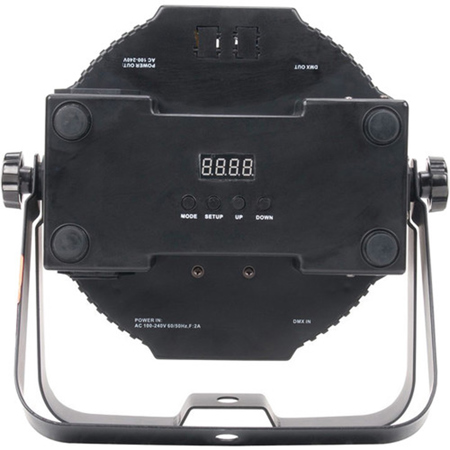

What is the advantage of having the power & DMX Ins and Outs on the side of the fixture?

Having the power & DMX Ins and Outs on the side of the fixture makes it easier to position the Mega 64 Profile Plus directly on the ground or inside a truss. This design eliminates the need for a hanging bracket and makes the fixture more versatile and convenient for various lighting setups.

Can I control the Mega 64 Profile Plus remotely?

Yes, the Mega 64 Profile Plus is compatible with the ADJ LED RC2 wireless remote (sold separately), allowing you to control the fixture conveniently from a distance.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

American DJ Mega 64 Profile Plus Specifications

Light

Light

Jump to...

  • Lighting Type

    Par

  • Light Source

    12x Color/UV LED - 4 W

  • Light Source Life Expectancy

    50 Hours

  • Color

    Red
    Green
    Blue
    Ultraviolet

  • Photometrics

    327 fc/3520 Lux at 6.56' (2m)
    76.2 fc/820 Lux at 13.12' (4m)

  • Beam Angle

    25 Degree

  • Shutter/Strobe

    Electronic

  • Iris

    No

  • Zoom Adjustment

    None

  • Dimming

    Electronic, 0 to 100%

Performance

Jump to...

  • Operating Modes

    Automatic, DMX, Master/Slave, Sound-Active, Standalone, Static Color

  • Macros/Programs

    16x Color Fade

  • Effects

    None

  • Gobos

    None

  • PWM Frequency

    504 Hz

Control

Jump to...

  • Control Protocols

    DMX512

  • DMX Channel Modes

    5 Mode(s):
    4/5/6/9/10-Channel

  • Remote Control

    IR Remote (with Optional Equipment)

  • Display/Controls

    LED/4-Button

Connectivity

Jump to...

  • Input/Output

    2 x XLR 3-Pin DMX Input/Output

Power

Jump to...

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x IEC
    Output: 1x IEC
    Plug Type: NEMA 5-15
    Cord Length: 5.91'/1.8 m

  • Fuse

    2 A

  • Power/Current Consumption

    54 W (Max)

  • Power Linking

    12 Units at 120 VAC

Environmental

Jump to...

  • IP Rating

    None

Physical

Jump to...

  • Mounting

    Mounting Bracket

  • Duty Cycle

    None

  • Color

    Black

  • Dimensions

    10.28 x 10.24 x 4.33" (26.1 x 26 x 11cm)

  • Weight

    4.6 lbs (2.1kg)

Other

Jump to...

  • UPC Code

    819730016492

About American DJ Mega 64 Profile Plus

A low profile LED Par with 12x 4W Quad LED (RGB+UV) designed for up lighting, stage lighting and wall washing. With a 25-degree beam angle and 64 built-in color macros, the ADJ Mega 64 Profile Plus is great for permanent or portable lighting solutions.

The ADJ Mega 64 Profile Plus is a compact, low profile wash fixture designed for up lighting, stage lighting and wall washing, and will bring color and excitement to any party. The Mega 64 Profile Plus is powered by twelve bright 4-Watt Quad (RGB+UV 4-In-1) LED. This Par is intelligently designed so that it may sit directly on the ground or inside truss without the hanging bracket because the power & DMX Ins and Outs sit on the side of the fixture, not on the rear.

The Mega 64 Profile Plus offers smooth RGB Color Mixing with no RGB+UV shadows, has a 25-degree beam angle and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote, which is sold separately, to control the Mega 64 Profile Plus.

American DJ Mega 64 Profile Plus Features

  • Multi-Colors
  • Five Operating Modes
  • Electronic Dimming 0-100%
  • Built in Microphone
  • DMX-512 protocol
  • 3-Pin DMX Connection
  • Five DMX Modes: 4 Channel Mode, 5 Channel Mode, 6 Channel Mode, 9 Channel Mode, and 10 Channel Mode
  • ADJ LED RC2 compatible (Not Included)
  • Power Cord Daisy Chain

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Multi-Colors
  • Five Operating Modes
  • Electronic Dimming 0-100%
  • Built in Microphone
  • DMX-512 protocol
  • 3-Pin DMX Connection

What's in the box:

  • American DJ Mega 64 Profile Plus 12x 4W 4-In-1 Quad RGB+UV LED Par Fixture
  • Scissor Yoke
  • American DJ 2 Year Limited Warranty
