American DJ Eliminator Lighting MDF3 23.6x23.6" Modular RGB Color Mixing LED Dance Floor Panel

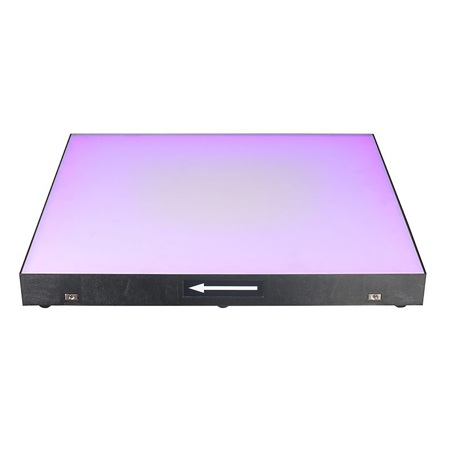

The MDF3 is a single, robust, lightweight, and modular LED dance floor panel illuminated by an arrangement of vibrant 3-in-1 RGB color mixing LEDs that is 600mm x 600mm (23.62" x 23.62") in size.

The MDF3 is a robust, lightweight, and modular LED dance floor panel illuminated by an arrangement of vibrant 3-in-1 RGB color mixing LEDs that cause its opaque surface to glow vibrantly in a wide variety of colors. It features an upgraded housing and improved power connection system that uses gold-plated copper strips and springs underneath the panels to ensure a reliable connection between adjacent units. Other enhancements include a convenient service panel and an upgraded PCB with added RDM support to allow remote fixture addressing as well as an onboard battery to allow DMX addressing and mode selection to be carried out in advance of an event without power connected to the panels.

With surface dimensions of 600mm x 600mm (23.62" x 23.62") and a low height of just 70mm (2.76"), the individual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/ sq. m (61.5 lbs/ sq. ft). A variety of power supply options are available, with the smallest capable of driving a compact configuration of 9 panels and the largest capable of supporting a huge floor of up to 156 panels, as well as edge and corner ramps to allow the panels to be deployed safely for parties and events.
