What type of LED does the PAR Z100 3K use?

The PAR Z100 3K uses a 100W warm white C.O.B. (Chip On Board) LED.

Can the beam angle of the PAR Z100 3K be adjusted?

Yes, the PAR Z100 3K comes with five different beam angle options that can be manually adjusted to suit different lighting needs.

Does the PAR Z100 3K allow for daisy chaining?

Yes, the PAR Z100 3K is equipped with locking power In/Out features for power daisy chaining and 5-pin DMX connections for data daisy chaining.

Does the PAR Z100 3K come with a gel frame?

Yes, the PAR Z100 3K includes a gel frame, which allows for the insertion of diffusion filters to further customize the beam angle.

What are the advantages of the PAR Z100 3K over traditional stage lighting?

The PAR Z100 3K offers several advantages over traditional stage lighting, including low power draw, cool operation on stage, and DMX control of dimming and strobe, eliminating the need for separate dimmer controllers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ PAR Z100 3K Specifications

Light
  • Lighting Type

    PAR

  • Light Source

    1x White LED (COB) - 100 W

  • Light Source Life Expectancy

    50,000 Hours

  • Colors

    White

  • Color Temperature

    3000K

  • Beam Angle

    9 to 30 Degree

  • Focus

    Manual

  • Dimming

    Electronic, 0 to 100% with 5 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    DMX, Standalone

  • Effects

    Strobe

  • Strobe Rate

    25 Hz (Max)

  • Color Accuracy Index

    CRI: 90

  • PWM Frequency

    1.2 kHz

Control

Jump to...
  • Control Protocols

    DMX512, RDM

  • DMX Channel Modes

    1 Modes: 2-Channel

  • Remote Control

    None

  • Display/Controls

    LED / 4-Button

Connectivity

Jump to...
  • I/O

    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON
    Output: 1x powerCON

  • Power/Current Consumption

    120 VAC, 60 Hz: 115 W / 0.96 A
    230 VAC, 50 Hz: 112 W / 0.5 A

  • Power Linking

    15 Units at 120 VAC
    25 Units at 230 VAC

Physical

Jump to...
  • Mounting

    Single Yoke

  • Exterior Color

    Black

  • Dimensions

    19.5 x 10.75 x 10.75" (495.3 x 273.05 x 273.05mm)

  • Weight

    7.5 lbs (3.4kg)

  • UPC Code

    818651020922

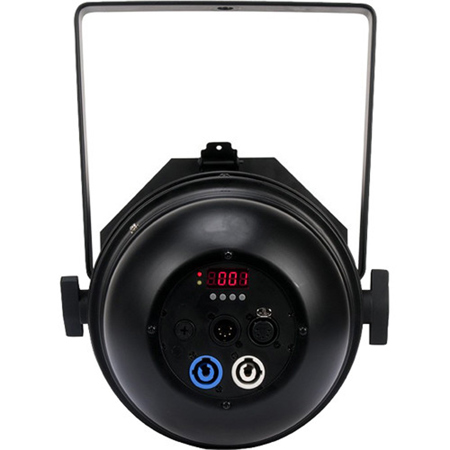

About American DJ PAR Z100 3K

When seeking a modern, high-quality lighting solution for stage performances, the PAR Z100 3K 100W COB LED Halogen Par Can stands out as a superior choice. This innovative lighting fixture offers a contemporary LED twist to the traditional halogen Par Can, providing a bright, powerful output that is comparable to a 1000W halogen sealed beam Par.

Powered by a robust 100W warm white C.O.B. (Chip On Board) LED, this versatile light fixture emits a color temperature of 3000K, creating an inviting, warm ambiance on stage. It's designed with five different beam angle options that can be easily adjusted by hand, offering flexibility to cater to various lighting needs and stage setups.

The PAR Z100 3K is equipped with locking power In/Out features, enabling the fixtures' power to be daisy-chained for efficient energy use. Additionally, it includes 5-pin DMX connections, allowing for the unit's data to be daisy-chained, providing seamless integration with other lighting systems.

This durable stage light offers the aesthetic appeal of traditional stage par lighting, combined with the technological conveniences of modern day lighting. Key advantages include a low power draw, ensuring the fixture and performers remain cool on stage, and DMX control of dimming and strobe, eliminating the need for separate dimmer controllers.

The fixture also comes with a gel frame, allowing diffusion filters to be inserted to further customize the beam angle. This feature enhances the versatility of the PAR Z100 3K, making it an ideal choice for lighting and stage designers seeking a reliable, high-performance lighting solution.

American DJ PAR Z100 3K Features

  • DMX-512 & RDM Protocol Support (4 DMX Channel Modes: 1 Channel, 2 Channels, 3 Channels & 4 Channels)
  • 5-Pin XLR In/Out Connections
  • Power In/Out Connections
  • 6 Dimmer Curve Modes
  • Digital Display for Address and Function Setting
  • Gamma Correction Adjustment
  • Dimming Frequency Adjustment
  • Multiple Unit Power Linking

Product Documents

User Manual

Key Features

  • 100W COB LED technology mimics traditional halogen Par Can with energy efficiency
  • Warm white 3000K color temperature for a cozy, inviting stage atmosphere
  • Five manually adjustable beam angles for versatile stage lighting design
  • Daisy-chainable power and 5-pin DMX connections for streamlined setup
  • Low power draw with cool operation, enhancing comfort for performers
  • Includes gel frame for customizable beam diffusion options

What's in the box:

  • American DJ PAR Z100 3K 100W COB LED Halogen Par Can (Warm White)
  • Gel Frame for Diffusion Filters
  • PowerCon Power Cable
  • American DJ 2 Year Limited Warranty
