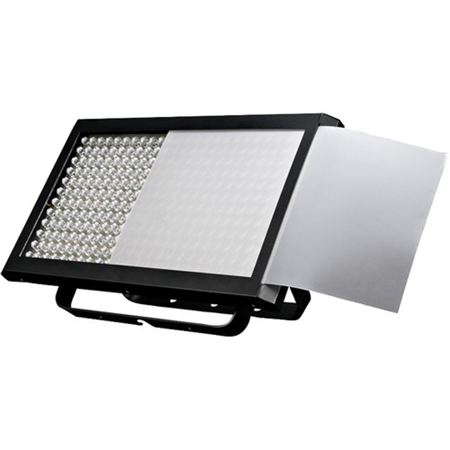

American DJ Profile Panel RGBA Compact Indoor RGBA LED Panel

SKU: ADJPPRGBA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the operational modes of the American DJ Profile Panel RGBA Compact Indoor LED Panel?

The LED panel operates in six modes, including built-in programs, sound-active mode, primary/secondary mode, and offers control with four DMX channel modes.

What is the beam angle of the Profile Panel RGBA and can it be adjusted?

The Profile Panel RGBA delivers a 30-degree beam angle. For a broader wash, a light shaping filter can be inserted into the slot on the side of the panel.

Does the Profile Panel RGBA come with any accessories?

Yes, the LED panel comes with a locking power cord, UC IR wireless remote, and an Airstream IR sensor for ease of setup and operation.

How does the Profile Panel RGBA compare to the Profile Panel RGB?

The Profile Panel RGBA is brighter, offers more color options with the addition of amber LEDs, and includes upgraded features like locking power In/Out connections and a wireless remote control.

Can the Profile Panel RGBA be used for long durations?

Yes, thanks to its energy-efficient LEDs that emit minimal heat, the fixture can run all night without a duty cycle, keeping performers comfortable and the atmosphere cool.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ Profile Panel RGBA Specifications

Optical

Optical

Jump to...
  • Beam angle

    30-degrees

  • Optical

    288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs)

Technical Features

Jump to...
  • Technical Features

    Color strobe effect
    4 DMX channel modes: 4, 7, 9 or 32
    47 built-in Color Macros
    Electronic Dimming: 0 - 100%
    Includes dual scissor yoke to hang on truss and built-in mounting brackets to hang on a wall
    Very low heat output
    Run all night - no duty cycle

Connections

Jump to...
  • Connections

    3-pin DMX In/Out
    With Wired Digital Communication Network
    Locking Power In/Out connections to Daisy Chain up to 20 fixtures Max @ 120V

Control

Jump to...
  • Control

    4-button LED display on rear panel
    6 Operational modes: Built-in programs, Sound mode, Static Color mode, Auto Run, RGBA Dimmer mode, & DMX mode

Electrical

Jump to...
  • Power Draw

    35W

  • Multi-Voltage Operation

    100-240V, 50/60Hz

Physical

Jump to...
  • Color

    Metal Black Housing

  • Dimensions (L x W x H)

    16.73" x 3.2" x 10.75" (425 x 82 x 275mm)

  • Weight

    7.8 lbs (3.5kg)

About American DJ Profile Panel RGBA

Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, locking power In/Out connections to daisy chain power and a lighting shaping filter slot.

The ADJ Profile Panel RGBA is a compact indoor LED Color Panel powered by 288 10mm red, green, blue and amber LEDs. It may be used as a standard wash fixture, or run it in its built-in programs or sound active mode to create exciting multi-colored lightshows. With four DMX channel modes and six operational modes users get an unprecedented variety of control over the fixture The Profile Panel RGBA has built in programs, sound mode, primary / secondary mode and a DMX mode.

The Profile Panel RGBA produces a 30-degree beam. A wider wash may be achieved by adding a light shaping filter into the slit on the side of the panel. It comes with a locking power cord, UC IR wireless remote and Airstream IR sensor inside the box. Being lightweight and compact in size, this fixture may be set it up anywhere indoors, the dual scissor yoke let you hang the fixture on truss or mount it on a wall. With extremely long life LEDs, low power consumption, and very low heat output, this fixture can all night with no duty cycle - plus little to no heat is emitted onto performers. Great for small performance stages, permanent installations or mobile entertainers.

What makes the Profile Panel RGBA better than the Profile Panel RGB?
• Brighter: Uses 10mm LEDs vs. 5mm LEDs
• More Colors: Uses RGBA (Red, Green, Blue & Amber) LEDs vs. RGB only
• Locking Power Connections: Users can now daisy chain the power from one fixture to the next using the upgraded locking power In/Out connections vs. just an IEC input
• Remote Included: Includes the UC IR wireless remote control vs. optional wired remote

American DJ Profile Panel RGBA Features

  • 288 Ultra Bright LEDs
  • Multi-Colors
  • Color Strobe
  • Electronic Dimming 0-100%
  • Built in Microphone
  • DMX-512 protocol
  • 4 DMX Channel Modes: 4, 7, 9, & 32 DMX Channels
  • Multiple Unit Power Linking

Key Features

  • 288 Ultra Bright LEDs
  • Multi-Colors
  • Color Strobe
  • Electronic Dimming 0-100%
  • Built in Microphone
  • DMX-512 protocol

What's in the box:

  • American DJ Profile Panel RGBA Compact Indoor RGBA LED Panel
  • UC IR Wireless Remote Control
  • Airstream IR App Transmitter
  • Locking Power to Edison Cord
  • American DJ 2 Year Limited Warranty
