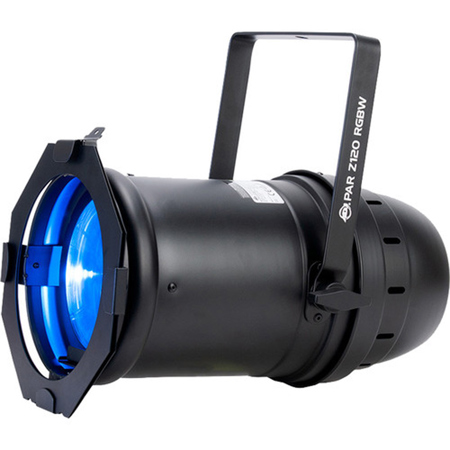

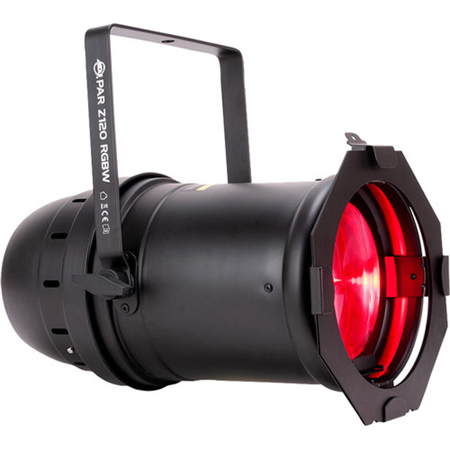

American DJ Par Z120 RGBW 115W Quad RGBW COB LED Par Can

SKU: ADJPZ120RGBW MFR: PAR Z120 RGBW
Earn VIP Reward Points

Key Features

  • Create vibrant washes with the Par Z120 RGBW's quad RGBW COB LEDs for stunning stage lighting.
  • Achieve precise control with multiple DMX channel modes, tailoring your light shows effortlessly.
  • Enjoy flicker-free operation thanks to electronic dimming from 0-100% on this reliable Par Can.
  • Easily link up to 14 units at 120V with powerCON connectors for large-scale lighting setups.
  • The Par Z120's manual zoom (7-25°) and color macros offer versatile, dynamic lighting effects.
  • Benefit from a long-lasting light source, rated for 50,000 hours, reducing maintenance on your PAR.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American DJ Par Z120 RGBW Specifications

Light
  • Lighting Type

    Effects / PAR

  • Light Source

    1 x Color LED (COB) - 115 W

  • Light Source Life Expectancy

    50,000 Hours

  • Colors

    Red
    Green
    Blue
    White

  • Beam Angle

    7 to 25 Degree

  • Shutter/Strobe

    Electronic

  • Iris

    No

  • Zoom Adjustment

    Manual

  • Dimming

    Electronic, 0 to 100% with 5 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    DMX

  • Macros/Programs

    64x Color Macro

  • Effects

    Strobe

Control

Jump to...
  • Control Protocols

    DMX512

  • DMX Channel Modes

    6 Mode(s): 4 / 5 / 6 / 7 / 8 / 9-Channel

  • Display/Controls

    LED / 4-Button

Connectivity

Jump to...
  • I/O

    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1 x powerCON
    Output: 1 x powerCON

  • Fuse

    3.15 A

  • Power/Current Consumption

    107 W (Max)

  • Power Linking

    14 Units at 120 VAC
    27 Units at 230 VAC

Environmental

Jump to...
  • IP Rating

    IP20

Physical

Jump to...
  • Mounting

    Single Yoke

  • Exterior Color

    Black

  • Cooling

    Fan

  • Dimensions

    19.5 x 11 x 9" (495.3 x 279.4 x 228.6mm)

  • Weight

    8.5 lbs (3.9kg)

  • UPC Code

    818651025156

About American DJ Par Z120 RGBW

The Par Z120 RGBW is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 115W quad C.O.B. LED (Chip On Board) LED with red, green, blue & white colors. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. Locking power In/Out connections allow for the fixture to be daisy chained, while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options.

The Par Z120 RGBW allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won't get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

American DJ Par Z120 RGBW Features

  • Beam angle: 7 Degree /11.5 Degree /16 Degree /20.5 Degree /25 Degree (manual adjustment)
  • 6 DMX Channels (4/5/6/7/8/9 Ch. Modes)
  • 4-button DMX menu display on rear panel
  • Adjustable latch to manually change beam angle
  • Gel frame for diffusion filters
  • Flicker Free Operation
  • Electronic Dimming: 0 - 100% with 6 dimming curves
  • Run all night - No duty cycle

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Create vibrant washes with the Par Z120 RGBW's quad RGBW COB LEDs for stunning stage lighting.
  • Achieve precise control with multiple DMX channel modes, tailoring your light shows effortlessly.
  • Enjoy flicker-free operation thanks to electronic dimming from 0-100% on this reliable Par Can.
  • Easily link up to 14 units at 120V with powerCON connectors for large-scale lighting setups.
  • The Par Z120's manual zoom (7-25°) and color macros offer versatile, dynamic lighting effects.
  • Benefit from a long-lasting light source, rated for 50,000 hours, reducing maintenance on your PAR.

What's in the box:

  • American DJ Par Z120 RGBW 115W Quad RGBW COB LED Par Can
  • Gel Frame
  • powerCon Power Cable
  • American DJ 2 Year Limited Warranty
