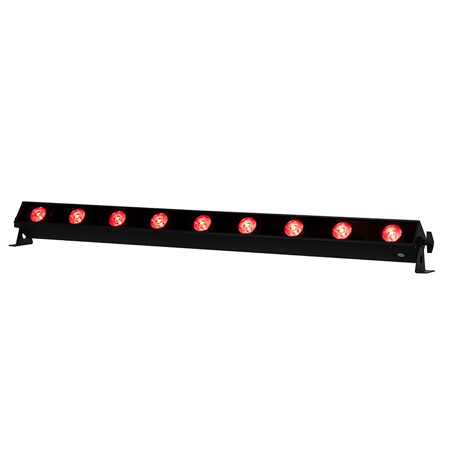

American DJ UBL9H 42.6" 9x 20W RGBAL+UV Indoor Linear LED Light Bar with Diffusion Filter

SKU: ADJUBL900 MFR: UBL900
Earn VIP Reward Points

Key Features

  • Create vibrant washes with the UBL9H's RGBAL+UV LEDs, perfect for uplighting.
  • Achieve smooth color mixing with the linear LED light bar, offering a wide spectrum.
  • Easily control the UBL9H via DMX for synchronized light shows at any event.
  • Enjoy flicker-free operation with a 1.9 kHz refresh rate, ideal for video recording.
  • Use the included IR remote for simple control of static colors & auto programs.
  • Set the mood with 64 built-in color macros for quick and stunning visual effects.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American DJ UBL9H Specifications

Light
  • Fixture Type

    Linear/Bar Light

  • Light Source

    9x Color/UV LED - 20 W

  • Expected Lamp Life

    50,000 Hours

  • Colors

    Blue, Green, Lime, Red, Ultraviolet

  • Pixel Configuration

    3x Zone

  • Color Temperature

    2300 to 9900K

  • Beam Angle

    17 Degree
    20 Degree (with Filter)

  • Shutter / Strobe

    Electronic

  • Dimming

    Electronic, 0 to 100% with 6 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    Automatic, Program, Sound-Active, Static Color

  • Macros / Programs

    64x Color Macro

  • Effects

    Strobe

  • Gobos

    No

  • Refresh Rate

    1.9 kHz

Control

Jump to...
  • Control Protocols

    DMX512, Internal

  • DMX Channel Modes

    7 Mode(s): 6 / 11 / 13 / 16 / 18 / 25 / 28-Channel

  • Display / Controls

    OLED / 4-Button

  • Remote Control

    IR Remote (with Included Equipment)

  • Mobile App Compatible

    No

Connectivity

Jump to...
  • Inputs/Outputs

    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • Wireless

    No

  • Wireless Range

    32.8' (10m) (with Optional Equipment)

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON
    Output: 1x powerCON
    Plug Type: NEMA 5-15
    Cord Length: 6' (1.83m)

  • Power / Current Consumption

    54 W

  • Power Linking

    22 Units at 120 VAC
    40 Units at 230 VAC

Environmental

Jump to...
  • Environmental Protection

    No

Physical

Jump to...
  • Exterior Color

    Black

  • Mounting

    Mounting Bracket

  • Duty Cycle

    No

  • Certifications

    CE, cETLus, FCC

  • Dimensions

    42.6 x 4.2 x 2.96" (1082 x 106.7 x 75.18mm)

  • Weight

    7.2 lbs (3.3kg)

  • UPC Code

    810087371920

About American DJ UBL9H

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL9H incorporates a lime-infused HEX LED with nine (9) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

The ADJ Lighting UBL9H, from the unrivaled Ultra Series, is a professional-grade lime-infused 1-meter HEX LED linear fixture that sets a new standard in event lighting. Powered by nine ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), this fixture is a versatile powerhouse that seamlessly blends color with precision.

The UBL9H takes linear wash lighting to the next level with its high CRI output and linear color temperature control, ranging from 2,300K to 9,900K. The added lime chip enhances color indexing, ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls, floors, and ceilings.

Featuring a 17 Degree beam angle and a pixel pitch of 85.5mm, the UBL12H offers smooth RGBAL+UV color mixing and a unique Horizontal Magnetic Alignment feature allows for seamless color output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons, offering linear color temperature control and compatibility with the ADJ UC-IR24 remote. The UBL9H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixtures is RDM compatible.

With an array of features such as LED refresh rate of 1.9KHz, 64 built-in Color Macros, and selectable Dim Modes and Curves, the UBL9H provides unmatched flexibility. Linkable via DMX, this fixture supports daisy-chaining power for up to 22 units (120V) or 40 units (220V). Designed for reliability, the UBL9H is cETLus, CE, FCC certified, and has an IP20 rating.

The UBL9H comes complete with an indoor locking power cord, UC-IR24 remote, and a 20 Degree diffusion filter. Expand the beam angle to 1x40-degrees with the UBL912 linear diffusion lens kit (sold separately). Mount it on the ground or truss with the included brackets. Elevate your lighting experience with the ADJ Lighting UBL12H, where innovation meets versatility for unforgettable visual displays.

American DJ UBL9H Features

  • Linear Color Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV color mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8' (10m)
  • RDM Compatible

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Key Features

  • Create vibrant washes with the UBL9H's RGBAL+UV LEDs, perfect for uplighting.
  • Achieve smooth color mixing with the linear LED light bar, offering a wide spectrum.
  • Easily control the UBL9H via DMX for synchronized light shows at any event.
  • Enjoy flicker-free operation with a 1.9 kHz refresh rate, ideal for video recording.
  • Use the included IR remote for simple control of static colors & auto programs.
  • Set the mood with 64 built-in color macros for quick and stunning visual effects.

What's in the box:

  • American DJ UBL9H 42.6" 9x 20W RGBAL+UV Indoor Linear LED Light Bar
  • Indoor Locking Power Cord
  • UC-IR24 Remote
  • 20 Degree Diffusion Filter
  • 2x Mounting Brackets
  • American DJ 2 Year Limited Warranty
