What is the lifespan of the Osram Sirius HRI 1R discharge lamp in the Vizio Beam RXONE 100W Compact LED Moving Head Light?

The Osram Sirius HRI 1R discharge lamp in the Vizio Beam RXONE has a long lifespan of 6000 hours.

What is the beam range of the Vizio Beam RXONE 100W Compact LED Moving Head Light?

The Vizio Beam RXONE 100W Compact LED Moving Head Light produces a 3-degree beam of light that can reach up to 100 meters.

What are the DMX modes available on the Vizio Beam RXONE 100W Compact LED Moving Head Light?

The Vizio Beam RXONE offers two DMX modes, which are the 15 or 17 channel mode.

Does the Vizio Beam RXONE 100W Compact LED Moving Head Light come with a case for transport and storage?

Yes, up to four Vizio Beam RXONE fixtures can be securely housed in the ADJ QRC-FS3Z road case, and two units fit in the ADJ DRC MH road case.

What is the power consumption of the Vizio Beam RXONE 100W Compact LED Moving Head Light?

Despite its powerful performance, the Vizio Beam RXONE is energy-efficient, consuming only 199W at max power.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ Vizio Beam RXONE Specifications

  • Light Source

    Osram SIRIUS HRI 100 W, 9000K

  • Life Expectancy

    6,000 hours

  • Beam Angle

    Beam: 3 Degree
    Wash: 21 Degree (frost filter on)
    Auto X/Y repositioning

  • Illuminance

    99,250 lux @ 33'.0 (10.0m)
    70,030 lux @ 50.0' (15.0m)

  • Color Wheel

    14 x colors; plus white and split

  • Gobos

    15 x static/fixed gobos + spot
    Effects: Shake

  • Prism

    16-facet prism with macros

  • Pan/Tilt

    Pan: 360 Degree
    Tilt: 270 Degree
    Inversion Mode: Yes
    Macros: Yes

  • Movement Resolution

    16-bit

  • Electronic Dimming

    0-100%
    Effects: pulse, strobe, random strobe

  • Operation Modes

    DMX, standalone, sound active, auto program

  • DMX Connectors

    Input: XLR 3-pin
    Output: XLR 3-pin

  • DMX Channel Modes

    2x Modes: 15 and 17 channels

  • Wireless Control

    UC IR Remote (available separately)
    Airstream IR App (free download, requires additional hardware)

  • Power Requirements

    100 to 240 VAC, 50/60 Hz (auto-sensing)

  • Power Connectors

    Input: powerCON
    Output: powerCON

  • Power Linking

    Up to 8 units @ 120 V
    Up to 16 units @ 230 V

  • Power Consumption

    199 W

  • Cooling

    Fan cooled

  • Fuse

    5 A

  • Dimensions

    9.0 x 11.0 x 15.25" (22.5 x 27.9 x 38.7cm)

  • Weight

    20 lbs (9.2kg)

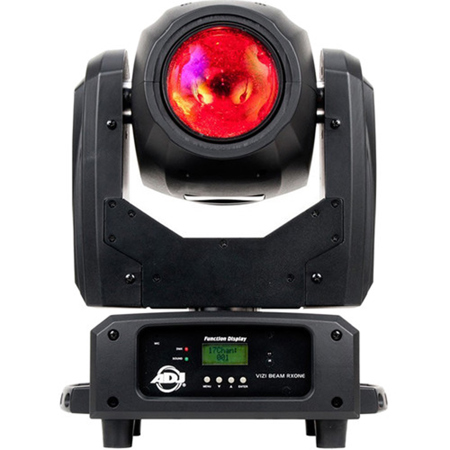

About American DJ Vizio Beam RXONE

The Vizio Beam RXONE 100W Compact LED Moving Head Light, a standout product in ADJ's esteemed Vizio Series, is a versatile and innovative lighting solution designed for both portable and permanent applications. This compact, high-quality moving head light is powered by a durable Osram Sirius HRI 1R discharge lamp, renowned for its long lifespan of 6000 hours. The RXONE projects a razor-sharp 3-degree beam of light that can reach distances up to 100 meters, making it an ideal choice for stage or event lighting.

This reliable lighting fixture is not just about power; it's also about precision and versatility. It features a 16-bit resolution, ensuring smooth and accurate movements. The included frost filter transforms the focused beam into a 21-degree wash effect, adding versatility to your lighting design.

The Vizio Beam RXONE is also equipped with a 16-facet prism, which splits the solid beam into 16 mini beams for a stunning visual effect. With 14 color options plus white, and 15 static, fixed GOBOs, you can create a wide array of lighting atmospheres to suit any event or performance.

The RXONE offers two DMX modes (15 or 17 channel mode), providing you with complete control over your lighting setup. It features 3-pin DMX In/Out and Locking power In/Out connections for easy setup and secure operation. Despite its powerful performance, the RXONE is energy-efficient, consuming only 199W at max power.

For the convenience of transport and storage, up to four Vizio Beam RXONE fixtures can be securely housed in the ADJ QRC-FS3Z road case, while two units fit perfectly in the ADJ DRC MH road case. Choose the Vizio Beam RXONE 100W Compact LED Moving Head Light for a durable, high-quality, and versatile lighting solution.

American DJ Vizio Beam RXONE Features

  • Osram Sirius HRI 100W 1R Discharge Lamp
  • Micro-Stepping Motors for Smooth Color and Gobo Transitions
  • DMX-512 Protocol Compatible (2 DMX Modes: 15 Channels & 17 Channels)
  • 3-Pin XLR In/Out
  • Independent Gobo and Color Wheels
  • 15 Static Fixed Gobos + Spot
  • 14 Colors, Plus White and Split Colors
  • 16 Facet Prism with Rotation
  • Frost Filter
  • Strobe Effect
  • 3 Degree Beam Angle
  • 540 Degree Pan Movement
  • 270 Degree Tilt Movement
  • Pan/Tilt Invert
  • Pan/Tilt Speed Adjustment
  • Digital Display for Address and Function Setting
  • Power Cord Daisy Chain

Key Features

  • Compact LED Moving Head Light with a long-life Osram Sirius HRI 1R discharge lamp
  • Produces a super sharp 3-degree beam that reaches up to 100 meters
  • Includes a frost filter for a versatile 21-degree wash effect
  • Features a 16-facet prism for captivating multi-beam effects
  • Offers 14 color options plus white, and 15 static, fixed GOBOs for creative lighting designs
  • Energy-efficient with a low power consumption of only 199W at full intensity

What's in the box:

  • American DJ Vizio Beam RXONE 100W Compact LED Moving Head Light
  • American DJ 1 Year Limited Warranty
