What is the zoom range of the Vizio CMY300 300W Hybrid Cool White LED Moving Head Light?

The Vizio CMY300 has an expansive zoom range of 8 to 46-degrees, allowing for maximum lighting effects from a single fixture.

Does the Vizio CMY300 offer wireless control?

Yes, the Vizio CMY300 is equipped with ADJ's WiFLY EXR wireless DMX, which has a built-in antenna that transmits a signal up to 2500 feet or 700M (line of sight).

Can I create custom colors with the Vizio CMY300?

Absolutely, the Vizio CMY300 features CMY color mixing, enabling designers to create custom colors for a unique and captivating light show.

What are the GOBO wheels on the Vizio CMY300?

The Vizio CMY300 has two GOBO wheels. One wheel has fixed metal GOBOs and the other wheel has rotating/replaceable GOBOs. These provide additional versatility and creative possibilities for your lighting design.

Is the Vizio CMY300 easy to service and maintain?

Yes, the Vizio CMY300 has a modular design, making servicing and GOBO replacement simpler than ever before.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ Vizio CMY300 Specifications

  • Light Source

    300 W cool white LED engine
    UV Range: 399 to 435 nm
    50,000 hours life expectancy

  • Color

    Color Wheel: 9 colors + open (including: CTO 3200K and UV)
    Full CMY color mixing

  • Gobos

    Gobo Wheel 1
    8 fixed gobos + open (1 beam reducers in beam mode)

    Gobo Wheel 2
    6 rotating/replaceable gobos + open
    Size: 1.1" (26.8mm)
    Viewable: 0.8" (20.0mm)

    Modular design

  • Effects

    Zoom Range: 8 to 46 Degree , motorized
    Iris: 5 to 100%, motorized
    Focus: Motorized
    Frost effect
    Prism 1: Rotating 3-facet, circular
    Prism 2: Rotating 6-facet, linear rotating
    Prism layering
    Pan/Tilt Correction: Automatic
    Pan/tilt lock
    Pan/Tilt Range: 540 Degree / 270 Degree
    Fine tilt
    Pan/Tilt Speed: Fast to slow
    Dimming & Fine Dimming: Electronic

  • Operating Modes

    DMX
    Master/Slave
    Standalone

  • DMX Interface

    DMX Modes: 21, 24, or 26 channels
    Connectors: 3-pin and 5-pin I/O
    Built-in WiFly EXR wireless DMX (up to 2500' / 762 m, line of sight)

  • Display/Controls

    Full color display menu

  • USB Port

    USB port for firmware update

  • Power Connections

    Power Input: Heatronic powerCON
    Power Pass-Through: Heatronic powerCON, at 120 V or 220 V

  • Power Linking

    4 fixtures at 120 V
    8 fixtures at 230 V

  • Input Voltage

    100-240 V, 50/60 Hz (auto-sensing)

  • Power Draw

    398 W
    3.31 A at 120 V
    1.8 A at 220 V

  • Fuse

    10 A

  • Dimensions

    14.50 x 12.75 x 24.50" (368.30 x 323.85 x 622.30mm)

  • Weight

    51 lbs (23kg)

About American DJ Vizio CMY300

For professional stage and event lighting, the Vizio CMY300 300W Hybrid Cool White LED Moving Head Light stands out as a versatile, high-quality solution. Engineered by the reputable American DJ brand, this powerful lighting fixture is designed to deliver a massive output, making it ideal for large venues and event productions.

The Vizio CMY300 is more than just a moving head light; it's a hybrid utility fixture that combines the functionality of a beam, spot, and wash light all in one. Its expansive zoom range of 8 to 46-degrees allows lighting designers to achieve maximum effects from a single fixture, reducing the need for multiple fixtures and saving valuable space on stage or in transport.

This LED moving head light features CMY color mixing, enabling designers to create custom colors for a unique and captivating light show. It also boasts two GOBO wheels, one with fixed metal and the other with rotating/replaceable GOBOs, enhancing the versatility and creative possibilities of this fixture.

Equipped with ADJ's WiFLY EXR wireless DMX, the Vizio CMY300 has a built-in antenna that transmits a signal up to 2500 feet or 700M (line of sight), offering reliable, wireless control. The fixture also includes motorized focus and zoom, two rotating prisms (one 6-facet linear & one 3-facet circular), and a full color function display on the front panel for easy operation.

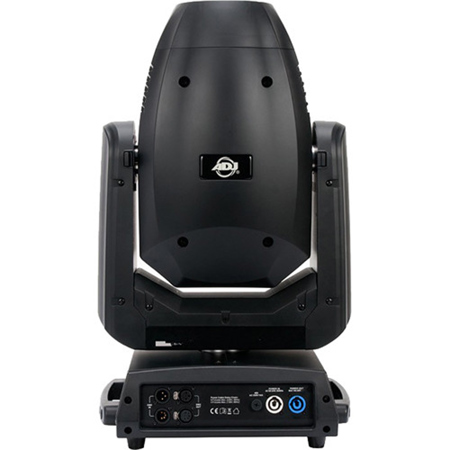

The rear panel provides locking power In/Out connections and 3-pin & 5-pin DMX connections for seamless integration into any lighting setup. With a modular design, the Vizio CMY300 makes servicing and GOBO replacement simpler than ever before. Despite its powerful capabilities, this moving head light maintains a smaller footprint than most other movers in its class, making it a compact yet potent addition to any lighting arsenal. The Vizio CMY300 is also compatible with the ADJ DRC MHX road case for secure transport and storage.

American DJ Vizio CMY300 Features

  • 300W Cool White LED Engine 50,000 Hour Average LED Life
  • Color Wheel: 9 + Open (Including: CTO 3200K & UV) Full CMY Color Mixing
  • GOBO Wheel 1: 8 Fixed + Open (1 Beam Reducers Beam Mode) GOBO Wheel 2: 6 Rotating/Replaceable + Open (Size: 26.8mm; Viewable: 20mm)
  • Zoom Range: 8 - 46-degrees Iris: Motorized 5-100% Focus: Motorized Frost effect
  • Prism 1: Rotating 3-facet Circular Prism 2: Rotating 6-facet Linear Rotating Prism Layering
  • Power Input: powerCON Power Pass through: powerCON @120V or 220V USB firmware update port
  • Built-in WiFLY EXR wireless DMX (up to 2500'/ 700m line of sight)

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Key Features

  • Powerful 300W Hybrid Cool White LED Moving Head Light by American DJ
  • Versatile hybrid utility fixture with beam, spot, and wash capabilities
  • Expansive zoom range of 8 to 46-degrees for maximum lighting effects
  • CMY color mixing and two GOBO wheels for custom colors and effects
  • Wireless control with built-in ADJ's WiFLY EXR wireless DMX, transmitting up to 2500 feet / 700M
  • Modular design for easy servicing and GOBO replacement, compatible with ADJ DRC MHX road case

What's in the box:

  • American DJ Vizio CMY300 300W Hybrid Cool White LED Moving Head Light
  • Heatronic powerCON Power Cord
  • American DJ 2 Year Limited Warranty
