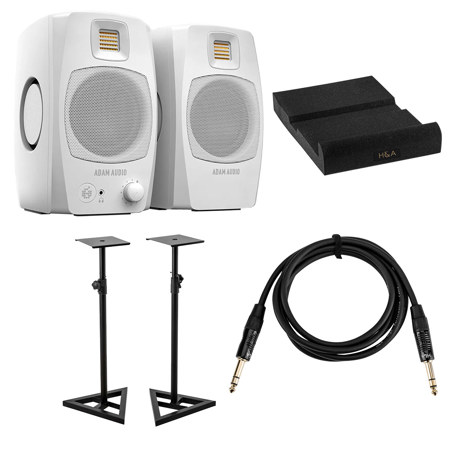

PACKAGE INCLUDES:



See Options
Need help? Ask our experts.
Review Summary
48-22.6kHz
45-23.2kHz
92/96 dB SPL at 3.28' (1m) with sine bursts (average 100-6kHz) at 3% THD (rms/peak)
4.0kHz
2x 3.5" (88.9mm)
Single-piece aluminum
3.5" (88.9mm)
1" (25mm)
Painted steel
D-ART
4 to 1
2x balanced 1/4" TRS
+9 dBu
USB Type C
Class-compliant USB 1.1
32, 44.1, 48 kHz
24-bit
3.5mm TRS mini-jack
32 Ohms
24-bit
48kHz
28- bit
4.0ms
Independent peak and thermo limiters for each driver, and amplifier thermo limiters
PWM
2x 80W (10% THD, limiter deactivated)
2x 70W (1% THD, limiter deactivated)
PWM
2x 40W (10% THD, limiter deactivated)
2x 30W (1% THD, limiter deactivated
0 dBu = 88 dB SPL at 3.28' (1m) @ 0 dB level setting
The volume knob controls loudspeaker and headphone outputs over the range - Infinite dB to +6 dB
Mute, standby, input select, channel swap
Analogue, USB-C
Normal, L/R swapped
Position (Bass): 0, -3, -6 dB
Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
Room Acoustics (Treble): 0, -1.5, -3 dB
USB-C
Class-compliant USB 1.1
White
Front panel multi-color logo
Dual passive radiator
Painted ABS Polycarbonate
Flat on desk or loudspeaker stand, angled 15 degrees upwards on desk using supplied foot, threaded insert (3/8") on the bottom of the cabinet for microphone stand
100-240V, 50/60Hz
60W max
7.88 x 9.5 x 4.5" (20.01 x 24.1 x 11.4cm)
Left Speaker: 4.06 lbs (1.84kg)
Right Speaker: 3.81 lbs (1.72kg)
192223289055, 4260113135341, 192223145986, 192223145993, 192223075948
Studio Sound. Desktop Size.
Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.
The D3V is a fully active desktop monitoring system that stays true to ADAM Audio's industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5" aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5" passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.
Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points (3/8") for perfect positioning in any environment.
Future Proof Innovations
Explore the technology
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the D3V.
D-ART 1.5" Hand-Folded Tweeter
The D3V utilizes a 1.5" D-ART tweeter so that customers can enjoy precise and unfatiguing high frequency reproduction.
USB-C & Balanced Analog Inputs
The D3V offers a direct plug 'n' play USB-C connection to computers, mobiles, and tablets. Traditional 1/4" TRS inputs are also included.
DSP Room Adaption
The D3V features DSP-powered 3-way switches to address common acoustical issues arising from speaker placement.
3.5" Woofers & Dual-Sided Passive Radiators
Partnering with the D-ART system, the D3V utilizes 3.5" woofers, a ferrite magnet system and passive radiators for the low frequencies.
One Button Control
The D3V's multi-function volume control allows users to quickly access the common functions that make life that little bit easier.
Monitor Stands & Mounting Options
Detachable feet are included as standard, plus users will find a 3/8" mic stand mounting point on the underside.
