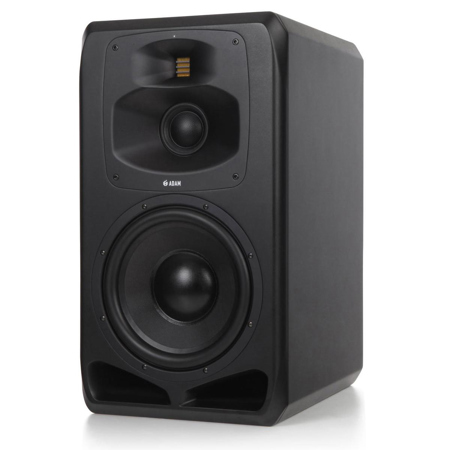

Adam Audio S5V 3-Way Main/Midfield Monitor with 12" Woofer, 650W Maximum Power, Single

Designed for medium-sized and larger studio control rooms, the S5V main monitor offers all the raw power studio professionals would expect from a reference speaker of its class, but also reproduces full-bandwidth, high-resolution audio with complete accuracy and clarity.

• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 4" Dome / Cone Hybrid (Carbon Composite) with MPS Waveguide
• 12" Woofer (Hexacone)
• Cumulated Amp. Power RMS: 1100 W
• Frequency Response: 26 Hz - 50 kHz
• Max. SPL Per Pair at 1 m: >=128 dB
• AES3 Digital Inputs And Various Expansion Options
• S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances in ADAM Audio's history
• The air velocity ratio of 4:1 during the sound generation by folded S-ART membrane
• Newly designed HPS and MPS waveguides, milled from a solid block of aluminum
• New midrange driver with one-piece hybrid dome/cone (DCH) design
• Custom-built Extended Linear Excursion (ELE) bass drivers
• Custom-designed Symmetrical Magnet Assembly (SMA)
• Vertical 3-way system with 1 x 12" woofer and 1 x 4" DCH midrange
• Spacious bass reflex ports on the front
• Highly efficient PWM ICE Power amplifiers
• Linear frequency response of 26 Hz to 50 kHz
• Maximum peak sound pressure per pair in 1 m >= 128 dB
• Custom DSP engine
• Analog XLR input
• Acoustically optimized and weightily constructed cabinets

ADAM Audio's Extended Linear Excursion (ELE) bass drivers and Symmetrical Magnet Assembly (SMA) technology were developed especially for the S Series and the 12-inch bass driver on the S5V benefits from both concepts, offering a quality of reproduction without equal in terms of accuracy, dynamic range and freedom from coloration. The 4-inch DCH MF driver, with its unique hybrid dome/cone construction, handles the important mid-range information with extreme precision, while ADAM Audio's S-ART folded-ribbon tweeter, handmade in Berlin to the tightest possible tolerances, produces breathtaking highs and ensures the sound field is presented in all of its most delicate, filigree detail.

The off-axis responses of the treble and mid drivers remain extremely accurate thanks to the addition of high- and mid-frequency waveguides milled from solid aluminum: ADAM Audio's newly developed Mid-range and High-frequency Propagation Systems (MPS and HPS). The resultant stable, wide-ranging dispersion ensures that teams of more than one person can work in the loudspeakers' sweet spot simultaneously, as is often necessary in larger control rooms.

The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.

A Class D 700 W amplifier drives the S5V's bass unit, with further Class D designs providing 300 W and 100W to the DCH mid and S-ART treble drivers respectively. Combining the legendary precision of ADAM Audio's proprietary drivers with the power of the company's amplification, the S5V is a reference monitor for truly discerning audio professionals at work in the most expansive listening environments.

Benefits
• Allows longer operation with fewer signs of fatigue
• Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
• Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
• Direct, fast response in the high-range even with complex transients
• Makes dispersion more consistent and imaging more stable over a wider area
• Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.
• Offering the sonic advantages of both driver types, with minimal partial resonances
• Partly responsible for the excellent mid-range dispersion characteristics of the S Series, due to improved integration with the treble driver
• Accurate audio reproduction at an extremely high resolution thanks to the precision-designed relationship between its low weight, optimized inner damping and highly rigid HexaCone membrane, in conjunction with a basket which has been developed to eliminate unwanted resonance and distortion
• Allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, symmetrical magnetic field ensuring linear, low-distortion operation
• Power compression effects are prevented by an intelligent self-cooling system
• Very high resolution of the stereo image and extremely wide stereo base
• Bass reproduction with very low compression
• Allows positioning close to walls
• Low-distortion amplification at both low and high volume levels
• Unbiased reproduction in a wide frequency band
• Powerful, compression-free sound reproduction even at very high sound levels
• Perfect crossovers for optimal frequency response and maximum dynamic range
• EQ options and presets for in-room optimization
• Limiter-based amp protection, AES3 digital inputs and board connectors for future expansion options, together with a USB connector for software upgrades and computer-based control
• Optimized for balanced line signals
• Reduction of susceptibility to vibrations and unwanted edge-diffraction effect
