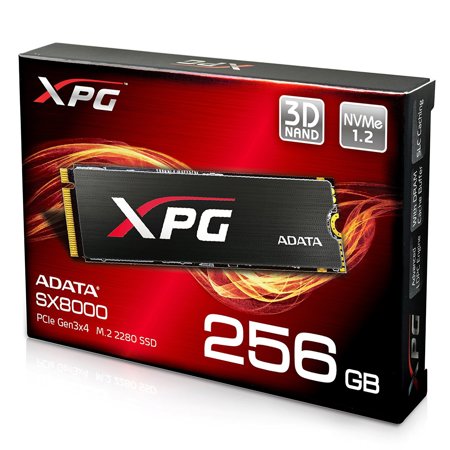

ADATA XPG SX8000 PCIe Gen3x4 M.2 2280 256GB Internal Solid State Drive with Heatsink, Up to 2000MB/s CDM Read and 1100MB/s CDM Write Speed

SKU: ADSXSSD265GB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ADATA SX8000 Specifications

  • Capacity

    256GB

  • Controller

    SMI 2260

  • NAND Flash

    3D MLC

  • Interface

    PCIe Gen3x4

  • ATTO Seq. Read Speed

    Up to 1900 MB/s

  • ATTO Seq. Write Speed

    Up to 1100 MB/s

  • CDM (QD32) Seq. Read Speed

    Up to 2000 MB/s

  • CDM (QD32) Seq. Write Speed

    Up to 1100 MB/s

  • AS SSD Seq. Read Speed

    Up to 1400 MB/s

  • AS SSD Seq. Write Speed

    Up to 1000 MB/s

  • 4K Random Read IOPS

    85K

  • 4K Random Write IOPS

    140K

  • TBW

    160TB

  • Form Factor

    M.2 2280

  • MTBF

    2,000,000 hours

  • Power Consumption

    0.33W Active (Typical), 0.14W Slumber (Typical)

  • Operating temperature

    0 to 70 deg. C (32 to 158 deg. F)

  • Storage temperature

    -40 to 85 deg. C (-40 to 185 deg. F)

  • Shock resistance

    1500G/0.5ms

  • Certifications

    RoHS, CE, FCC, BSMI, VCCI, KC

  • Dimensions (LxWxH)

    22 x 80 x 3.5mm (0.87 x 3.15 x 0.14")

  • Weight

    8g (0.28 oz)

  • UPC Code

    4712366962484

About ADATA SX8000

The first M.2 2280 SSD from XPG, the SX8000 delivers massive speed for gaming notebooks and high-end desktops. Utilizing the super-fast PCIe Gen3x4 interface, outperforming SATA 6Gb/s by a huge margin - several times over, in fact! NVMe 1.2 qualified, the SX8000 delivers superior random read/write performance and multi-tasking capabilities. It implements 3D NAND Flash, which provides higher storage density and reliability compared to 2D NAND. With support for SLC Caching, DRAM Cache Buffer and LDPC ECC technologies, the SX8000 maintains optimized performance and data integrity during even the most intense gaming, rendering, overclocking or other high-demand applications.

ADATA SX8000 Features

  • Ultra-fast PCIe Gen3x4 interface
  • NVMe 1.2 certified
  • 3D MLC NAND Flash
  • Advanced LDPC ECC technology
  • Intelligent SLC caching and DRAM cache buffer
  • RAID Engine and Data Shaping
  • Compact M.2 2280 form factor - ideal for gaming notebooks and high-end desktops

What's in the box:

  • AData XPG SX8000 PCIe Gen3x4 M.2 2280 256GB Internal Solid State Drive with Heatsink
  • AData 5 Year Warranty
