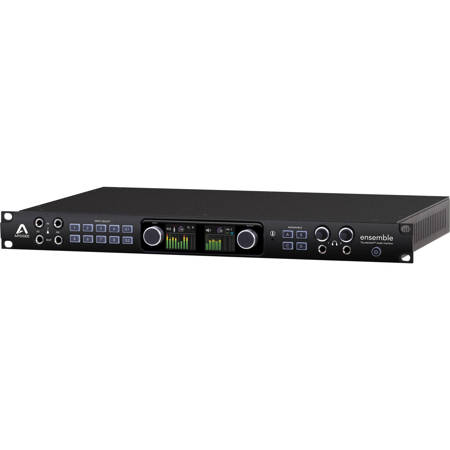

Apogee Electronics Ensemble 30 x 34 Thunderbolt Audio Interface
See all Apogee Electronics items

Apogee Electronics Ensemble 30x34 Thunderbolt Audio Interface for Mac

SKU: AEENSEMBLETH

This item is no longer available.

Recommended Alternatives

Apogee Electronics 16x16 SE: Picture 1 regular
Apogee Electronics 16x16 SE Analog Input/Output Module for Symphony I/O Mk II
$2,870.00
Apogee Electronics Symphony Dante Chassis: Picture 1 regular
Apogee Electronics Symphony I/O MKII Dante Chassis, 2x6 Analog I/O, 8x8 Optical
$6,299.00
Apogee Electronics BOOM: Picture 1 regular
Apogee Electronics BOOM 2x2 Desktop USB Type-C Audio Interface w/Hardware DSP FX
$249.00
Apogee Electronics Symphony I/O MKII Dante: Picture 1 regular
Apogee Electronics Connect Symphony I/O MKII Dante Chassis, Slot Populated
$2,899.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Apogee Electronics Ensemble 30 x 34 Thunderbolt Audio Interface Specifications

  • System Requirements: Mac OS

    Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro)
    Memory: 4GB RAM minimum, 8GB recommended
    OS: 10.9.3 or greater
    Connection: Any available Thunderbolt port on a Mac

  • Compatible Software

    Any Mac Core Audio compatible application
    Recommended apps: Logic Pro, Pro Tools, GarageBand, MainStage, Final Cut, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo

  • Analog Inputs

    4 Combi mic/line/instrument inputs
    2x 1/4"balanced analog inserts
    4 XLR mic/line inputs
    2x 1/4"hi-z guitar/instrument inputs with Class-A JFET input stage

  • Digital Inputs

    Optical IN: Supports ADAT, SMUX & S/PDIF
    ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
    Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
    Word clock input on BNC connector

  • Built-in Microphone

    Mono omnidirectional condenser capsule on front panel

  • Mic Preamps

    8 Mic preamps
    Gain: Up to 75 dB and advanced stepped gain circuit design
    Selectable 48v phantom power, hi-pass filter, Soft Limit and polarity invert
    EIN: 129dB (un-weighted) at 60dB, 150Ohms input
    Max input level: +20dBu
    Input impedance: 3kOhms

  • Hi-Z

    Max input level 14 dBu
    Input impedance: >2MOhms

  • Analog Outputs

    2 1/4"balanced monitor outputs
    8 balanced outputs on 1 DSUB 25-pin connector
    2 independent 1/4"stereo headphone outputs
    2 1/4"dual-mode guitar/instrument outputs

  • Digital Outputs

    Optical OUT: Supports ADAT, SMUX & S/PDIF
    ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
    Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
    Word clock output on BNC connector

  • A/D conversion: Max input level

    +20dBu (+4dBu ref/Mic)
    +6dBV (-10dBV ref)

  • A/D conversion: Input impedance

    5kOhms

  • A/D conversion: Frequency response

    10Hz -20KHz: > +/-0.2dB (at 44.1KHz)

  • A/D conversion: Rel. THD + N

    -110dB (at 96KHz)

  • A/D conversion: Dynamic Range

    119dB (A-weighted)

  • D/A conversion: Max output level

    (+4dBu ref): +20dBu
    (-10dBV ref): +6dBV

  • D/A conversion: Line output impedance

    90Ohms

  • D/A conversion: Frequency response

    10Hz -20KHz: > +/- 0.05dB (at 44.1KHz)

  • D/A conversion: Rel. THD+N

    -114dB (at 96KHz)

  • D/A conversion: Dynamic Range

    123dB (A-weighted)

  • D/A conversion: Guitar Output

    Front panel: Impedance balanced/max level 14 dBu

  • D/A conversion: Headphone output level

    19dBu (Max.)

  • D/A conversion: Headphone Rel THD + N

    Into 600Ohms: -109dB

  • D/A conversion: Headphone Dynamic Range

    120dB (A-weighted)

  • UPC Code

    805676301341

About Apogee Electronics Ensemble 30 x 34 Thunderbolt Audio Interface

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Apogee Electronics Ensemble 30x34 Thunderbolt 2 Audio Interface for Mac
  • 3-pin IEC power cable
  • Rubber feet
  • Quick Start Guide
  • Warranty Booklet
  • Apogee Electronics 1 Year Warranty
