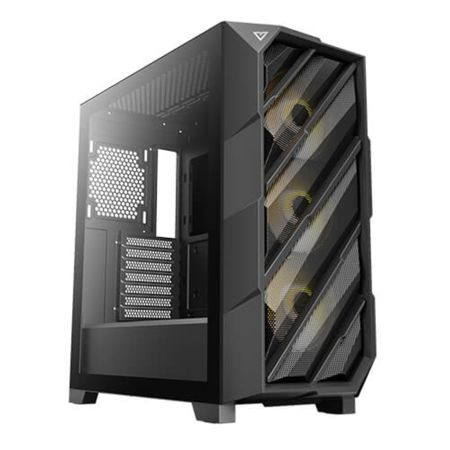

Antec DP503 ARGB Tempered Glass E-ATX Mid-Tower Gaming Computer Case, Black

SKU: AGDP503

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Deepa S : This is what my son chose after doing much research in building his gaming PCAdam C : rated highly by youtube reviewers

Reviews about this item

Review Summary

2023-09-17T06:54:53

Rated 5 out of 5

Good case with built in RGB fan controller

Good case. The 3 RGB fans in the front are beautiful. I have the colors to rainbow so there is a circular rainbow of colors and it slowly spins the colors around. Build was pretty easy - be sure to screw in the extra screws into the case where your motherboard fits into. Also there is a built in fan controller in the case where all the fans that it comes with as well as any extra rgb fans can plug into. I have 2 fans on my phantom assassin cpu cooler and they plug into the controller, so they are in sync. Be sure to plug in the SATA cable which comes out of the fan controller also or else none of the fans will spin. I've had the computer set up and running for a few weeks now and have not seen any dust on the front mesh, so I don't know if the holes are too large that they bring in the dust, or not enough dust has accumulated yet. Three is also a gpu brace so unscrew it and move it lower so that your gpu will rest on it when you put your case upright after assembling.You have to kind of do trial and error to put the small arm in the right position and angle. If you need to pop out your graphics card I found a pencil works great- push the eraser end into the tab that locks the gpu in place.

Adam C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Antec DP503 Specifications

Case
  • Form Factor

    Mid Tower

  • Material

    Steel, Plastic

  • Mainboard Support

    E-ATX, ATX, Micro-ATX, ITX

  • Front Access & Controls

    Power, LED control button, 2x USB 3.0, 1x Type-C 3.2 Gen 2, 1x Mic, 1x HD-Audio

  • Side Panel

    4mm Tempered Glass

Drive Bays

Jump to...
  • Expansion Slots

    7x

  • 3.5" / 2.5"

    2x / 2x

  • 2.5"

    2x

  • Front

    3x 120mm / 3x 140mm / 2x 185mm

  • Top

    3x 120mm / 2x 140mm

  • Power Supply Shroud

    2x 120mm

  • Rear

    1x 120mm

  • Included Fans

    3x 120mm ARGB fans in front

Radiator Support

Jump to...
  • Front

    120 / 140 / 240 / 280 / 360mm

  • Top

    120 / 140 / 240 / 280 / 360mm

  • Rear

    120mm

Clearance

Jump to...
  • Max GPU Length

    <= 375mm

  • Max CPU Cooler Height

    <= 170mm

  • Max PSU Length

    <= 205mm (with HDD)

  • Max PSU Length

    <= 205mm (with HDD)

  • Cable Routing Space

    <= 23mm

Miscellaneous

Jump to...
  • Color

    Black

  • Dust Filter

    Top / Bottom

  • Dimensions (D x W x H)

    19.01 x 8.66 x 19.37" (483 x 220 x 492mm)

  • Weight

    17.37 lbs (7.88kg)

  • UPC Code

    761345810777

About Antec DP503

FEATURED REVIEWS

Good case with built in RGB fan controller

By Adam C.

Good case. The 3 RGB fans in the front are beautiful. I have the colors to rainbow so there is a circular rainbow of colors and it slowly spins the colors around. Build was pretty easy - be sure to screw in the extra screws into the case where your motherboard fits into. Also there is a built in fan controller in the case where all the fans that it comes with as well as any extra rgb fans can plug into. I have 2 fans on my phantom assassin cpu cooler and they plug into the controller, so they...

View full Review

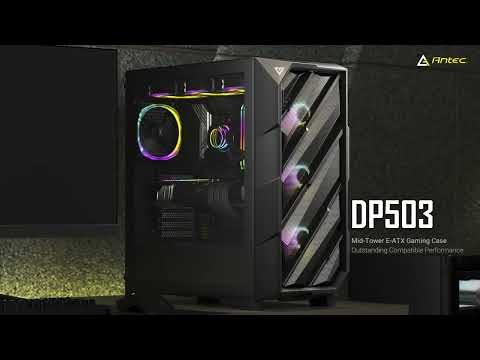

DP503 Mid-Tower E-ATX Gaming Case - Outstanding Compatible Performance

Unlimited Configuration Options - Maximum Expansion Potential
The DP503 gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.

Massive Mesh - High-Airflow Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.

• Massive Mesh Front Panel with Slanted Bar Design
• The Magnetic Dust Filter on the Top
• Pull-Out Dust Filter at the Bottom

Three addressable RGB fans Included
Pre-installed at the front for efficient airflow and customizable RGB lighting.

Built-In Devices ARGB & PWM Control Hub
• The control hub supports up to 6 fans and 6 LED device
• Connect it to your motherboard for 16.8 million possible colors

Cable Management - Building a clean PC is Within easy Reach
Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.

• Cable channels with groove on top for stable routing
• Space for cable management: 23mm
• 8x cable routing grommets included
• 3x Antec logo cable ties

Drive Bays Compatibility - Easy installation

Fits Up To 4 Drive Devices
• Snap-in 2.5" drive device for easy mounting
• Removable hard drive cage
• Tool-free 3.5" drive tray

Cooling Compatibility - 9 fans simultaneously
3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.

Antec DP503 Features

  • High-Speed Transfer - Type-C 3.2 Gen 2 Ready
  • Thoughtful Design - Detailed Features
  • Captive thumb screw
  • 7x full profile & reusable expansion slots
  • Removable GPU Holder, able to be adjusted up, down, left and right
  • Rear-mounted PSU installation
  • 4mm seamless tempered glass side panel
  • The grooves at the bottom can prevent the glass from shattering

Key Features

  • High-Speed Transfer - Type-C 3.2 Gen 2 Ready
  • Thoughtful Design - Detailed Features
  • Captive thumb screw
  • 7x full profile & reusable expansion slots
  • Removable GPU Holder, able to be adjusted up, down, left and right
  • Rear-mounted PSU installation

What's in the box:

  • Antec DP503 ARGB Tempered Glass E-ATX Mid-Tower Gaming Computer Case (Black)
  • Fan & LED Control Hub
  • GPU Holder
  • 8x Cable Routing Grommets
  • 3x Cable Ties
  • Captive Thumb Screws (Side Panels/GPU Holder/PSU Brace)
  • Antec 2 Year Limited Warranty
