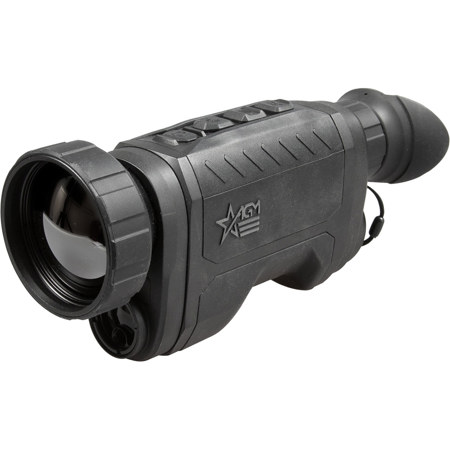

AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder 50mm f/1.0

SKU: AGMIR50640 MFR: REAC50-640-LRF
Earn VIP Reward Points

Key Features

  • Sub-20 millikelvin temperature sensitivity for precise thermal detection
  • Integrated 1,000-meter laser rangefinder for accurate distance measurement
  • Optimized image processing algorithms for highly detailed thermal images
  • Built-in 64 GB memory with video/audio recording and image capture capabilities
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder Specifications

  • Detector Type

    12microm VOx Uncooled Focal Plane Array

  • Resolution

    25mm f/1.0: 384 x 288
    35mm f/1.0: 640 x 512
    50mm f/1.0: 640 x 512

  • Refresh Rate

    50 Hz

  • NETD

    Less than 20 mK (77 Degree F (25 Degree C))

  • Response Waveband

    8 microm to 14 microm

  • Available Lens System

    25mm f/1.0, 35mm f/1.0, 50mm f/1.0

  • Field of View (H x V)

    25mm f/1.0: 10.5 Degree x 7.9 Degree
    35mm f/1.0: 12.5 Degree x 10.0 Degree
    50mm f/1.0: 8.7 Degree x 7.0 Degree

  • Magnification

    25mm f/1.0: 2.5x - 20x
    35mm f/1.0: 2.0x - 16x
    50mm f/1.0: 3.0x - 24x

  • Digital Zoom

    1x, 2x, 4x, 8x

  • Diopter Adjustment

    -5 to +3

  • Detection Range (6' object)

    25mm f/1.0: 1,200 m/yd
    35mm f/1.0: 1,800 m/yd
    50mm f/1.0: 2,600 m/yd

  • Monitor

    1024x768, 0.39", OLED, 50 FPS

  • FFC (Flat Field Correction)

    Auto, Manual, External Correction

  • Palettes

    Black Hot, White Hot, Red Hot, Fusion

  • Highest Temperature Spot Tracking

    Yes

  • Scene

    Mode Jungle, Recognition

  • Distance Measurement

    Laser Rangefinder: up to 1,000 m, +/-1 m accuracy

  • Laser Wavelength

    905 nm

  • Laser Safety Class

    Class 1

  • Hotspot

    Yes

  • Sleep Mode

    Yes

  • Built-in Storage

    64GB EMMC

  • Video/Audio Recording

    Yes / Yes

  • Image Capture

    Yes

  • PIP

    Yes

  • Battery

    One 18650 rechargeable battery (removable)

  • Battery Operating

    Time Up to 4.5 hours continuous running (@25 Degree C, Wi-Fi and LRF off)

  • Battery Capacity

    Display Yes

  • External Power

    5 VDC/2 A, USB Type-C interface. Supports external power supply.

  • Working Temperature

    -30 Degree C to 55 Degree C (-22 Degree F to 131 Degree F)

  • Protection Level

    IP67 (Waterproof)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    18650

  • Battery Quantity

    1

  • Dimensions

    25mm f/1.0: 7.11 x 2.07 x 3.36" (181 x 53 x 85mm)
    35mm f/1.0: 7.28 x 2.09 x 3.46" (185 x 53 x 88mm)
    50mm f/1.0: 7.76 x 2.36 x 3.74" (197 x 60 x 95mm)

  • Weight

    Without batteries:
    25mm f/1.0: 13.61 oz (386g)
    35mm f/1.0: 14.1 oz (400g)
    50mm f/1.0: 15.87 oz (450g)

  • UPC Code

    810027777607

About AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder

Just introduced, the AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder is a premium handheld observational device designed for superior thermal imaging. This advanced monocular series features a cutting-edge twelve-micron infrared detector paired with a high-resolution 1024 x 768 OLED display, delivering enhanced color rendering and clarity. The Reach IR series is distinguished by its highly sensitive thermal sensors, boasting sub-20 millikelvin temperature ratings, making it one of the most precise in its class.

Equipped with a powerful 1,000-meter integrated laser rangefinder (LRF), this monocular ensures accurate distance measurement, essential for various applications. Its robust construction is complemented by a removable, rechargeable 18650 battery, providing convenience and extended usage. With an impressive waterproof rating, the Reach IR is built to withstand diverse weather conditions, offering reliability and peace of mind during outdoor activities.

The monocular's optimized image processing algorithms deliver highly detailed and refined thermal images, setting a new standard in image quality. With a generous built-in 64 GB memory, users can effortlessly record video and audio or capture images, supported by advanced software for seamless operation.

Ideal for a wide range of applications, the Reach IR Thermal Monocular is perfect for hunting, law enforcement, search-and-rescue missions, personal security, conservation efforts, anti-poaching initiatives, camping, hiking, and various marine activities. This versatile device is engineered to meet the demands of professionals and enthusiasts alike, providing exceptional performance in any environment.

AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder Features

  • Sub-20mK thermal sensitivity
  • Fast 50 Hz imaging
  • Built-in 1,000-meter laser rangefinder
  • New optimized image processing algorithms
  • 1x, 2x, 4x, 8x digital zoom
  • 1024x768 resolution, 0.39-inch OLED display
  • Vide/audio recording and image capture
  • 64 GB built-in memory
  • Wi-Fi hotspot
  • Standby mode
  • Replaceable and rechargeable 18650 Lithium battery
  • Up to 4.5 hours continuous running
  • Auto screen-off function
  • Robust magnesium alloy housing
  • Waterproof

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Sub-20 millikelvin temperature sensitivity for precise thermal detection
  • Integrated 1,000-meter laser rangefinder for accurate distance measurement
  • Optimized image processing algorithms for highly detailed thermal images
  • Built-in 64 GB memory with video/audio recording and image capture capabilities

What's in the box:

  • AGM Global Vision Reach IR Thermal Monocular with Laser Rangefinder
  • Wrist Strap
  • Lens Cloth
  • Protective Bag
  • 18650 Battery
  • Battery Charger
  • AC Adapter
  • USB Cable
  • AGM Global Vision 5 Year Limited Warranty
