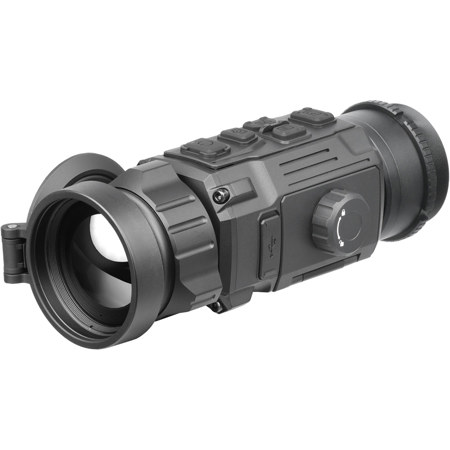

AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System 50mm f/1.0

SKU: AGMRVV250640 MFR: 314205560206R561
Earn VIP Reward Points

Key Features

  • Industry-leading 12-micron, sub-20mk thermal detectors for superior image clarity
  • Easily converts day scopes into thermal imaging devices without special tools
  • Rechargeable Li-ion batteries provide up to 11 hours of continuous use
  • USB-C connector for extended operation with an external 5V power bank
  • Onboard Wi-Fi module for live video streaming and recording via mobile app
  • Seamless integration with existing optics for enhanced thermal capabilities
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/11/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$479.00

2 Year

$799.00

3 Year

$1,299.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System Specifications

  • Detector

    12microm VOx Uncooled Focal Plane Array

  • Resolution

    19mm f/1.0: 256 x 192
    35mm f/1.0: 384 x 288
    50mm f/1.0: 640 x 512

  • NETD

    Less than 35 mK (77 Degree F (25 Degree C))

  • Refresh Rate

    50 Hz

  • Available Lens System

    19mm f/1.0, 35mm f/1.0, 50mm f/1.0

  • Optical Magnification

    1x

  • Field of View

    19mm f/1.0: 9.3 Degree x 6.9 Degree
    35mm f/1.0: 7.5 Degree x 5.6 Degree
    50mm f/1.0: 8.8 Degree x 7.0 Degree

  • Focus Range

    19mm f/1.0: 0.5m to infinity
    35mm f/1.0: 2m to infinity
    50mm f/1.0: 10m to infinity

  • Exit Pupil

    22mm

  • Eye Relief

    10mm

  • Detection Range (6' object)

    19mm f/1.0: 1000m/yd
    35mm f/1.0: 1800m/yd
    50mm f/1.0: 2600m/yd

  • Display

    0.39" OLED, 1024x768

  • Palettes

    Black hot, White hot, Red hot, Fusion

  • Flat Field Correction

    Auto, Manual, External Correction

  • Scene Mode

    Cold, Warm

  • Video/Audio Recording

    Yes

  • Image Capture

    Yes

  • Standby Mode

    Yes

  • Storage

    Built-in EMMC (16 GB)

  • Defective Pixel Correction

    Yes

  • Wi-Fi Hotspot

    Yes

  • Hot Track

    Yes

  • Distance Measurement

    Yes (Stadiametric)

  • Shot Activated Recording (SAR)

    Yes

  • Battery

    4400mAh Replaceable and Rechargeable Li-ion Battery

  • Battery Life (Operating, 20 Degree C)

    19mm f/1.0: 11.5 h (25 Degree C, with hotspot off)
    35mm f/1.0: 11 h (25 Degree C, with hotspot off)
    50mm f/1.0: 9 h (25 Degree C, with hotspot off)

  • External Power Supply

    5 VDC, 2 A, USB Type-C

  • Operating Temperature Range

    -22 Degree F to 131 Degree F (-30 Degree C to +55 Degree C)

  • Protection Level

    IP67

  • Max. Recoil

    1000g / 0.4ms

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions

    Without mount:
    19mm f/1.0: 7.2 x 2.7 x 2.6" (184 x 68 x 67mm)
    35mm f/1.0: 7.2 x 2.7 x 2.6" (184 x 68 x 67mm)
    50mm f/1.0: 7.7 x 2.9 x 2.7" (196 x 73 x 68mm)

  • Weight

    Without mount and Battery:
    19mm f/1.0: 17.63 oz (500g)
    35mm f/1.0: 19.04 oz (540g)
    50mm f/1.0: 19.4 oz (550g)

  • UPC Code

    810027771841

About AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System

Become an expert in thermal imaging with the NEW AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System. This advanced thermal clip-on system features industry-leading 12-micron, sub-20mk thermal detectors (NETD), ensuring exceptional image clarity and precision. The Rattler-C V2 is designed for seamless integration with your existing day scopes, allowing you to effortlessly transform them into powerful thermal imaging devices without the need for special tools or equipment.

The AGM Rattler-C V2 is powered by replaceable and rechargeable Li-ion batteries, delivering up to 11 hours of continuous operation on a single charge. With two batteries included, you can stay prepared for extended use. For even longer sessions, connect an external 5V power bank via the convenient USB-C connector to significantly extend the operating time.

Enhance your experience with the onboard Wi-Fi module, which enables live video streaming and recording of videos and images through a mobile application. Whether you're in the field or on a mission, the AGM Rattler-C V2 ensures you have the thermal imaging capabilities you need, right at your fingertips.

AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System Features

  • Quick conversion of daytime optics into thermal imaging scope
  • 12microm high-sensitivity thermal detector, NETD < 20mK
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 9 - 11 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Industry-leading 12-micron, sub-20mk thermal detectors for superior image clarity
  • Easily converts day scopes into thermal imaging devices without special tools
  • Rechargeable Li-ion batteries provide up to 11 hours of continuous use
  • USB-C connector for extended operation with an external 5V power bank
  • Onboard Wi-Fi module for live video streaming and recording via mobile app
  • Seamless integration with existing optics for enhanced thermal capabilities

What's in the box:

  • AGM Global Vision Rattler-C V2 Rechargeable Thermal Imaging Clip-On System
  • Mount
  • 2x Rechargeable Battery
  • Charger
  • USB Cable
  • Lens Cloth
  • Carrying Case
  • User Manual
  • AGM Global Vision 5 Year Limited Warranty
