AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars 75mm f/1.2 640 x 512

SKU: AGMVTB75640 MFR: 7142510005308V761
Earn VIP Reward Points

Key Features

  • High-sensitivity 12-micrometer infrared thermal sensor for superior detection
  • Waterproof housing for reliable performance in severe weather conditions
  • Built-in 1000-meter laser rangefinder and GPS module for precise navigation
  • 850nm IR illuminator and electronic compass for enhanced target acquisition
  • 64GB internal memory for seamless video recording and image capture
  • Wi-Fi hotspot function for easy connectivity with mobile devices via AGM Connect app
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/11/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars Specifications

Thermal Module

Thermal Module

Jump to...
  • Image Sensor

    12 microm Vanadium Oxide Uncooled
    Focal Plane Array

  • Available Resolution

    384x288, 640x512

  • Refresh Rate

    25 Hz

  • Response Waveband

    8 microm to 14 microm

  • NETD

    Less than 20 mK (77 Degree F (25 Degree C))

  • Available Lens (Focal Length)

    50mm f/0.9, 75mm f/1.2, Manual focus

  • Magnification

    50mm (384x288): 5.5x - 88x
    50mm (640x512): 3.5x - 56x
    75mm (640x512): 5x - 80x

  • Field of View

    50mm (384x288): 5.3 Degree x 4.0 Degree
    50mm (640x512): 8.7 Degree x 7.0 Degree
    75mm (640x512): 5.9 Degree x 4.7 Degree

  • Aperture

    50mm: F0.9, 75mm: F1.2

  • Digital Zoom

    1x, 2x, 4x, 8x, 16x

  • Detection Range

    2,600 m/yd (6' object)

  • Focus Mode

    Manual focus

  • Minimal Focus Distance

    50mm: 5m, 75mm: 7.5m

Optical Module

Jump to...
  • Max. Image Resolution

    2560x1440

  • Image Sensor

    1.88" Progressive Scan CMOS

  • Min. Illumination

    B/W : 0.001 lux @ (F1.2 , AGC On)

  • Lens (Focal Length)

    31mm

  • Aperture

    F1.2

  • IR Illuminator

    Built-in 850 nm Smart IR

  • Night Viewing Range

    400 m/yd

Image Display

Jump to...
  • Monitor

    0.39" OLED, 1024x768

  • Diopter Adjustment

    -5 to +3 dpt

  • Interpupillary Distance

    60mm to 70mm

  • Eye Relief

    15mm

  • Image Mode

    Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion

  • Optical Mode

    Day, Night, Auto, Defog

  • Flat Field Correction

    Auto, Manual, External Correction

  • PIP

    Yes

Laser Rangefinder

Jump to...
  • Measuring Distance

    Max. 1,000m

  • Accuracy

    +/-1m

  • Laser Wavelength

    905 nm (Class 1)

  • Storage

    Built-in memory module (64 GB)

  • Video Recording

    MP4, 1600x1200

  • Snapshot Capture

    JPEG, 1600x1200

  • Audio Recording

    Yes

  • Local Album

    Yes

  • Wi-Fi Hotspot

    Yes

  • GPS

    Yes

  • Digital Compass

    Yes

  • Hot Track

    Yes

  • Laser Rangefinder

    Yes

  • Proximity Sensor

    Yes

  • Standby Mode

    Yes

Power Supply

Jump to...
  • Battery

    Three 18650 batteries with 3 extra Batteries

  • Battery Operating Time

    Up to 8 hours

  • Battery Capacity Display

    Yes

  • External Power Supply

    DC 5V/2A, Max.10W, Type-C port

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    18650

  • Battery Quantity

    6

General

Jump to...
  • Color

    Black

  • Working Temperature

    -30 Degree C to 55 Degree C (-22 Degree F to 131 Degree F)

  • Storage Temperature (w/o batteries)

    -40 Degree C to 70 Degree C (-40 Degree F to 158 Degree F)

  • Working Humidity

    < 90%

  • Protection Level

    IP67

  • Mounting

    1/4"-20 UNC

  • Cable Output

    USB Type-C port

  • Dimensions (L x W x H)

    50mm (384x288): 8.5 x 6.1 x 3.5" (217 x 155 x 87mm)
    50mm (640x512): 8.5 x 6.1 x 3.5" (217 x 155 x 88mm)
    75mm (640x512): 9 x 8.65 x 3.5" (230 x 155 x 88mm)

  • Weight

    50mm: 2.5 lbs (1.12kg)
    75mm: 3.2 lbs (1.45kg)

  • UPC Code

    810027772473

About AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars

The AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars are a cutting-edge solution for both professional and recreational users seeking superior target detection and positioning capabilities. It features a 12-micrometer high-sensitivity infrared thermal sensor with NETD, ensuring exceptional performance in diverse lighting conditions. The binoculars boast a robust waterproof housing, making them ideal for use in severe weather and challenging environments. Its user-friendly interface, complemented by ergonomic buttons, ensures intuitive operation and ease of use.

Equipped with a built-in 1000-meter laser rangefinder, GPS module, electronic compass, inclinometer, and an 850nm IR illuminator, the Voyage series offers comprehensive tools for precise navigation and target acquisition. It also includes 64GB of built-in memory, allowing users to capture and record high-quality videos and images effortlessly. The Wi-Fi hotspot function enables seamless connectivity with mobile devices via the AGM Connect app, enhancing the user experience by allowing remote operation and data sharing.

Designed for extended use, the binoculars can accommodate three 18650 rechargeable Lithium batteries, providing up to 8 hours of continuous operation. The integrated proximity sensor further enhances energy efficiency by conserving battery life. The AGM Global Vision Voyage binoculars are an essential tool for those requiring reliable and advanced thermal and digital day/night vision capabilities.

AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars Features

  • Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
  • Selection of thermal view channel, visible light channel, or both them combined
  • NETD less than 20 mK (25 Degree C, F#=1.0)
  • Digital Detail Enhancement (DDE)
  • Dynamic Noise Reduction (3D DNR)
  • Adaptive Automatic Gain Control (AGC)
  • Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
  • Video recording, replay, picture snapshot and search (capable to review the event on device)
  • Wi-Fi hotspot
  • Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
  • GPS module
  • Digital magnetic compass
  • Inclination sensor
  • Proximity sensor to save power
  • Up to 8 hours continuous operation
  • Waterproof, IP67

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • High-sensitivity 12-micrometer infrared thermal sensor for superior detection
  • Waterproof housing for reliable performance in severe weather conditions
  • Built-in 1000-meter laser rangefinder and GPS module for precise navigation
  • 850nm IR illuminator and electronic compass for enhanced target acquisition
  • 64GB internal memory for seamless video recording and image capture
  • Wi-Fi hotspot function for easy connectivity with mobile devices via AGM Connect app

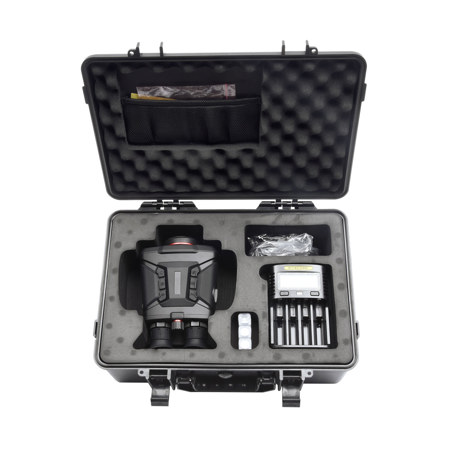

What's in the box:

  • AGM Global Vision Voyage Thermal & Digital Day/Night Vision Binoculars
  • Battery Charger
  • Power Cable
  • Lens
  • Cloth
  • 2x Wrist Straps
  • Neck Strap
  • 6x 18650 Batteries
  • Power Adapter
  • Carrying Case
  • User Manual
  • AGM Global Vision 5 Year Limited Warranty
