Review Summary
18mm Latvian Birch Ply
Buffalo Tolex
Folded Mild Steal
1200Watts Continuous
2400Watts Peak
50Watts Up
8x 10" + HF Unit
2x Speakon combi jack with HF switch
35Hz - 20kHz
4Ohms Nominal
100dB - 1w at 1m at 200Hz
1168 x 609 x 438mm / 45.98 x 23.98 x 17.24" (including wheels)
67kg / 147.71lbs
Hand made in the England

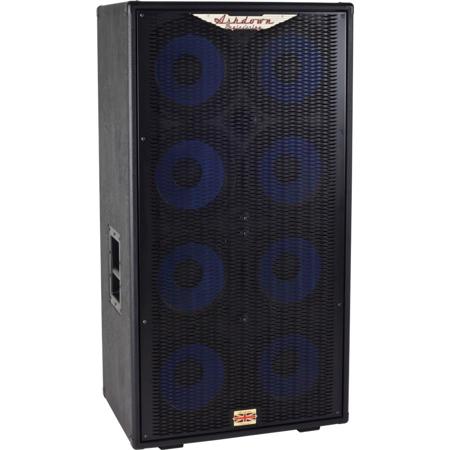

Complementing the new ABM-EVO IV heads, Ashdown has also announced two news ranges of cabinets. Foundation range cabinets are hand-crafted in the UK featuring 18m ply and custom high-powered BlueLine Plus drivers.
Built to last a lifetime
Ashdown Foundation cabinets utilize the knowledge of Italian speaker manufacturers SICA to develop a range of speakers that they are proud to put their name on and offer a lifetime warranty.
Sourced from responsibly managed forests
The cabinets are built using FSC approved birch ply-wood, ensuring their cabinets are built from responsibly managed forests. Each cabinet has been tuned to match the exacting frequency response of the chosen drivers to ensure the highest possible SPL and ensure longevity of the drivers.
Portability
New tilt back heavy duty casters are now fitted to the ABM-810H, ABM-410H and ABM-115H cabs for ease of transportation, along with protective kick plate and ply runners (ABM-810H only).
Fixings
Every NEW Foundation Range cabinet has T-Nutted Alan Key fitted grills and speakers for ease of locating when replacing speakers.
HF unit
Every cab is fitted with a bespoke Ashdown HF unit to re-produce the natural high frequencies of the bass guitar.
