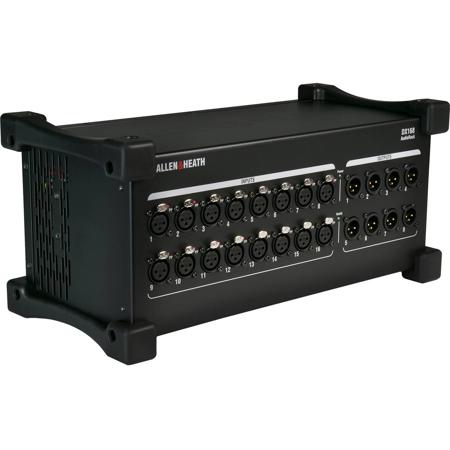

Allen & Heath DLIVE-DX168 16 XLR Input/8 XLR Output Portable DX Expander for dLive Mixing System

SKU: AHDLIVEDX168 MFR: DLIVE-DX168
Earn VIP Reward Points

Key Features

  • Expand your dLive mixing system with 16 XLR inputs and 8 XLR outputs for ultimate connectivity.
  • Experience pristine audio quality with fully recallable mic preamps, perfect for studio recording.
  • Achieve ultra-low latency for seamless live sound and recording sessions using this audio interface.
  • Rugged build quality ensures the DX168 portable expander withstands the rigors of touring and stage use.
  • Enjoy flexible input/output options, ideal for complex stage setups and professional audio needs.
  • Easily integrate this digital audio interface into your existing Allen & Heath dLive mixing setup.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Allen & Heath DLIVE-DX168 Specifications

Inputs
  • XLR Mic/Line Inputs

    Balanced, +48V Phantom Power

  • Mic/Line Preamp

    Fully recallable

  • Input Sensitivity

    -60 to +15dBu

  • Analogue Gain

    +5 to +60dB, 1dB steps

  • Pad

    -20dB Active PAD

  • Maximum Input Level

    +30dBu (PAD in)

  • Input Impedance

    >4k Ohms (Pad out), >10k Ohms (Pad in)

  • Mic/Line Channel noise

    22-22 kHz, Direct Out at unbalanced out

  • Mic EIN

    -127dB with 150Ohms source

  • Mic/Line Channel Noise

    22-22kHz, Direct Out at unbalanced out
    Mic EIN: -127dB with 150Ohms source
    Unity gain (Pad in): 90dBu
    Low gain (5dB, Pad out): -96dBu
    Mid gain (30dB, Pad out): -90dBu

  • Mic/Line Channel THD+N

    22-22kHz, Direct Out at unbalanced out
    Unity gain (Pad in): 0.003% -88dBu at 1kHz, 0dBu output
    Low gain (5dB, Pad out): 0.002% -93dBu at 1kHz, 0dBu output
    Mid gain (30dB, Pad out): 0.003% -88dBu at 1kHz, 0dBu output

  • Sample Rate

    96kHz

Outputs

Jump to...
  • XLR Outputs

    Balanced, Relay protected

  • Output Impedance

    <75Ohms

  • Nominal Output

    +4dBu = 0dB meter reading

  • Maximum Output Level

    +22dBu

  • Residual Output Noise

    -92dBu (muted, 20-20kHz)

General

Jump to...
  • Operating Temperature

    0 to 35 deg. C (32 to 95 deg. F)

  • Mains Power

    100-240V, 50/60 Hz, 40W max

  • Dimensions (WxDxH)

    410 x 190 x 185mm (16.14 x 7.48 x 7.28")

  • Weight

    4.6kg (10.14 lbs)

  • UPC Code

    6938122246966

About Allen & Heath DLIVE-DX168

How can you enhance your live sound setup with a robust and reliable expansion solution Look no further than the Allen & Heath DLIVE-DX168, a high-quality, durable, and portable DX expander designed to seamlessly integrate with your dLive S Class or dLive C Class system. This professional-grade unit boasts 16 pristine mic preamps, each with its own independent Phantom Power LED indicator, ensuring clear and powerful audio capture for every performance.

With 8 XLR line outputs, the DLIVE-DX168 provides ample connectivity for a variety of audio setups, making it an indispensable tool for live sound engineers and audio technicians. The versatility of this expander is further highlighted by its capacity to connect up to 6 DX168 units to your dLive system-4 through the MixRack and an additional 2 via the Surface. This allows for an impressive expansion of up to 96 remote inputs and 48 remote outputs, extending beyond the capabilities of the MixRack and Surface alone.

The DLIVE-DX168 ensures a streamlined and user-friendly experience with its single Cat5e cable connection to the dLive Surface, MixRack, or an upstream DX168 through a secure etherCON port. For added reliability, a second locking etherCON port is available for redundant connections to compatible hardware or for daisy-chaining to another DLIVE-DX168, providing even more remote I/O options.

Constructed to withstand the rigors of live events, the DLIVE-DX168 features hard-wearing rubber bumpers and a rugged exterior that can be placed directly on the stage floor, offering peace of mind during the most dynamic performances. Weighing just 4.6kg and equipped with a sturdy carry handle, this expander is the epitome of portability, making it an excellent choice for rental companies, educational institutions, houses of worship, and various live sound environments.

For those who require a fixed installation, an optional 4U rack mounting kit is available, allowing the DLIVE-DX168 to be securely housed in a standard 19-inch rack. This flexibility ensures that the expander can adapt to any setup, whether on the road or installed in a permanent venue.

In summary, the Allen & Heath DLIVE-DX168 is a user-friendly, versatile, and portable DX expander that offers high-quality audio expansion for your dLive mixing system, making it the go-to choice for professionals seeking to elevate their live sound capabilities.

Allen & Heath DLIVE-DX168 Features

  • 16 Mic Preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs
  • Compatible with dLive S Class and dLive C Class hardware
  • Up to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputs
  • Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O (requires firmware 1.60 or higher)
  • Redundant DX connection to dLive S Class hardware
  • Optional 19-inch rack mount kit available
  • Plug and Play - no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m
  • Rubber bumpers
  • Carry handle

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Expand your dLive mixing system with 16 XLR inputs and 8 XLR outputs for ultimate connectivity.
  • Experience pristine audio quality with fully recallable mic preamps, perfect for studio recording.
  • Achieve ultra-low latency for seamless live sound and recording sessions using this audio interface.
  • Rugged build quality ensures the DX168 portable expander withstands the rigors of touring and stage use.
  • Enjoy flexible input/output options, ideal for complex stage setups and professional audio needs.
  • Easily integrate this digital audio interface into your existing Allen & Heath dLive mixing setup.

What's in the box:

  • Allen & Heath DLIVE-DX168 16 XLR Input/8 XLR Output Portable DX Expander
  • Allen & Heath 1 Year Limited Warranty
