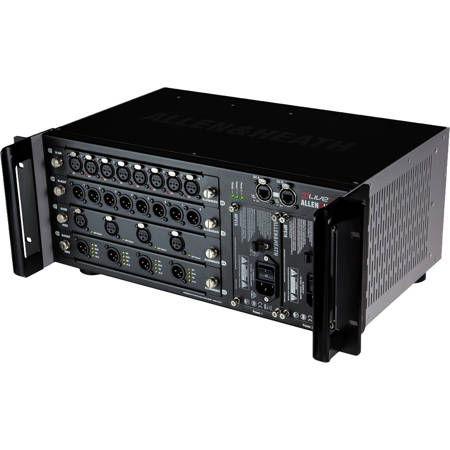

Allen & Heath DLive DX32 4RU Modular I/O Expander Chassis

SKU: AHDLIVEDX32 MFR: AH-DLIVE-DX32
Earn VIP Reward Points

Key Features

  • Expand your DLive system with the DX32, offering fully recallable mic/line preamps.
  • Achieve pristine audio quality with a maximum input level of +30dBu using the PAD.
  • Ensure reliable connectivity with balanced, relay-protected analogue XLR outputs.
  • Operate confidently across a wide temperature range, suitable for diverse venues.
  • Integrate seamlessly with a sampling rate of 24-bit Delta-Sigma for superior sound.
  • Enjoy low latency performance (+8 samples) from DX32 to Mixrack for live events.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Allen & Heath DLive DX32 Specifications

Inputs
  • Mic/Line Preamp

    Fully recallable

  • Input Sensitivity

    -60 to +15dBu

  • Analogue Gain

    +5 to +60dB, 1dB steps

  • Pad

    -20dB Active PAD

  • Maximum Input Level

    +30dBu (PAD in)

  • Input Impedance

    >4k Ohm (Pad out), >10k Ohm (Pad in)

  • Mic EIN

    -127dB with 150Ohm source

  • Phantom Power Indication

    Per socket, internal or external phantom power sensing, triggered at 24V

Outputs

Jump to...
  • Analogue XLR Outputs

    Balanced, Relay protected

  • Output Impedance

    <75 Ohm

  • Nominal Output

    +4dBu = 0dB meter reading

  • Maximum Output Level

    +22dBu

  • Residual Output Noise

    -92dBu (muted, 20-20kHz)
    90dBu (muted, 20-40kHz)

  • Sampling Rate

    ADC: 24-bit Delta-Sigma
    DAC: 24-bit Delta-Sigma

  • Latency

    + 8 samples, DX32 to Mixrack (DX hop)

  • Mains Voltage Operating Range

    100-240V AC, 50/60Hz

  • Mains Power Consumption

    300W max (MPS16 V1 300W)
    250W max (MPS16 V2 250W)

Physical

Jump to...
  • Operating Temperature Range

    Fitted with:
    MPS16 V1 300w 32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)
    MPS16 V2 32 Degree F to 104 Degree F (250w 0 Degree C to 40 Degree C)

  • Dimensions

    17.04 x 11.4 x 6.96" (433 x 290 x 177mm)

  • Weight

    23 lbs (10.5kg)

  • UPC Code

    6938122242821

About Allen & Heath DLive DX32

Find the perfect solution to enhance your audio system with the DLive DX32 4RU Modular I/O Expander Chassis. This versatile device is designed to add remote, modular input/output capabilities to a variety of systems, including dLive, AHM-64, Avantis, and SQ. It boasts four slots, each capable of accommodating eight channels, providing you with the flexibility to integrate a selection of analogue or digital I/O.

The DX32 Expander connects seamlessly to your system via a single Cat5e cable, linking to the dLive Surface, MixRack, SQ SLink port, Avantis SLink port, AHM-64 SLink port, or DX Hub through a secure etherCON port. For added reliability, two cables can be used for redundant connection to compatible dLive hardware.

When used with a dLive system, up to two DX32 Expanders can be connected directly to a dLive MixRack, and an additional DX32 can be connected to the Surface. If you need to expand further, additional units can be incorporated into your dLive system via a DX Link card or DX Hub.

In an Avantis setup, a single DX32 can connect directly to an Avantis SLink port. You can also expand your system by adding up to eight DX32s via a DX Hub and/or DX Link cards.

For SQ systems, a single DX32 can connect directly to an SQ SLink port, with the capacity to add up to four units via a DX Hub. Similarly, with an AHM-64 system, a single DX32 can connect directly to an AHM-64 SLink port, and up to four units can be added via a DX Hub.

In essence, the DLive DX32 4RU Modular I/O Expander Chassis is a comprehensive solution for expanding and enhancing your audio and video equipment, offering unparalleled flexibility and connectivity.

Allen & Heath DLive DX32 Features

  • 4x 8ch modular design
  • Redundant, hot swappable power supply
  • Dual redundant Cat5 link to Surface or MixRack
  • Rack-mounted or shelf / floor operation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Expand your DLive system with the DX32, offering fully recallable mic/line preamps.
  • Achieve pristine audio quality with a maximum input level of +30dBu using the PAD.
  • Ensure reliable connectivity with balanced, relay-protected analogue XLR outputs.
  • Operate confidently across a wide temperature range, suitable for diverse venues.
  • Integrate seamlessly with a sampling rate of 24-bit Delta-Sigma for superior sound.
  • Enjoy low latency performance (+8 samples) from DX32 to Mixrack for live events.

What's in the box:

  • Allen & Heath DLive DX32 4RU Modular I/O Expander Chassis
  • Power Cable
  • Handles
  • Allen & Heath 3 Year Limited Warranty
