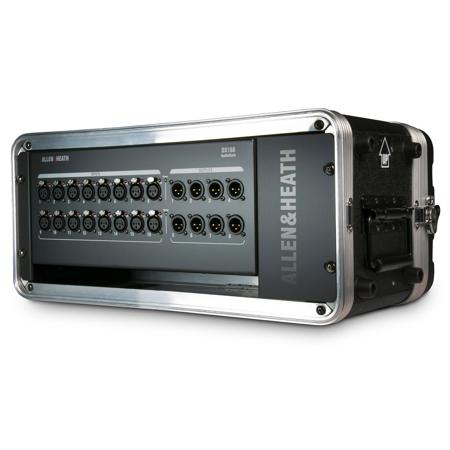

Allen & Heath DX168 16 XLR Input/8 XLR Output Portable DX Expander for dLive Mixing Systems

SKU: AHDX168 MFR: AH-DX168
Earn VIP Reward Points

Key Features

  • Expand your dLive mixing system with the Allen & Heath DX168 portable expander.
  • Experience pristine audio quality with 16 XLR inputs and 8 XLR outputs for your setup.
  • Achieve seamless connectivity using EtherCon, perfect for stage and studio environments.
  • Enjoy peace of mind with durable, relay-protected XLR outputs on this stage box.
  • Recallable mic preamps offer flexible gain control for optimal sound in every performance.
  • This Allen & Heath DX168 stage box delivers top-notch performance at an affordable price.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Allen & Heath DX168 Specifications

Inputs
  • XLR Mic/Line Inputs

    Balanced, 48 V phantom power
    Mic/Line Preamp: Fully recallable
    Input Sensitivity: -60 to 15 dBu
    Analogue Gain: 5 to 60 dB, 1 dB steps
    Pad: -20 dB active pad
    Maximum Input Level: 30 dBu (pad in)
    Input Impedance: >4 kOhms (pad out), >10 kOhms (pad in)

  • Mic/Line Channel Noise

    22 Hz to 22 kHz, direct output at unbalanced output
    Mic EIN: -127 dB with 150 Ohm source
    Unity Gain (Pad In): -90 dBu
    Low Gain (5 dB, Pad Out): -96 dBu
    Mid Gain (30 dB, Pad Out): -90 dBu

  • Mic/Line Channel THD+N

    22 Hz to 22 kHz, direct output at unbalanced output
    Unity Gain (Pad In): 0.003% -88 dBu at 1 kHz, 0 dBu output
    Low Gain (5 dB, Pad Out): 0.002% -93 dBu at 1 kHz, 0 dBu output
    Mid Gain (30 dB, Pad Out): 0.003% -88 dBu at 1 kHz, 0 dBu output

  • Sample Rate

    96 kHz

Outputs

Jump to...
  • XLR Outputs

    Balanced, relay protected
    Output Impedance: <75 Ohms
    Nominal Output: 4 dBu = 0 dB meter reading
    Maximum Output Level: 22 dBu
    Residual Output Noise: -92 dBu (muted, 20 to 20 kHz)

General

Jump to...
  • Operating Temperature

    0 to 35 deg. C (32 to 95 deg. F)

  • Mains Power

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    40W maximum

  • Dimensions

    16.1 x 7.5 x 7.3" (40.89 x 19.05 x 18.54cm)

  • Weight

    10.1 lbs (4.58kg)

  • UPC Code

    06938122246966

About Allen & Heath DX168

Overhaul your dLive mixing system with the DX168, a robust and portable DX Expander designed to enhance your live sound setup. This unit seamlessly integrates with both dLive S Class and dLive C Class systems, providing a significant boost in remote input/output capabilities.

The DX168 is equipped with 16 high-quality mic preamps, each with its own independent Phantom Power and LED indicators, ensuring clear and reliable audio capture. Additionally, the unit boasts 8 XLR line outputs, offering ample connectivity for a variety of audio applications.

Expand your system's reach with the ability to connect up to 6 DX168 units - 4 through the MixRack and an additional 2 via the Surface. This configuration allows for an impressive 96 remote inputs and 48 remote outputs, all while maintaining the pristine audio quality that dLive systems are known for.

Connection is streamlined with a single Cat5e cable, linking the DX168 to the dLive Surface, MixRack, or an upstream DX168 through a secure etherCON port. For enhanced reliability, a second locking etherCON port is available for redundant connections to compatible hardware or for daisy-chaining with a downstream DX168, further extending your system's I/O capabilities.

Designed with the rigors of live performance in mind, the DX168 features durable rubber bumpers and can be placed directly on the stage floor, withstanding the demands of touring and live events. Its lightweight build, at just 4.8kg, and integrated sturdy carry handle, make it an ideal solution for mobile setups in rental situations, educational institutions, houses of worship, and various other venues.

For those who prefer a fixed installation, an optional 4U rack mounting kit is available, allowing the DX168 to be securely housed in a standard 19-inch equipment rack. This flexibility ensures that the DX168 can adapt to any environment, providing a professional and scalable expansion for your dLive mixing system.

Allen & Heath DX168 Features

  • 16 Mic Preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs
  • Compatible with dLive S Class and dLive C Class hardware
  • Up to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputs
  • Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O (requires firmware 1.60 or higher)
  • Redundant DX connection to dLive S Class hardware
  • Optional 19-inch rack mount kit available
  • Plug and Play - no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m
  • Rubber bumpers
  • Carry handle

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Expand your dLive mixing system with the Allen & Heath DX168 portable expander.
  • Experience pristine audio quality with 16 XLR inputs and 8 XLR outputs for your setup.
  • Achieve seamless connectivity using EtherCon, perfect for stage and studio environments.
  • Enjoy peace of mind with durable, relay-protected XLR outputs on this stage box.
  • Recallable mic preamps offer flexible gain control for optimal sound in every performance.
  • This Allen & Heath DX168 stage box delivers top-notch performance at an affordable price.

What's in the box:

  • Allen & Heath DX168 16 XLR Input/8 XLR Output Portable DX Expander
  • Allen & Heath 1 Year Limited Warranty
