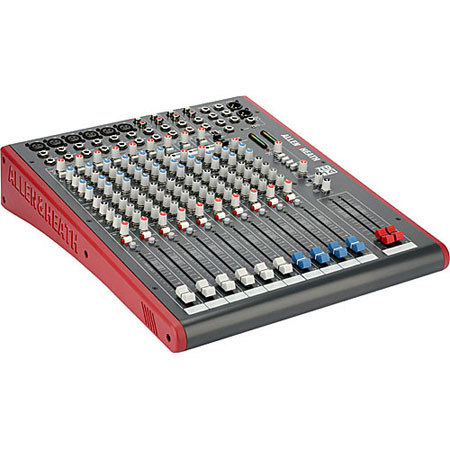

Allen & Heath ZED-14 14-Channel Multipurpose Mixer with USB
See all Allen & Heath items
Special

Allen & Heath ZED-14 Compact 14-Channel Analog Mixer with USB

SKU: AHZED14 MFR: AH-ZED14
Be the first to review this itemAsk a Question
$599.99
$679.99
Save: $80 (12%)
OR
$100/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Allen & Heath ZED-14 recording mixer.
  • Enjoy flexible connectivity with 6 mono channels & 4 stereo channels for your band.
  • Utilize the built-in USB interface for seamless recording and playback on your PC/Mac.
  • Shape your sound with precision using the intuitive EQ control for each channel.
  • Experience low noise performance, ensuring clean and professional audio recordings.
  • Rely on the durability of this mixer, designed for both studio and live sound environments.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$89.99
3-Year Adorama Protect$109.99
5-Year Adorama Protect$179.99

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the DuoPre pre-amps in the ZED-14 mixer?

The DuoPre pre-amps in the ZED-14 mixer are designed to provide a high-quality audio signal with minimal noise. They offer a two-stage design with a large 69dB gain range, ensuring precise control of signal level whether you're using XLR or line inputs.

What software is included with the ZED-14 mixer?

The ZED-14 mixer comes with the Cakewalk SONAR x1 LE software. This software allows you to record directly from the mixer, arrange your tracks, and playback through the USB port, enhancing your music production and mixing capabilities.

How does the USB audio interface on the ZED-14 mixer work?

The USB audio interface on the ZED-14 mixer provides an easy way to get audio to and from a computer. You simply plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer to achieve CD-quality audio.

What is the MusiQ EQ feature on the ZED-14 mixer?

The MusiQ EQ feature on the ZED-14 mixer is a responsive 3-band equalizer with swept mid frequencies. It's designed to allow for precise tonal shaping of individual instruments, ensuring your mixes have the clarity and depth that professionals demand.

Can the ZED-14 mixer be used for both live sound and recording?

Yes, the ZED-14 mixer is a versatile device that can be used for both live sound and recording applications. Its comprehensive feature set and professional performance make it suitable for a wide range of audio tasks.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Allen & Heath ZED-14 Specifications

  • Input: Mono channel (XLR) Input

    +6 to -63dBu for nominal (+17dBu in max)

  • Input: Mono channel Line Input

    +10 to -26dBu (+30dBu maximum)

  • Input: Insert point (TRS Jack socket)

    0dBu nominal +21dBu maximum

  • Input: Stereo Input (Jack sockets)

    0dBu nominal (control = Off to +10dB)

  • Input: Stereo input (phono sockets)

    0dBu nominal (control = Off to +10dB)

  • Output: L, R & Mono Outputs

    0dBu nominal. +21dBu maximum.

  • Output: Aux Outputs (Jack sockets)

    0dBu nominal. +21dBu maximum.

  • Output: Alt Outputs (phono sockets)

    0dBu nominal. +21dBu maximum.

  • Output: Rec Outputs (phono sockets)

    0dBu nominal. +21dBu maximum.

  • Frequency Response

    Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 20Hz to 20kHz
    Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 30kHz
    Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz

  • THD+n

    Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004%
    Mic in to Mix L/R Out, 30dB gain 1kHz 0.014%
    Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005%
    Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003%

  • Headroom

    Analogue Headroom from nominal (0Vu) 21dB
    USB in & out headroom from nominal (0Vu) 14dB

  • USB Audio CODEC (Coder/Decoder)

    USB Audio In/Out USB 1.1 compliant 16bit
    Sample Rate 32, 44.1, or 48kHz

  • Noise

    Mic Pre EIN at max gain 150R input Z 22-22kHz -127dBu
    Mix L/R out, L/R faders = 0, 22-22kHz ZED-14 -88dBu

  • Dimensions

    18.3 x 15.2" / 464.82 x 386.08mm

  • Weight

    14.33lbs / 6.5kg

  • UPC Code

    6938122229051

Related Articles & Videos

Home Recording Studio Equipment Setup for Beginners

Home Recording Studio Equipment Setup for Beginners

Looking to create a home studio but don’t know where to start? We cover the essential equipment for setting up your own home recording studio.
Read more

About Allen & Heath ZED-14

Allen & Heath ZED-14 Features

  • Professional 14-channel mixer with USB for versatile live sound and studio recording
  • 6 mono channels and 4 stereo channels with EQ for comprehensive audio control
  • High-fidelity frequency response from 20Hz-20kHz for detailed sound reproduction
  • DuoPre pre-amps with 69dB gain range for pristine audio quality and low noise
  • USB audio interface for easy, CD-quality recording and playback with computers
  • Includes Cakewalk SONAR x1 LE software for immediate music production and mixing

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this Allen & Heath ZED-14 recording mixer.
  • Enjoy flexible connectivity with 6 mono channels & 4 stereo channels for your band.
  • Utilize the built-in USB interface for seamless recording and playback on your PC/Mac.
  • Shape your sound with precision using the intuitive EQ control for each channel.
  • Experience low noise performance, ensuring clean and professional audio recordings.
  • Rely on the durability of this mixer, designed for both studio and live sound environments.

What's in the box:

  • Allen & Heath ZED-14 14-Channel Multipurpose Mixer
  • USB Cable
  • Power Cable
  • Sonar LE Install CD
  • Allen & Heath 1 Year Limited Warranty
