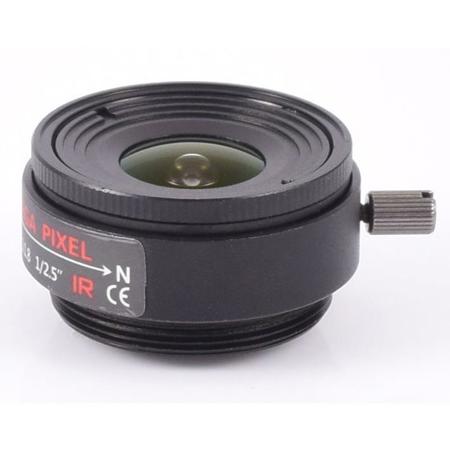

AIDA CS Mount 2.8mm Fixed Focal Megapixel Lens for Gen3G HD Camera, Manual Focus
See all AIDA items

AIDA CS Mount 2.8mm Fixed Focal Megapixel Lens for Gen3G HD Camera, Manual Focus

SKU: AICS28F

This item is no longer available.

Recommended Alternatives

AIDA 5.0-50mm F1.4: Picture 1 regular
AIDA 5.0mm-50mm F1.4 Varifocal 3MP Lens, CS Mount, 1/3" FHD Cameras, Manual Iris
$165.00
AIDA 12mm: Picture 1 regular
AIDA CS Mount 12mm Fixed Focal Megapixel Lens for Gen3G HD Camera
$45.00
AIDA 2.8-12mm F1.4: Picture 1 regular
AIDA 2.8mm-12mm F1.4 Varifocal 3MP Lens, CS Mount, 1/3" FHD Cameras, Manual Iris
$165.00
AIDA 6mm: Picture 1 regular
AIDA CS Mount 6mm Fixed Focal Megapixel Lens for Gen3G HD Camera, Manual Focus
$45.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-12-16T07:22:53

Rated 4 out of 5

short and light weight fisheye lens with no aperture

lens is very short and light weight and has no aperture control, but looks good all the way to the edges. Calibration with fisheye model showed very low distortion so this lens follows a equidistant projection model quite well. Would have preferred larger aperture but sadly couldn't find one that was better than F1.4

Bernd P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AIDA 2.8mm Specifications

General

General

Jump to...

  • Compatibility

    Gen3G HD Camera
    1.3 to 5MP Cameras

Optical

Jump to...

  • Focal Length

    2.8mm

  • F-Stop

    F1.8

  • Focus Operation

    Manual

  • Iris Operation

    Fixed

  • FOV (Horizontal)

    1/2.5": 115 deg.
    1/2.8": 109 deg.
    1/3.2": 90deg

  • Image Format

    Max. 1/2.5" Sensor

  • TV Distortion

    -19% with 1/2.5" Sensor

Physical

Jump to...

  • Mount Type

    CS

  • Operating Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Dimensions

    Diameter: 30 x 17.6mm (1.18 x 0.69")

About AIDA 2.8mm

The CS-Mount 2.8mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging GEN Series cameras with 1/3" Progressive CMOS sensors.

AIDA 2.8mm Features

  • Optimized and tuned with GEN Series Cameras
  • Compatible with 1.3 to 5MP Cameras
  • CS-Mount
  • 1/2.5" Optical Format
  • Fixed Iris Range

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AIDA CS Mount 2.8mm Fixed Focal Megapixel Lens
  • AIDA 1 Year Limited Warranty
