Questions & Answers

FAQ

What resolution does the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera capture video in?

The GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera captures video in full HD 1080p resolution.

What type of lens is compatible with the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera?

The GEN3G-200 camera is designed with an interchangeable lens system, making it compatible with both auto-iris CS and C mount lenses.

Does the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera support audio recording?

Yes, the GEN3G-200 camera includes a 3.5mm mic input for high-quality audio recording. It can also relay embedded audio via SDI & HDMI.

What is the purpose of the Self-Adaptive Genlock Tri-level Sync in the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera?

The Self-Adaptive Genlock Tri-level Sync feature in the GEN3G-200 camera allows for seamless synchronization, which is particularly useful when integrating multiple cameras in a setup.

Can the image settings on the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera be customized?

Yes, the GEN3G-200 camera features a built-in On-Screen Display (OSD) that allows for customizable image settings, giving users more control over their video production.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

AIDA GEN3G-200 Specifications

Video
  • Image Sensor

    1/3" Progressive CMOS

  • Sensor Size

    5.346mm x 3.003mm (16:9)

  • Effective Pixels

    Horizontal: 1920, Vertical: 1080

  • Pixel Size

    2.75 Mum x 2.75 Mum

  • Resolution

    1080p & 1080i: 1920 x 1080
    720p & 720i: 1280 x 720

  • Resolution/Rate

    1080 60p/59.94p/50p/30p/29.97p/ 25p
    1080 60i/59.94i/50i
    720 60p/59.94p/50p/30p/25p

  • Output

    HD-SDI/3G-SDI (1 BNC)
    HDMI 1.3a

  • Color Space

    4:2:2 (YCbCr) 10bit

  • Min. Illumination

    0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)

  • White Balance

    Auto & Manual (19,000 K - 11,000 K)

  • Lens

    C/CS Mount (Default 3.6mm HD Lens)

  • Audio Input

    3.5mm Analog Audio Input through I/O Cable

  • Sample Rate

    16 / 24 / 32 Bits

Standard

Jump to...
  • SMPTE

    SMPTE 292M, SMPTE 424M

Synchronization

Jump to...
  • Genlock

    External Tri-Level Input

Physical

Jump to...
  • Camera Control

    RS-485, OSD Button

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Power

    6W at 12VDC (+9 - +15VDC)

  • Dimensions

    49 x 49 x 71mm (1.93 x 1.93 x 2.80") (With default 3.6mm Lens)

  • Weight

    180g (6.35 oz) (With default 3.6mm Lens)

  • UPC Code

    697691536354

0 Accessories for AIDA GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera with 3.6mm Fixed Lens, 59.94fps

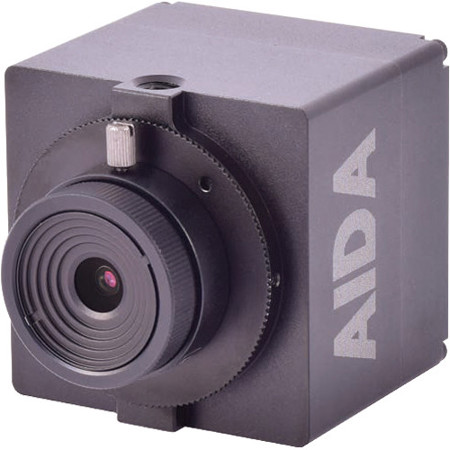

About AIDA GEN3G-200

The GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera is a high-quality, professional-grade device that delivers superior video performance in a compact and durable package. This advanced camera is designed to produce clear, crisp, and full HD video, making it an ideal choice for a wide range of applications, from broadcasting and live production to sports coverage, theater performances, and security surveillance.

Equipped with a 3.6mm fixed lens, the GEN3G-200 is capable of capturing high-definition footage in 1080p resolution, ensuring every detail is captured with precision. Its sophisticated design includes a Self-Adaptive Genlock Tri-level Sync, which ensures seamless synchronization for multi-camera setups.

The camera also boasts a built-in On-Screen Display (OSD) that allows for customizable image settings, offering flexibility and control to the user. With its interchangeable lens design, the GEN3G-200 is compatible with both auto-iris CS and C mount lenses, providing versatility for a variety of shooting scenarios.

One of the standout features of this professional camera is its 3.5mm mic input, which enables high-quality audio recording. This feature, combined with the ability to relay embedded audio via SDI & HDMI, makes the GEN3G-200 a powerful tool for video production workflows.

Whether you're capturing fast-paced sports action, documenting a live event, or monitoring security in educational institutions, the GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera with a 3.6mm fixed lens is a reliable and sophisticated choice that delivers high-quality results every time.

AIDA GEN3G-200 Features

  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions
  • Advanced digital imaging processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction
  • Motion-Compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
  • Tri level sync Genlock synchronizes GEN3 cameras and other system components for seamless vertical interval switching between sources
  • 3G/HD-SDI & HDMI seamless video performance
  • Compatible with other industry leading products, conforming with SMPTE 424M /292M standard
  • Self-Adaptive Resolution Feature captures your reference feed instantly
  • Black Level Set-up provides the better color transition from digital to analog
  • Auto White balance and shutter speed provides the optimized performance in a variety of situations
  • Interchangeable lens design making it compatible with auto-iris CS and C mount lenses
  • Flawlessly relays embedded audio via SDI & HDMI
  • Built-in OSD controls for customizable image settings
  • Versatile, compact, and rugged design

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Full HD 1080p resolution with 3.6mm fixed lens for professional-grade video quality
  • Self-Adaptive Genlock Tri-level Sync for seamless multi-camera integration
  • On-Screen Display (OSD) for customizable image settings and enhanced control
  • Interchangeable lens design compatible with auto-iris CS and C mount lenses
  • 3.5mm mic input for high-fidelity audio recording capabilities
  • Versatile connectivity with embedded audio via SDI & HDMI outputs

What's in the box:

  • AIDA GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera
  • I/O Breakout Cable
  • DC12V Power Supply & Socket Adaptor
  • 3.6mm Megapixel Lens (Pre-Installed)
  • Sensor Cap
  • C-Mount Lens Adaptor
  • Hex Wrench
  • Terminal Power Connector
  • AIDA 2 Year Limited Warranty
