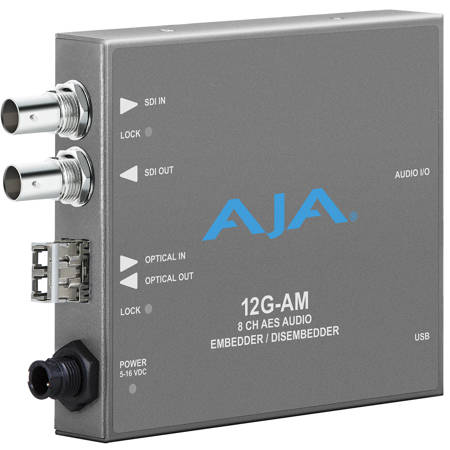

AJA 12G-AM-TR 8-Channel 12G-SDI AES Embedder/Disembedder with LC Fiber TR SFP
AJA 12G-AM-TR: Picture 1 thumbnail
AJA 12G-AM-TR: Picture 2 thumbnail
See all AJA items

AJA 12G-AM-TR 8-Channel 12G-SDI AES Embedder/Disembedder with LC Fiber TR SFP

SKU: AJ12GAMTR MFR: 12G-AM-TR
Be the first to review this itemAsk a Question
$1,835.00
OR
$153/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly embed or disembed up to 8 channels of AES audio with this 12G-SDI embedder.
  • Achieve low latency audio embedding for live broadcasts using this reliable converter.
  • Enjoy stable connection with LC Fiber SFP, ensuring high-quality video and audio output.
  • Supports a range of video formats up to 4K, making it ideal for diverse video workflows.
  • Simplify your setup with easy-to-use DIP switches and Mini-Config software via USB.
  • Ensure good compatibility with SMPTE standards for professional video capture needs.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$149.99

4 Year

$194.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA 12G-AM-TR Specifications

  • Video Formats

    (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048x1080p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
    (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920x1080i 50, 59.94, 60
    (HD) 1280x720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94
    RGB and YCbCr, 4:4:4/4:2:2, 10-bit

  • Video Input Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A or B-DL, SMPTE 425

  • Fiber Input

    1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    Wavelength: Rx 1260 nm (min), 1620 nm (max)
    Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    Overload Power: -2 dBm (min)

  • Video Output Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A or B-DL, SMPTE 425

  • Fiber Output

    1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    Optical Power: -5 dBm (min), 0.5 dBm (max)
    Extinction Ratio: 5.4 dB (min)

  • Cable Equalization

    (Belden 1694A coax)
    12 Gbps, 65m
    6 Gbps, 125m
    3 Gbps, 190m
    1.5 Gbps, 200m
    270 Mbps, 405m

  • Video Path Delay

    Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
    Video Latency, time measured between video input and video output connector:
    12G = 3.2 microsec
    6G = 3.2 microsec
    3G level A = 3.2 microsec
    3G level B-DL = 6.3 microsec
    HD (1.5 Gb) = 6.3 microsec
    SD (270 Mb) = 17.2 microsec

  • Audio Inputs and Outputs

    AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs
    Breakout cable provided with 1x 25 pin D male connector:
    4x XLR female input breakout connectors (AES3 110 ohm)
    4x XLR male output breakout connectors (AES3 110 ohm)

  • Audio Data Formats

    AES3-2003

  • Embedded Audio

    SMPTE 272M (SD): 20-bit, 48 kHz synchronous
    SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
    Incoming embedded audio can be passed, removed, or overridden
    Up to 16-channels supported

  • Embed Path Audio Latency

    (Time measured between audio input and video output connector):
    1500 microsec (SRC ON)
    400 microsec (SRC OFF)

  • Disembed Path Audio Latency

    (Time measured between video input and audio output connector):
    210 microsec

  • User Interface

    External DIP switch
    USB port used with Mini-Config software application to configure the device via PC/Mac

  • Power

    +5-16VDC, 10 watts, power supply required, included with purchase

  • Environment

    Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <10,000' (<3,000m)

  • Dimensions (W x D x H)

    5.8 x 3.1 x 1.0" (147.32 x 78.74 x 25.4mm)

  • Weight

    9.6 oz (272.15g)

About AJA 12G-AM-TR

Before diving into the technical details, let's introduce the 12G-AM-TR 8-Channel 12G-SDI AES Embedder/Disembedder with LC Fiber TR SFP. This innovative and advanced piece of equipment is a testament to the high-quality, durable, and reliable products that Aja, a reputable brand in the professional audio and video industry, is known for.

This 8-channel AES audio embedder/disembedder Mini-Converter is designed to handle 12G-SDI input and output up to 4K/UltraHD, making it an ideal choice for those seeking superior audio and video signal conversion. Its versatility is further enhanced by the inclusion of single link fiber I/O, offering both LC and ST options for seamless connectivity.

The 12G-AM-TR is always ready to deliver with its constant AES Audio disembedding functionality, providing four AES outputs for your convenience. The audio embedding feature is user-selectable on a channel pair basis, giving you the freedom to either pass 12G-SDI input audio or embed input AES audio from the breakout cable.

One of the standout features of this product is its automatic detection and configuration of the input video standard. This means less manual work for you and more time focusing on your professional audio and video applications, whether it be live events, broadcasting, or post-production.

In summary, the 12G-AM-TR 8-Channel 12G-SDI AES Embedder/Disembedder with LC Fiber TR SFP is a robust and reliable solution for high-quality audio and video signal conversion, designed with the user's needs in mind.

AJA 12G-AM-TR Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 8-channel balanced AES audio Embedder/Disembedder
  • Ships with a LC Fiber single channel SFP Transceiver for extending 4K/UltraHD signals over long distances
  • AES audio Disembedding is always functional with four AES outputs
  • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
  • Selectable AES audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • 5-16 VDC Power

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly embed or disembed up to 8 channels of AES audio with this 12G-SDI embedder.
  • Achieve low latency audio embedding for live broadcasts using this reliable converter.
  • Enjoy stable connection with LC Fiber SFP, ensuring high-quality video and audio output.
  • Supports a range of video formats up to 4K, making it ideal for diverse video workflows.
  • Simplify your setup with easy-to-use DIP switches and Mini-Config software via USB.
  • Ensure good compatibility with SMPTE standards for professional video capture needs.

What's in the box:

  • AJA 12G-AM-TR 8-Channel 12G-SDI AES Embedder/Disembedder
  • AJA 5 Year Limited Warranty
