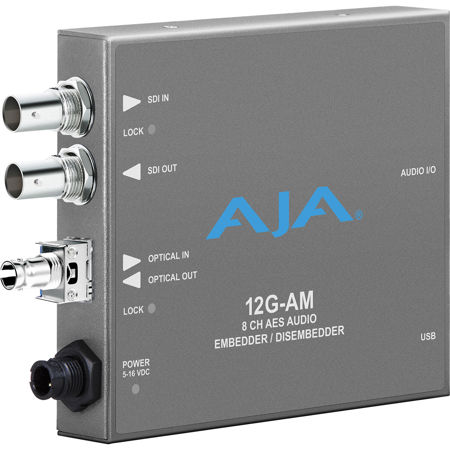

AJA 12G-AM-T-ST 12G-SDI 8-Channel AES Audio Embedder/Disembedder Mini-Converter with Single ST Fiber Transmitter

SKU: AJ12GAMTST MFR: 12G-AM-T-ST
Earn VIP Reward Points

Key Features

  • Seamlessly embed or disembed 8-channel AES audio with this reliable 12G-SDI mini-converter.
  • Achieve stable streaming with low latency using the ST fiber transmitter for high-quality video.
  • Enjoy broad compatibility with SD, HD, 2K, UltraHD, and 4K video formats for versatile use.
  • Simplify your setup with plug-and-play functionality, ensuring easy integration into existing workflows.
  • Ensure reliable recording and broadcasting with dependable 12G-SDI to fiber conversion technology.
  • Remotely configure settings via USB using AJA's Mini-Config software for customized control.
See More Product Details
Special Order?Estimated to Ship: 08/12/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$149.99

4 Year

$194.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA 12G-AM-T-ST Specifications

  • Video Formats

    4K: 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    UltraHD: 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2K: 2048x1080p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
    HD: 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    HD: 1920x1080i 50, 59.94, 60
    HD: 1280x720p 50, 59.94, 60
    SD: 625i 50
    SD: 525i 59.94
    RGB and YCbCr, 4:4:4/4:2:2, 10-bit

  • Video Input Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A or B-DL, SMPTE 425

  • Video Output Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A or B-DL, SMPTE 425

  • Fiber Output

    1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    Optical Power: -5 dBm (min), 2 dBm (max)
    Extinction Ratio: 3.4 dB (min)

  • Cable Equalization

    (Belden 1694A coax)
    12 Gbps, 65m
    6 Gbps, 125m
    3 Gbps, 190m
    1.5 Gbps, 200m
    270 Mbps, 405m

  • Video Path Delay

    Video Latency, time measured between video input and video output connector:
    12G = 3.2 microsec
    6G = 3.2 microsec
    3G level A = 3.2 microsec
    3G level B-DL = 6.3 microsec
    HD (1.5 Gb) = 6.3 microsec
    SD (270 Mb) = 17.2 microsec

  • Audio Inputs and Outputs

    AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs
    Breakout cable provided with 1x 25 pin D male connector:
    4x XLR female input breakout connectors (AES3 110 ohm)
    4x XLR male output breakout connectors (AES3 110 ohm)

  • Audio Data Formats

    AES3-2003

  • Embedded Audio

    SMPTE 272M (SD): 20-bit, 48 kHz synchronous
    SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
    Incoming embedded audio can be passed, removed, or overridden
    Up to 16-channels supported
    (2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.)

  • Audio Latency

    Embed Path: 500 microsec (SRC ON)
    400 microsec (SRC OFF)

    Disembed Path: 210 microsec

  • User Interface

    External DIP switch
    USB port used with Mini-Config software application to configure the device via PC/Mac

  • Power

    +5-16VDC, 10 watts, power supply required, included with purchase

  • Environment

    Safe Operating Temperature: 32 to 104 Degree F (0 to 40 Degree C)
    Safe Storage Temperature (Power OFF): -40 to 140 Degree F (-40 to 60 Degree C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Dimensions (W x D x H)

    5.8 x 3.1 x 1" (147.32 x 78.74 x 25.4mm)

  • Weight

    0.6 lbs (272.15g)

  • UPC Code

    812321032468

About AJA 12G-AM-T-ST

What sets the 12G-AM-T-ST apart is its innovative design as an 8-channel AES audio embedder/disembedder Mini-Converter, boasting support for 12G-SDI input and output up to 4K/UltraHD. This advanced piece of equipment comes equipped with a single ST Fiber link SFP Transmitter, specifically designed to extend 4K/UltraHD signals over long distances, making it an ideal choice for professional audio and video applications.

This reliable and high-quality mini-converter from Aja is always ready for action, with AES audio disembedding consistently providing four AES outputs. The audio embedding is user-selectable on a channel pair basis, offering the flexibility to either pass 12G-SDI input audio or embed input AES audio. The 12G-AM-T-ST is designed with automatic detection and configuration of the input video standard, ensuring seamless operation.

The product comes with a supplied breakout cable (12G-AM CBL DB25-8XLR) that supports 2-channels of AES per XLR connector, allowing for 8-Channels of input and 8-Channels of output simultaneously. For added convenience, an optional BNC breakout cable for AES (12G-AM CBL DB25-8BNC) is available separately.

The 12G-AM-T-ST is compatible with AJA's free Mini-Config software, which can be used with any USB-enabled AJA Mini-Converter. This software provides an intuitive graphical interface with detailed information about the current input and output formats. It allows you to control all the parameters of any supported AJA Mini-Converter and load firmware updates from AJA that add new features and functionality.

All AJA Mini-Converters, including the 12G-AM-T-ST, ship with a universal power supply that includes international plug connections for use around the world. The compact and portable design of AJA Mini-Converters makes them small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector ensures the power supply can't accidentally pull loose, and an optional P-TAP power cable allows for battery power in remote locations.

For easy access to information on the complete line of AJA Mini-Converters, the free AJA Mini-Matrix app for iPad and iPhone is available in the Apple iTunes Store. This app helps you find the right converter for any situation, wherever you are, with individual product links back to the main AJA website for more details. You can also email product information directly from the app.

AJA 12G-AM-T-ST Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 8-channel balanced AES audio Embedder/Disembedder
  • Ships with a ST Fiber single channel SFP Transmitter for extending 4K/UltraHD signals over long distances
  • AES audio Disembedding is always functional with four AES outputs
  • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
  • Selectable AES audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • 5-16 VDC Power

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Seamlessly embed or disembed 8-channel AES audio with this reliable 12G-SDI mini-converter.
  • Achieve stable streaming with low latency using the ST fiber transmitter for high-quality video.
  • Enjoy broad compatibility with SD, HD, 2K, UltraHD, and 4K video formats for versatile use.
  • Simplify your setup with plug-and-play functionality, ensuring easy integration into existing workflows.
  • Ensure reliable recording and broadcasting with dependable 12G-SDI to fiber conversion technology.
  • Remotely configure settings via USB using AJA's Mini-Config software for customized control.

What's in the box:

  • AJA 12G-AM-T-ST 12G-SDI 8-Channel AES Audio Embedder/Disembedder Mini-Converter with Single ST Fiber Transmitter
  • Breakout Cable
  • Power Supply
  • AJA 5 Year Limited Warranty
