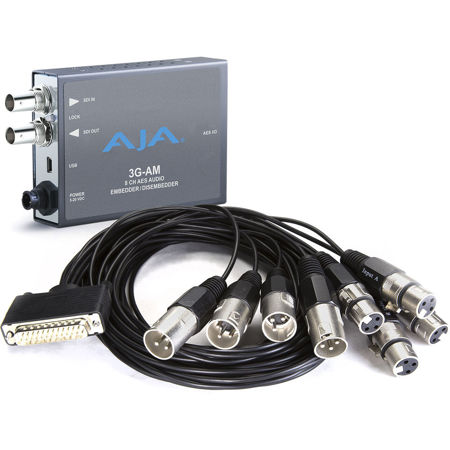

AJA 3G-AM-XLR 3G-SDI 8-Channel AES Embedder/Disembedder with XLR Breakout Cable, USB Connectivity

Explore the power and versatility of the 3G-AM-XLR 3G-SDI 8-Channel AES Embedder/Disembedder, a high-quality, professional-grade audio and video tool designed for seamless integration into your production setup. This robust device supports 3G-SDI input and output up to 1080p/60, ensuring crisp, clear video quality.

With the ability to handle eight channels of AES audio, this Embedder/Disembedder is perfect for large-scale productions requiring multiple audio sources. Its audio disembedding functionality provides four AES outputs, while the audio embedding feature is user-selectable on a channel pair basis. This allows you to either pass 3G-SDI input audio or embed input AES audio from the included XLR breakout cable.

The 3G-AM-XLR Embedder/Disembedder is equipped with AES inputs that are sample rate converted to a 48kHz rate synchronous to the video input. This device automatically detects and configures to the input video standard, making it a reliable and efficient tool for your audio-visual needs.

Enhance your control with the AJA MiniConfig software, accessible via USB connectivity. This user-friendly interface provides detailed information about the current input and output formats, allowing you to manage all parameters of any supported AJA Mini-Converter. Plus, it enables you to load firmware updates from AJA, adding new features and functionality to your device.

Designed for global use, the 3G-AM-XLR 3G-SDI 8-Channel AES Embedder/Disembedder comes with a universal power supply, including international plug connections. Its compact and portable design makes it an ideal choice for various locations, whether behind a monitor, in the back of a rack, or directly on a camera rig. The locking power connector ensures a secure connection, and the optional P-TAP power cable allows for battery power in remote locations.

Whether you're working on a Mac or PC/Windows operating system, this versatile device, with its range of interfaces including BNC, DB-25, SDI, and XLR, is ready to elevate your audio and video production to new heights.
