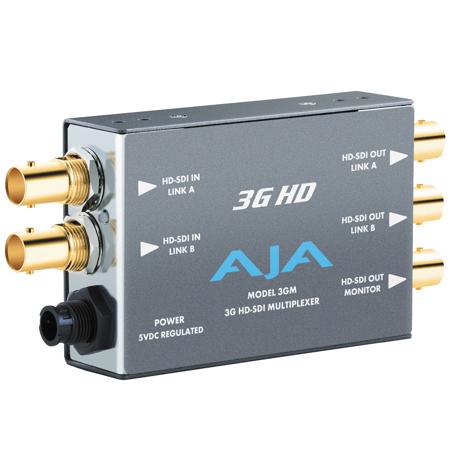

AJA 3GM 3G/1.5G HD-SDI Multiplexer
See all AJA items

AJA 3GM 3G/1.5G HD-SDI Multiplexer

SKU: AJ3GM

This item is no longer available.

Recommended Alternatives

AJA SD/HD/3G: Picture 1 regular
AJA FiDO-R Single-Channel Optical Fiber to SD/HD/3G
$559.00
AJA FS1-X: Picture 1 regular
AJA FS1-X Frame Synchronizer & Converter with MADI Audio
$4,399.00
AJA OG-12GM: Picture 1 regular
AJA OG-12GM openGear 12G-SDI to/from SDI Muxer/DeMuxer
$1,189.00
AJA OG-4K2HD: Picture 1 regular
AJA OG-4K2HD openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter
$909.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AJA 3GM Specifications

  • Video Inputs

    2 HD-SDI, SDI (SMPTE 259/292/296/424), 2x BNC

  • Formats

    3Gb, 1.5Gb, 270Mb Auto Select

  • Video Outputs

    3G HD-SDI, HD-SDI, SDI, 3x BNC

  • Cable Equalization

    270mb, 350m
    1.5Gb, 200m
    3Gb, 120m
    Cable Equalization (1694 coax)

  • Input/Output Return Loss

    >15db, 270Mb - 3Gb

  • User Controls

    External Dipswitch

  • Power

    +5VDC, Regulated, 6 Watts
    DWP-U-R1 Power Supply Included

  • Size

    4.6" x 2.4" x 1" (117 x 61 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

About AJA 3GM

The AJA 3GM is versatile and economical tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M. 3GM is bi-directional - allowing dual 1.5G to 3G or 3G to dual 1.5G conversion. Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is also compatible with SMPTE259M 270Mb SDI.

AJA 3GM Features

  • Compact 3G to/from 1.5G conversion
  • SMPTE425M-AB inputs, 3G outputs configurable to A or B
  • Converts SMPTE425M A to/from SMPTE425M B
  • Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
  • Fully equalizing and re-clocking with jitter attenuation
  • Passes all ancillary data

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compact 3G to/from 1.5G conversion
  • Converts SMPTE425M A to/from SMPTE425M B
  • Passes all ancillary data

What's in the box:

  • AJA 3GM 3G/1.5G HD-SDI Multiplexer
  • DWP-U-R1 Power Supply
  • AJA 5 Years Parts & Labor Warranty
