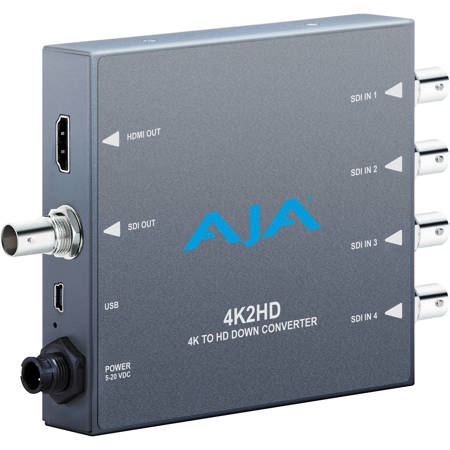

AJA 4K2HD 4K/UHD to HD-SDI and HDMI Down-Converter
See all AJA items

AJA 4K2HD 4K/UHD to HD-SDI and HDMI Down-Converter

SKU: AJ4K2HD

This item is no longer available.

Recommended Alternatives

AJA OG-4K2HD: Picture 1 regular
AJA OG-4K2HD openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter
$909.00
AJA OG-UDC: Picture 1 regular
AJA OG-UDC openGear 3G-SDI Up/Down/Cross-Converter with DashBoard Support
$915.00
AJA RovoRx-SDI: Picture 1 regular
AJA RovoRx-SDI UltraHD/HD HDBaseT Receiver to 6G/3G-SDI and HDMI Frame Sync
$1,245.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-05-25T03:49:21

Rated 4 out of 5

Converted 4k Quad to HD for monitoring purpose

Excellent product works as designed

THOMAS G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA 4K2HD Specifications

  • Input Formats 1

    4K Inputs supported:
    4 x 1.5GHz SDI:
    4 x 1920x1080 p, 4:2:2, 23.98, 24, 25, 29.97, 30
    4 x 1920x1080 psf, 4:2:2, 23.98, 24, 25, 29.97, 30
    4 x 2048x1080 p, 4:2:2, 23.98, 24
    4 x 2048x1080 psf, 4:2:2, 23.98, 24
    2 x dual-stream 3GHz SDI (level B):
    2 x 2 x 1920x1080 p, 4:2:2, 23.98, 24, 25, 29.97, 30
    2 x 2 x 1920x1080 psf, 4:2:2, 23.98, 24, 25, 29.97, 30
    2 x 2 x 2048x1080 p, 4:2:2, 23.98, 24
    2 x 2 x 2048x1080 psf, 4:2:2, 23.98, 24

  • Input Formats 2

    4 x 3GHz SDI:
    4 x 1920x1080 p, 4:2:2, 50, 59.94, 60 (25, 29.97, 30 output)
    4 x 1920x1080 p, 4:4:4, 23.98, 24, 25, 29.97, 30
    4 x 1920x1080 psf, 4:4:4, 23.98, 24, 25, 29.97, 30
    4 x 2048x1080 p, 4:4:4, 23.98, 24
    4 x 2048x1080 psf, 4:4:4, 23.98, 24

  • Input Formats 3

    HD Inputs supported (4:2:2 if Single Link or 4:4:4 if Dual Link)
    720p 50, 59.94
    720p 23.98, 24, 25, 29.97, 30, 50, 59.94
    1080i 25, 29.97, 30
    1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
    1080psf 23.98, 24, 25, 29.97, 50, 59.94, 60
    SD Inputs Supported:
    525i
    625i

  • Video Inputs

    3G, HD and SD-SDI (auto-selected), 4x BNC

  • Video Output

    3G, HD and SD-SDI, 1x BNC
    HDMI v1.4, 30/36 bits per pixel, RGB or YUV
    HDMI Standard Type A connector

  • Audio Inputs

    SDI embedded audio, 24-bit, 8-channel

  • Audio Outputs

    SDI embedded audio, 24-bit, 8-channel
    HDMI embedded audio, 24-bit, 8-channel

  • Power

    +5VDC Regulated, 3 Watts
    DWP-U-R1 Power Supply Included

  • Dimensions

    5.76 x 4.02 x 0.90" (146.30 x 102.10 x 22.86mm)

  • UPC Code

    892448000519

About AJA 4K2HD

The AJA's 4K2HD down-converts professional SDI 4K/UHD signals to HD resolution using AJA's high-quality scaling for cost-effective monitoring and conversion. 4K2HD's HD-SDI and HDMI outputs are both live all the time, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast. 4K2HD outputs SDI and HDMI simultaneously. 4K2HD supports high frame rate (HFR) 4K inputs at 50 and 60fps and gets converted to HD outputs at 50 and 60fps for accurate viewing. 4K2HD's configuration options can extract an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays. Configuration can be set remotely via AJA MiniConfig software control over USB.

Real time downconversion
4K2HD uses real time processing and AJA's high-quality scaling algorithms to downconvert professional 4K or UHD signals using 4 x SDI connections to HD resolution, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast
Simultaneous HD-SDI and HDMI outputs
4K2HD's HD-SDI and HDMI outputs are live all the time, allowing use of both professional SDI monitors as well as low-cost HDMI monitors simultaneously. No matter what monitors you have on hand, 4K2HD can use them for on the spot 4K viewing
High frame rate support
Many 4K productions are opting for higher frame rates of 50 and 60fps. 4K2HD supports high frame rate (HFR) 4K inputs and converts the HD output to a matching frame rate for accurate viewing so what you shoot is what you see
Center-cut extraction
4K2HD can be configured to extract an HD resolution center cut from the 4K input. This provides a one-to-one pixel image that can be used to check focus on 4K shoots without the need for a full 4K monitor
Configure via USB and MiniConfig
AJA's free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about input and output formats as well as all configuration parameters

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA 4K2HD 4K/UHD to HD-SDI and HDMI Down-Converter
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Years Warranty
