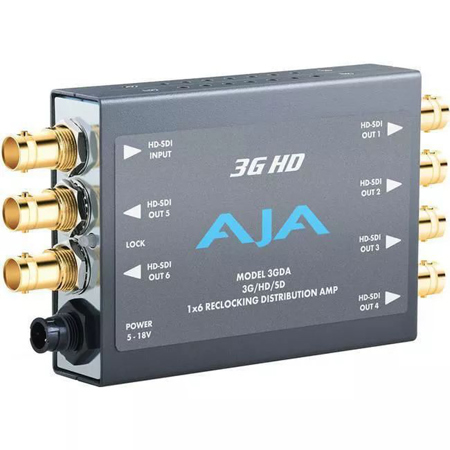

AJA 3GDA 1x6 3G-SDI Reclocking Distribution Amplifier
See all AJA items

AJA 3GDA 1x6 3G-SDI Reclocking Distribution Amplifier

SKU: AJ3GDAR MFR: 3GDA-R0
Be the first to review this item
$525.00
OR
$88/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Distribute a single 3G-SDI input to six outputs, perfect for multi-monitor setups.
  • Experience superior signal quality with advanced reclocking for reliable video distribution.
  • Ensure broad compatibility with support for SMPTE-259/292/424 video formats.
  • Benefit from robust cable equalization, extending your 3G-SDI reach up to 120m.
  • Achieve seamless integration into existing systems with versatile input/output options.
  • Rely on consistent performance for professional video workflows with this durable amplifier.
See More Product Details
Special Order?Estimated to Ship: 04/01/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$29.99
2-Year Adorama Protect$69.99
3-Year Adorama Protect$94.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA 3GDA Specifications

  • Video Formats

    100 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    1x 3G-SDI BNC, SMPTE-259/292/424

  • Video Output Digital

    6x 3G-SDI BNC, SMPTE-259/292/424

  • Cable Equalization

    (Belden 1694A coax)
    3 Gbps, 120m
    1.5 Gbps, 200m
    270 Mbps, 350m

  • Input / Output Return Loss

    >15db, 270 Mb - 3Gb

  • Reclocking

    2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    +5-18VDC, regulated, 3 watts, power supply required
    AC Adapter: 100-240VAC, 50/60 Hz, universal input

  • Environment

    Safe Operating Temperature: 32 to 104 degrees F (0 to 40 degrees C)
    Safe Storage Temperature (Power OFF): -40 to 140 degrees F (-40 to 60 degrees C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <10,000' (<3,000m)

  • Dimensions (W x D x H)

    5.8 x 3.1 x 1" (131 x 79 x 25mm)

  • Weight

    10.6 oz (300g)

About AJA 3GDA

The 3GDA is a miniature, low cost 1x6 3G HD-SDI/HD-SDI/SDI reclocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, reclocking and cable equalization.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

AJA 3GDA Features

  • Compact SD/HD distribution
  • Six separately buffered outputs
  • 3G/HD/SD-SDI input, auto sensing
  • 3G cable equalization (1694 coax)
  • SD: 270mb, 350m, HD: 1.5Gb, 200m
  • Passes all ancillary data test

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Distribute a single 3G-SDI input to six outputs, perfect for multi-monitor setups.
  • Experience superior signal quality with advanced reclocking for reliable video distribution.
  • Ensure broad compatibility with support for SMPTE-259/292/424 video formats.
  • Benefit from robust cable equalization, extending your 3G-SDI reach up to 120m.
  • Achieve seamless integration into existing systems with versatile input/output options.
  • Rely on consistent performance for professional video workflows with this durable amplifier.

What's in the box:

  • AJA 3GDA 1x6 3G-SDI Reclocking Distribution Amplifier
  • Power Supply (DWP-U-R1)
  • AJA 5 Year Limited Warranty
