AJA 12G-AMA 12G-SDI 4-Ch Balanced Audio Embedder/Disembedder Mini-Converter
AJA 12G-AMA: Picture 1 thumbnail
AJA 12G-AMA: Picture 2 thumbnail
AJA 12G-AMA: Picture 3 thumbnail
See all AJA items

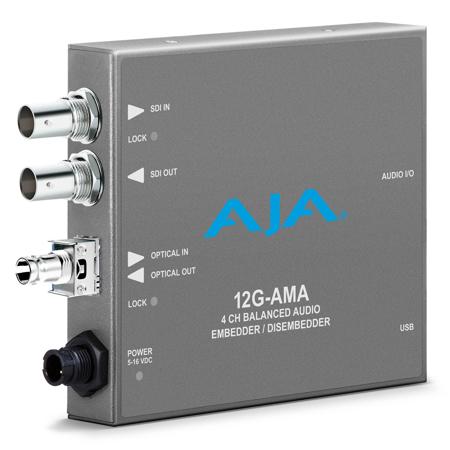

AJA 12G-AMA 12G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter with Fiber Options

SKU: AJA12GAMA MFR: 12G-AMA
Be the first to review this itemAsk a Question
$1,295.00
OR
$108/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly embed or disembed 4-channel balanced audio with this 12G-SDI mini-converter.
  • Achieve high-quality audio integration with 24-bit digital audio converters for pristine sound.
  • Supports a range of video formats up to 4K/UltraHD, ensuring future-proof video capture.
  • Enjoy broad compatibility with SMPTE standards, including 259/292/424/2081/2082 for SDI.
  • Use the Mini-Config software for easy setup and configuration via PC/Mac with a USB port.
  • Ensure stable streaming and reliable performance with a robust 5-year AJA limited warranty.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$77.99

3 Year

$119.99

4 Year

$155.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA 12G-AMA Specifications

  • Video Formats

    4K: 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    UltraHD: 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2K: 2048x1080p 50, 59.94, 60
    HD: 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    HD: 1920x1080i 50, 59.94, 60
    HD: 1280x720p 50, 59.94, 60
    SD: 625i 50
    SD: 525i 59.94
    RGB and YCbCr, 4:4:4/4:2:2, 10-bit

    (1280x720p is Level A Only)

  • Video Input Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

  • Video Output Digital

    1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    Single Link SD/HD/2K/UltraHD/4K
    Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

  • Cable Equalization

    (Belden 1694A coax)
    12 Gbps, 65m
    6 Gbps, 125m
    3 Gbps, 190m
    1.5 Gbps, 200m
    270 Mbps, 405m

  • Audio Inputs and Outputs

    Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out

    Breakout cable provided with 1x 25 pin D male connector:
    4x XLR female input breakout connectors
    4x XLR male output breakout connectors

  • Digital Audio Converters

    24-bit

  • Embedded Audio

    SMPTE 272M (SD): 20-bit, 48 kHz synchronous
    SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
    Incoming embedded audio can be passed, removed, or overridden
    Up to 16 channels supported
    (2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.)

  • Audio Latency

    Embed Path 1100 microsec
    Disembed Path 1200 microsec

  • Analog Audio Levels

    Configured via Mini-Config software:
    Pro 1: 0 dBfs = +24 dBu
    Pro 2: 0 dBfs = +18 dBu
    Pro 3: 0 dBfs = +15 dBu
    Consumer 1: 0 dBfs = +12 dBu

  • User Interface

    External DIP switch
    USB port used with Mini-Config software application to configure the device via PC/Mac

  • Power

    +5-16VDC, 10 watts. power supply required, included with purchase

  • Environment

    Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <3,000 meters (<10,000 feet)

  • Dimensions (W x D x H)

    5.8 x 3.1 x 1" (147.32 x 78.74 x 25.4mm)

  • Weight

    0.6 lbs (0.3kg)

  • UPC Code

    812321032260

About AJA 12G-AMA

Make your audio and video production seamless with the 12G-AMA 12G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter with Fiber Options. This high-performance device is designed to offer superior functionality with AJA's free Mini-Config software. This software, compatible with any USB-enabled AJA Mini-Converter, provides a user-friendly graphical interface that delivers detailed information about the current input and output formats.

With this Mini-Converter, you gain complete control over all parameters of any supported AJA Mini-Converter. Additionally, it allows for the loading of firmware updates from AJA, introducing new features and enhancing functionality.

The 12G-AMA 12G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter comes with a universal power supply, complete with international plug connections, making it a perfect companion for professionals working around the globe.

Compact and portable, this AJA Mini-Converter is designed to fit conveniently behind a monitor, in the back of a rack, or directly on a camera rig. It features a locking power connector to prevent accidental disconnections, and an optional P-TAP power cable for battery power in remote locations.

Stay informed about the complete line of AJA Mini-Converters with the AJA Mini-Matrix mobile app, available on iOS. This app helps you find the right converter for any situation, wherever you are. Each product link leads back to the main AJA website for more detailed information, and you can even email product information directly from the app. Download the free AJA Mini-Matrix app for iPad and iPhone from the Apple iTunes Store today.

AJA 12G-AMA Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • Audio Disembedding is always functional with four Analog outputs
  • Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
  • Selectable Analog audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 4-channels In and 4-channels Out for a total of eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-16 VDC Power

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly embed or disembed 4-channel balanced audio with this 12G-SDI mini-converter.
  • Achieve high-quality audio integration with 24-bit digital audio converters for pristine sound.
  • Supports a range of video formats up to 4K/UltraHD, ensuring future-proof video capture.
  • Enjoy broad compatibility with SMPTE standards, including 259/292/424/2081/2082 for SDI.
  • Use the Mini-Config software for easy setup and configuration via PC/Mac with a USB port.
  • Ensure stable streaming and reliable performance with a robust 5-year AJA limited warranty.

What's in the box:

  • 12G-AMA 12G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter
  • Breakout Cable
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Year Limited Warranty
