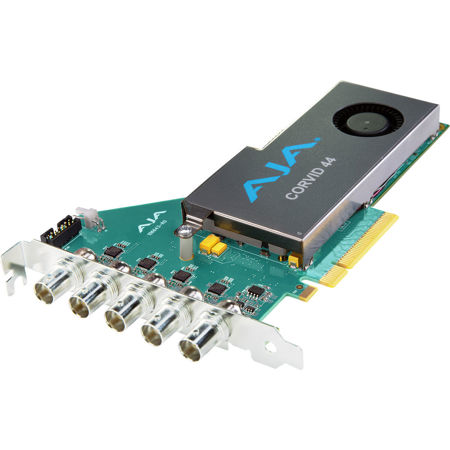

AJA Corvid 44 4-Channel 3G-SDI Standard Profile Flexible Input/Output Card with Full Size BNC Connectors and Fan

Bring an unprecedented level of flexibility and performance to your video and audio processing with the Corvid 44 4-Channel 3G-SDI Standard Profile Flexible Input/Output Card. This advanced piece of equipment offers 3G-SDI connectivity over full-size BNC connectors, allowing you to significantly increase your I/O capacity.

Each SDI connection can be individually configured as input or output, enabling you to mix formats for up to four HD or SD channels on a single card. As the demand for higher resolutions continues to grow, this innovative card allows you to combine SDI connections into a single 4K/UltraHD channel, providing an incredible level of flexibility and future-proofing your system.

The Corvid 44 card features PCIe Express Gen 2.0 8-lane and supports all SD/HD/2K x 1080/4K video formats. It also offers 3G input/output for High Frame Rate (HFR) support, 8/10-bit YCbCr, and 12-bit RGB frame buffer formats.

This high-quality, reliable card is perfect for a wide variety of medium density applications, with the ability to access up to four simultaneous input and output streams on a single PCIe card. Each BNC connection can be set programmatically as either an input or output, and each can support a different video format, provided all formats use the same clock timing.

The Corvid 44 card supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p, making it an incredibly flexible solution for your current and future needs.

Additional features include an external, switchable LTC/Reference Input connection, a second LTC input available on an internal header, and a built-in RS-422 connection for control of external devices for frame accurate ingest and layoffs.

Join the ranks of AJA's Developer Partners and leverage the power of this durable, high-performance card to bring your video and audio processing to the next level.
