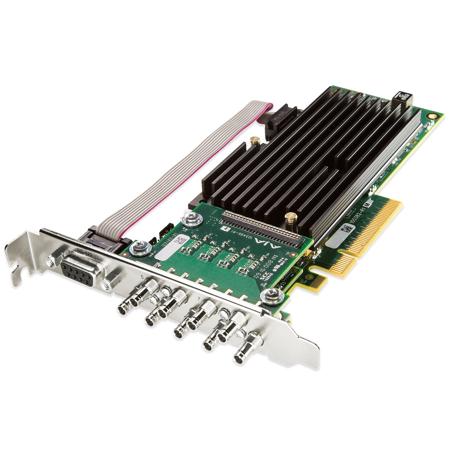

AJA Corvid 88 8-Channel 3G-SDI Standard Profile High Density Input/Output Card, Tall PCIe Bracket

SKU: AJAC889TNC1 MFR: CRV-88-9-T-NC1
Earn VIP Reward Points

Key Features

  • Capture high-quality video with the Corvid 88, supporting SD, HD, 3G-SDI formats for versatile use.
  • Enjoy stable streaming with low latency, perfect for live events and broadcast applications needing reliability.
  • Experience easy setup with this standard profile card, integrating seamlessly into your existing system.
  • Benefit from broad compatibility, supporting various frame rates up to UHD/4K for flexible workflows.
  • Utilize 8-channel I/O for high-density video processing, ideal for complex video production setups.
  • Affordable solution for professional video capture, offering great value without compromising performance.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$239.99

4 Year

$311.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Corvid 88 Specifications

  • Interface

    8-lane PCIe 2.0

  • Video Input / Output

    8x SD/HD/3G-SDI, DIN 1.0/2.3 connectors (each switchable to input or output)
    Note: Channels must use the same master clock (e.g. 29.97 and 59.94)

  • Audio Input / Output

    16-channel, 24-bit, SDI-embedded, 48 kHz synchronous

  • SDI Format Support

    Single Link SD/HD-SDI
    Single Link 3G-SDI (for high frame rate 1080p/2K)
    Dual Link HD-SDI (for high frame rate 1080p/2K)
    Quad Link 3G-SDI (for high frame rate UHD/4K)

  • Video Formats

    SD
    525i 29.97
    625i 25

    HD
    720p 50, 59.94, 60
    1080i 25, 29.97, 30
    1080PsF 23.98, 24, 25, 29.97, 30
    1080p 23.98, 24, 25, 29.97, 30, 50 (A/B), 59.94 (A/B), 60 (A/B)

    2K
    2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    2048 x 1080p 23.98, 24, 25, 29.97, 30

    4K
    UHD 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
    DCI 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60

  • Video Formats (Contd.)

    Note: "A/B" refers to Level A and Level B of SMPTE specs, where Level A is Single Link 3G and Level B is Dual-Link HD-SDI

  • Frame Buffer

    8/10-bit YCbCr and RGB

  • Reference

    1x LTC/Reference in, external
    Additional LTC/Reference input is available on an internal header
    Analog Color Black or HD Tri-Level sync

  • Control

    1x RS-422 (internal connection)

  • Power

    21 W typical, 23 W maximum

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating Relative Humidity

    10-90% non-condensing

  • Operating Altitude

    <3000m (9842.40')

  • Dimensions (WxDxH)

    0.88 x 7.25 x 4.88" (22.35 x 184.15 x 123.95mm)

  • Weight

    0.4 lbs (0.18kg)

About AJA Corvid 88

Are you seeking to enhance your video and audio input/output capacity Look no further than the Corvid 88 8-Channel 3G-SDI Standard Profile High Density Input/Output Card. This advanced piece of technology allows you to individually configure each SDI connection as an input or output, enabling you to mix formats for up to eight HD or SD channels on a single card.

As the demand for higher resolutions continues to grow, the Corvid 88 stands out with its ability to combine SDI connections for multiple 4K/UltraHD channels. This feature offers incredible flexibility and future-proofing for playout and ingest servers or channel-in-a-box systems.

The Corvid 88 is equipped with PCIe Express Gen 2.0 8-lane, supporting up to eight independent channels of 3G, HD, SD-SDI I/O. It accommodates all SD/HD/2Kx1080/4K video formats and offers 3G input/output for High Frame Rate (HFR) support.

This high-quality card also features 8/10-bit YCbCr and 12-bit RGB frame buffer formats, 4 independent Mixer/Keyer widgets, and 8 independent 16-Ch 48 kHz SDI embedded audio I/O engines. It supports Analog Color Black or HD Tri-Level Sync and comes with a built-in RS-422 connection for controlling external devices for frame-accurate ingest and layoffs.

The Corvid 88 is a multi-stream, multi-format PCIe I/O card that allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card. This makes it an ideal solution for ingest and playout servers as well as channel-in-a-box systems.

With its high-density ingest and output capabilities, each BNC connection on the Corvid 88 can be set programmatically as either an input or output, and each can support a different video format, provided all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.

The Corvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It can work at frame rates of 48p, 50p, and 60p, ensuring smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with the Corvid 88, as multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making the Corvid 88 extremely flexible for your current and future needs.

The Corvid 88 is a powerful platform for AJA's Developer Partners, allowing them to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners can leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

In conclusion, the Corvid 88 8-Channel 3G-SDI Standard Profile High Density Input/Output Card is a reliable, efficient, and advanced solution for enhancing your video and audio input/output capacity.

AJA Corvid 88 Features

  • High-density 8-Channel 3G-SDI Input/Output Card for enhanced video and audio capacity
  • Supports multiple video formats including 4K/UltraHD for future-proofing and flexibility
  • Features 8 independent channels of 3G, HD, SD-SDI I/O for diverse connectivity
  • Equipped with 8/10-bit YCbCr and 12-bit RGB frame buffer formats for high-quality video processing
  • High Frame Rate (HFR) support for smooth motion in demanding 4K and UltraHD applications
  • Built-in RS-422 connection for precise control of external devices

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture high-quality video with the Corvid 88, supporting SD, HD, 3G-SDI formats for versatile use.
  • Enjoy stable streaming with low latency, perfect for live events and broadcast applications needing reliability.
  • Experience easy setup with this standard profile card, integrating seamlessly into your existing system.
  • Benefit from broad compatibility, supporting various frame rates up to UHD/4K for flexible workflows.
  • Utilize 8-channel I/O for high-density video processing, ideal for complex video production setups.
  • Affordable solution for professional video capture, offering great value without compromising performance.

What's in the box:

  • AJA Corvid 88 8-Channel 3G-SDI Low Profile Input/Output Card
  • (Cable Not Included)
  • AJA 3 Year Limited Warranty
