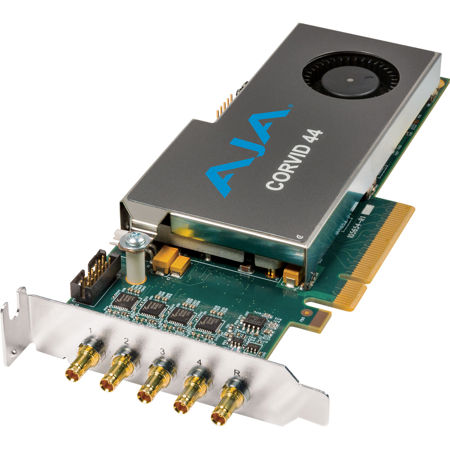

AJA Corvid 44 4-Channel 3G-SDI Low Profile Flexible Input/Output Card, 5x Mini-BNC to Full-Size BNC Cable Adapter

SKU: AJACRV44SR0 MFR: CRV-44-S-R0
Earn VIP Reward Points

Key Features

  • Capture high-quality video with the AJA Corvid 44's 3G-SDI input/output for pristine clarity.
  • Enjoy low latency video capture, ensuring real-time responsiveness for critical monitoring tasks.
  • Experience seamless compatibility with a range of video formats, from SD to 4K, for flexible workflows.
  • Utilize the 16-channel embedded audio for professional sound integration within your video projects.
  • Benefit from stable connection with included Mini-BNC to full-size BNC adapters for secure video transfer.
  • Take advantage of easy setup with this low profile video capture card, perfect for any workstation.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$109.99

3 Year

$179.99

4 Year

$233.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Corvid 44 Specifications

  • Video Input/Output

    4x 3G-SDI BNC; bi-directional

  • Audio Inputs/Outputs

    16-channel 24-bit SDI embedded, 48 kHz synchronous

  • Video Formats

    SD
    525i 59.94
    625i 50

    HD
    720p 50, 50.94, 60
    1080i 50, 59.94, 60
    1080PsF 23.98, 24, 25, 29.97, 30
    1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B

    2K
    2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

  • Video Formats (Contd.)

    4K
    UHD 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    DCI 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

  • Reference

    Analog Color Black or HD Tri-Level sync

  • Processing

    4x Frame Stores (In or Out)
    4x Color Space Converters
    2x Mixer/Keyer widgets
    4x 1D LUTs
    4x Dual-Link In
    4x Dual-Link Out
    4x 16-channel embedded audio engines

  • Power

    17W typical, 19W maximum

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating Relative Humidity

    10-90% non-condensing

  • Operating Altitude

    <3000m (9842.40')

  • Dimensions (WxDxH)

    0.88 x 7.25 x 4.88" (22.35 x 184.15 x 123.95mm)

  • Weight

    0.4 lbs (0.18kg)

About AJA Corvid 44

Under the umbrella of high-performance video and audio equipment, the Corvid 44 4-Channel 3G-SDI Low Profile Flexible Input/Output Card stands out as a versatile and future-proof solution. This powerful PCIe card allows you to expand your I/O capacity, offering the ability to individually configure each SDI connection as an input or output. This flexibility enables the mixing of formats for up to four HD or SD channels on a single card.

As the industry moves towards higher resolutions, the Corvid 44 steps up to the challenge. It allows you to combine SDI connections into a single 4K/UltraHD channel, providing an adaptable solution that's ready for future advancements in video technology.

Equipped with PCIe Express Gen 2.0 8-lane, this card supports up to four independent channels of 3G, HD, SD-SDI I/O. It's compatible with all SD/HD/2K x 1080/4K video formats and features 3G input/output for High Frame Rate (HFR) support. The card also boasts 8/10-bit YCbCr and 12-bit RGB frame buffer formats, and two independent Mixer/Keyer widgets.

The Corvid 44 is designed with four independent 16-Ch 48 kHz SDI embedded audio I/O engines, and can sync with Analog Color Black or HD Tri-Level. It also features a built-in RS-422 connection for controlling external devices for frame-accurate ingest and layoffs.

This multi-stream, multi-format PCIe I/O card is perfect for a wide variety of medium-density applications. Each BNC connection on the Corvid 44 can be set programmatically as either an input or output, and each can support a different video format, as long as all formats use the same clock timing.

The Corvid 44 also supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It can work at frame rates of 48p, 50p, and 60p, ensuring smooth motion for the most demanding 4K and UltraHD applications.

In addition to its impressive video capabilities, the Corvid 44 also provides one external, switchable LTC/Reference input connection on the back of the card, and a second LTC input on an internal header for providing additional reference.

As part of AJA's Developer Program, the Corvid 44 allows partner companies to incorporate AJA products into their systems, leveraging AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

In summary, the Corvid 44 4-Channel 3G-SDI Low Profile Flexible Input/Output Card is a robust, versatile, and future-proof solution for expanding your video and audio I/O capacity.

AJA Corvid 44 Features

  • High-capacity 4-channel 3G-SDI low profile flexible input/output card for expanded video and audio I/O
  • PCIe Express Gen 2.0 8-lane with up to four independent channels 3G, HD, SD-SDI I/O
  • Supports all SD/HD/2K x 1080/4K video formats & 3G input/output for High Frame Rate (HFR) support
  • Features 4 independent 16-Ch 48 kHz SDI embedded audio I/O engines and 2 independent Mixer/Keyer widgets
  • Programmable BNC connections for flexible multi-format I/O and 4K/UltraHD High Frame Rate (HFR) workflows
  • Built-in RS-422 connection for control of external devices and dual LTC input for additional reference

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture high-quality video with the AJA Corvid 44's 3G-SDI input/output for pristine clarity.
  • Enjoy low latency video capture, ensuring real-time responsiveness for critical monitoring tasks.
  • Experience seamless compatibility with a range of video formats, from SD to 4K, for flexible workflows.
  • Utilize the 16-channel embedded audio for professional sound integration within your video projects.
  • Benefit from stable connection with included Mini-BNC to full-size BNC adapters for secure video transfer.
  • Take advantage of easy setup with this low profile video capture card, perfect for any workstation.

What's in the box:

  • AJA Corvid 44 4-Channel 3G-SDI Low Profile Input/Output Card
  • 5x Mini-BNC to Full-Size BNC Cable Adapter
  • AJA 3 Year Limited Warranty
