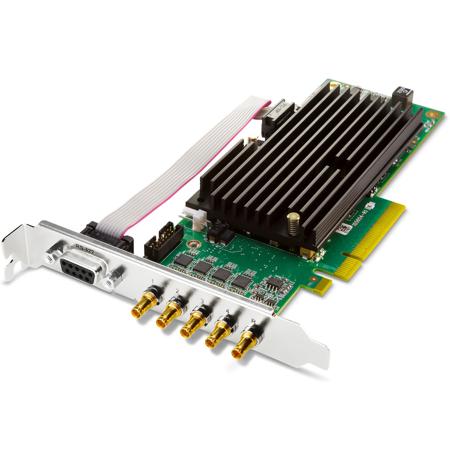

AJA Corvid 44 4-Channel 3G-SDI Standard Profile Flexible Input/Output Card, Tall PCIe Bracket

SKU: AJACRV44TNC1 MFR: CRV-44-T-NC1
Earn VIP Reward Points

Key Features

  • Capture high-quality video with the AJA Corvid 44, supporting SD to 4K formats for versatile use.
  • Experience low-latency video capture, ensuring real-time responsiveness for critical applications.
  • Enjoy broad compatibility with this video capture card, seamlessly integrating into your existing setup.
  • Utilize 4-channel 3G-SDI I/O for flexible workflows, perfect for broadcast and production environments.
  • Benefit from stable connection and reliable performance with AJA's trusted video capture technology.
  • Get great value with advanced features like color space conversion on this professional I/O card.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$109.99

3 Year

$179.99

4 Year

$233.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Corvid 44 Specifications

  • Video Input/Output

    4 x 3G-SDI BNC; bi-directional

  • Audio Inputs/Outputs

    16-channel 24-bit SDI embedded, 48 kHz synchronous

  • Video Formats

    SD
    525i 59.94
    625i 50

    HD
    720p 50, 50.94, 60
    1080i 50, 59.94, 60
    1080PsF 23.98, 24, 25, 29.97, 30
    1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B

    2K
    2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

  • Video Formats (Contd.)

    4K
    UHD 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    DCI 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B

  • Reference

    Analog Color Black or HD Tri-Level sync

  • Processing

    4x Frame Stores (In or Out)
    4x Color Space Converters
    2x Mixer/Keyer widgets
    4x 1D LUTs
    4x Dual-Link In
    4x Dual-Link Out
    4x 16-channel embedded audio engines

  • Power

    17W typical, 19W maximum

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature (Power OFF)

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating Relative Humidity

    10-90% non-condensing

  • Operating Altitude

    <3000m (9842.40')

  • Dimensions (WxDxH)

    0.88 x 7.25 x 4.88" (22.35 x 184.15 x 123.95mm)

  • Weight

    0.4 lbs (0.18kg)

About AJA Corvid 44

Under the umbrella of high-performance video and audio equipment, the Corvid 44 4-Channel 3G-SDI Standard Profile Flexible Input/Output Card stands out. This advanced PCIe card allows you to significantly boost your audio and video input/output (I/O) capacity. With the Corvid 44, you can individually configure each SDI connection as either input or output, enabling you to mix formats for up to four HD or SD channels on a single card.

As the demand for higher resolutions escalates, the Corvid 44 allows you to combine SDI connections into a single 4K/UltraHD channel. This feature provides an incredible level of flexibility and future-proofing, making it an ideal choice for professionals seeking to stay ahead of the curve.

The Corvid 44 is equipped with a PCIe Express Gen 2.0 8-lane, supporting up to four independent channels of 3G, HD, SD-SDI I/O. It is compatible with all SD/HD/2K x 1080/4K video formats and offers 3G input/output for High Frame Rate (HFR) support. The card also supports 8/10-bit YCbCr and 12- bit RGB frame buffer formats, along with 2 independent Mixer/Keyer widgets.

For superior audio performance, the Corvid 44 features 4 independent 16-Ch 48 kHz SDI embedded audio I/O engines. It also offers Analog Color Black or HD Tri-Level Sync.

The Corvid 44 is also available in a fanless version, making it an excellent choice for sound-sensitive environments. This multi-stream, multi-format PCIe I/O card allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium-density applications.

Each BNC connection on the Corvid 44 can be set programmatically as either an input or output, and each can support a different video format, provided all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.

The Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p, and 60p ensure smooth motion for the most demanding 4K and UltraHD applications.

The Corvid 44 also provides one external, switchable LTC/Reference input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to the Corvid 44.

The Corvid 44 also includes a built-in RS-422 connection, available either as an external connection on the full-sized Corvid 44 or as an internal connection on the low profile Corvid 44. RS-422 allows control of external devices for frame accurate ingest and layoffs.

Finally, the Corvid 44 is a powerful platform for AJA's Developer Partners, allowing them to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners can leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

AJA Corvid 44 Features

  • High-capacity video and audio I/O card with flexible 4-channel 3G-SDI input/output functionality
  • Supports 4K and UltraHD High Frame Rate (HFR) workflows for demanding applications
  • Programmable BNC connections to support various video formats on the same clock timing
  • Features PCIe Express Gen 2.0 8-lane for up to four independent channels of 3G, HD, SD-SDI I/O
  • Includes 4 independent 16-Ch 48 kHz SDI embedded audio I/O engines for superior audio performance
  • Built-in RS-422 connection for control of external devices for frame accurate ingest and layoffs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture high-quality video with the AJA Corvid 44, supporting SD to 4K formats for versatile use.
  • Experience low-latency video capture, ensuring real-time responsiveness for critical applications.
  • Enjoy broad compatibility with this video capture card, seamlessly integrating into your existing setup.
  • Utilize 4-channel 3G-SDI I/O for flexible workflows, perfect for broadcast and production environments.
  • Benefit from stable connection and reliable performance with AJA's trusted video capture technology.
  • Get great value with advanced features like color space conversion on this professional I/O card.

What's in the box:

  • AJA Corvid 44 4-Channel 3G-SDI Low Profile Input/Output Card
  • (Cable Not Included)
  • AJA 3 Year Limited Warranty
