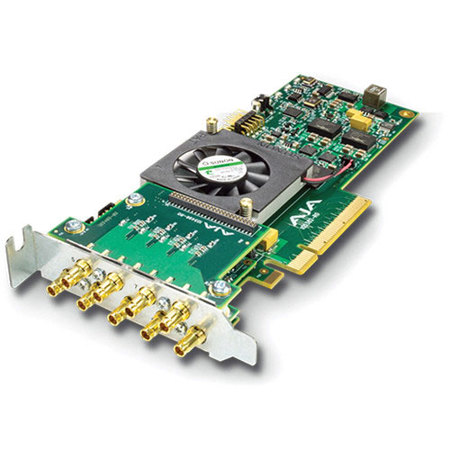

AJA Corvid 88 8-Channel 3G-SDI Low Profile High Density Input/Output Card, 9x Mini-BNC to Full-Size BNC Cable Adapter

Be at the forefront of video and audio technology with the Corvid 88 8-Channel 3G-SDI Low Profile High Density Input/Output Card. This advanced card allows you to individually configure each SDI connection as an input or output, offering the flexibility to mix formats for up to eight HD or SD channels on a single card.

As the demand for higher resolutions continues to grow, the Corvid 88 stands ready to meet your needs. Combine SDI connections for multiple 4K/UltraHD channels, providing an incredible level of flexibility and future-proofing for playout and ingest servers or channel-in-a-box systems.

Equipped with PCIe Express Gen 2.0 8-lane, this high-quality card supports all SD/HD/2Kx1080/4K video formats. It also features 3G input/output for High Frame Rate (HFR) support, 8/10-bit YCbCr and 12-bit RGB frame buffer formats, and 4 independent Mixer/Keyer widgets.

The Corvid 88 is also designed for high-density ingest and output. Each BNC connection can be set programmatically as either an input or output, and each can support a different video format, as long as all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.

For smooth motion in the most demanding 4K and UltraHD applications, the Corvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. It also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p, making it a versatile solution for your current and future needs.

Additional features include an external, switchable LTC/Reference Input connection, a second LTC input available on an internal header, and a built-in RS-422 connection for control of external devices for frame accurate ingest and layoffs.

The Corvid 88 is a powerful platform for AJA's Developer Partners, allowing them to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners can leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

In summary, the Corvid 88 8-Channel 3G-SDI Low Profile High Density Input/Output Card is a reliable, efficient, and durable solution for professional video and audio needs.
