100 Mbps - 3 Gbps, format agnostic
2-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
Nominal Wavelength: 850 nm
Optical Sensitivity: -15dBm (min)
2-Channel independent 3G-SDI Outputs, SMPTE-259/292/424
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
3 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
0 to 40 degrees C (32 to 104 degrees F)
-40 to 60 degrees C (-40 to 140 degrees F)
10-90% noncondensing
<3,000 meters (<10,000 feet)
4.6 x 1.71 x 0.85" (116.84 x 43.43 x 21.59mm)

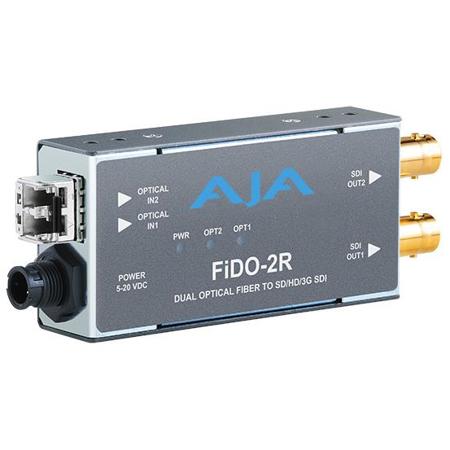

For professionals seeking a robust and high-performance solution for 3G-SDI Fiber conversion, the FiDO-2R-MM stands out as an advanced and reliable choice. This 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver is expertly designed to facilitate the seamless conversion of fiber signals to pristine 3G HD-SDI signals, accommodating the high-bandwidth requirements of modern video workflows.
Crafted with durability in mind, the FiDO-2R-MM is capable of supporting cable runs up to 700 meters (2296 feet) when using OM4 and up to 300 meters (984 feet) for OM3 Multi-Mode fiber optic cables. This extensive reach is particularly beneficial for video production environments where long-distance signal integrity is paramount, and it is also instrumental in eliminating ground loop issues that can plague video quality.
The FiDO-2R-MM features a duplex connection utilizing an LC connector, ensuring a secure and stable link. It boasts dual, independent 3G/HD/SD-SDI outputs, providing versatility for various production needs. Each Fiber-to-SDI conversion path operates independently, offering unmatched flexibility for multi-channel video operations.
Housed in a compact, low-profile enclosure, the FiDO-2R-MM is engineered to fit effortlessly in space-constrained areas, such as behind equipment racks, inside broadcast trucks, or mounted on camera rigs. Despite its small footprint, it delivers the innovative and high-quality performance expected from Aja, a leader in the professional video and audio equipment industry.
The unit is powered by a 5-20VDC power supply, with the DWP-U-R1 universal power supply included for convenience. The universal power supply comes with international plug connections, making the FiDO-2R-MM an excellent choice for global operations.
Portability is a key feature of the AJA Mini-Converters line, and the FiDO-2R-MM is no exception. It is designed to be easily transportable, fitting behind monitors or in remote locations. A locking power connector ensures a reliable power connection, while an optional P-TAP power cable allows for battery operation when on the move.
AJA's commitment to quality is evident in the FiDO-2R-MM, which is backed by a 5-year warranty and AJA's advanced replacement policy. In the unlikely event of a unit failure, AJA prioritizes your production continuity by shipping a new unit immediately, without the need for returning the original unit first.
In summary, the FiDO-2R-MM is an indispensable tool for broadcast professionals, offering advanced features, reliable performance, and the convenience of a compact, portable design. Whether in the studio or on location, this 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver is engineered to meet the rigorous demands of high-quality video signal transmission.
