100 Mbps - 3 Gbps, format agnostic
1-Channel independent 3G-SDI, SMPTE-259/292/424
1-Channel independent 3G-SDI Loop out, SMPTE-259/292/424
1-Channel Multi-Mode LC Fiber connector, SMPTE-297
Nominal Wavelength: 850 nm
Optical Power: -7dBm (min), -2dBm (max)
Extinction Ratio: 7.5dB (Typ)
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
2 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
0 to 40 deg. C (32 to 104 deg. F)
-40 to 60 deg. C (-40 to 140 deg. F)
10-90% noncondensing
<3,000m (<10,000')
4.6 x 1.71 x 0.85" (116.84 x 43.43 x 21.59mm)

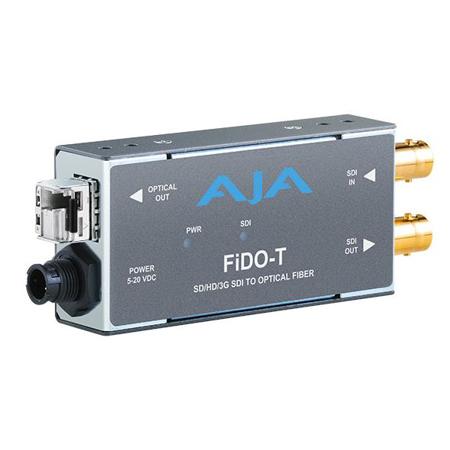

Just when you thought professional video transmission couldn't get any better, the FiDO-T-MM 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter steps in. This advanced, high-quality device offers unparalleled flexibility and cost efficiency for 3G-SDI Fiber conversion. It's designed to facilitate long cable runs of up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables. This makes it an ideal solution for eliminating ground loop problems in various professional settings.
The FiDO-T-MM is a product of Aja, a reputable brand known for its innovative and reliable professional video and audio equipment. This transmitter is equipped with a simplex connection (LC connector) and supports 3G/HD/SD-SDI input, ensuring compatibility with a wide range of devices. It also features a looping SDI output for added convenience.
One of the standout features of this transmitter is its compact, low-profile enclosure. This makes it a perfect fit for tight spaces around and behind equipment racks, trucks, and on camera. Despite its small size, it doesn't compromise on performance or durability.
The FiDO-T-MM uses a 5-20VDC power supply (DWP-U-R1 universal power supply included), ensuring consistent performance in various power conditions. It also features a locking power connector to prevent accidental disconnections. For remote locations, an optional P-TAP power cable allows for battery power, adding to its versatility.
In summary, the FiDO-T-MM 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter is a testament to Aja's commitment to quality and innovation. It's a reliable, advanced, and high-quality solution for professionals seeking efficient 3G HD-SDI video signal transmission over fiber optic cables.
