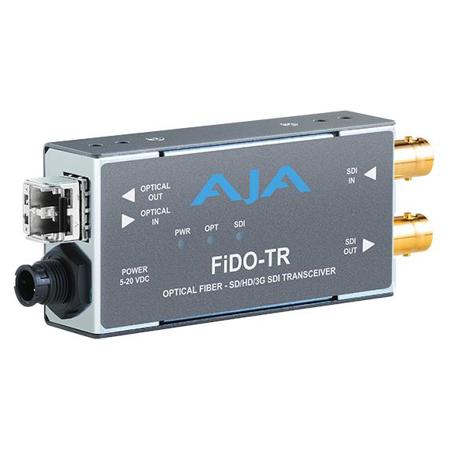

AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

SKU: AJAFIDOTRMM MFR: FIDO-TR-MM
Earn VIP Reward Points

Key Features

  • Enjoy real-time SDI to fiber conversion with this compact, high-performance video converter.
  • Achieve stable performance with auto-selection reclocking for various video formats up to 3 Gbps.
  • This affordable SDI/Fiber transceiver offers easy setup, saving you time and resources on integration.
  • Ensure high resolution format compatibility, supporting SMPTE-259/292/424 standards effortlessly.
  • Use this video format converter for seamless transmission over multi-mode LC fiber connections.
  • With a robust design, this converter maintains stable performance within a wide temperature range.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA FiDO-TR-MM Specifications

  • Video Formats

    100 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    1-Channel independent 3G-SDI, SMPTE-259/292/424
    1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    Nominal Wavelength: 850 nm
    Optical Sensitivity: -15dBm (min)
    Optical Power: -7dBm (min), -2dBm (max)
    Extinction Ratio: 7.5dB (Typ)

  • Video Output Digital

    1-Channel independent 3G-SDI, SMPTE-259/292/424
    1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    Nominal Wavelength: 850 nm
    Optical Sensitivity: -15dBm (min)
    Optical Power: -7dBm (min), -2dBm (max)
    Extinction Ratio: 7.5dB (Typ)

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    3 Watts max
    Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

  • Safe Operating Temperature

    0 to 40 degrees C (32 to 104 degrees F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 degrees C (-40 to 140 degrees F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000m (<10,000')

  • Dimensions (WxDxH)

    4.6 x 1.71 x 0.85" (116.84 x 43.43 x 21.59mm)

About AJA FiDO-TR-MM

Why settle for less when you can have the best with the FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver This high-quality, durable, and reliable device is an innovative solution for 3G-SDI Fiber conversion, offering unmatched flexibility and cost efficiency.

Designed to work seamlessly with a wide range of devices, this advanced transceiver is compatible with both 3G HD-SDI and fiber. This makes it a versatile choice for various applications, from professional broadcasting to high-end video surveillance.

The FiDO-TR-MM is engineered to provide superior audio and video transmission, ensuring that you can capture and transmit professional-grade content with ease. It supports cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 Multi-Mode fiber optic cables, making it an ideal solution for eliminating ground loop problems.

This transceiver features a duplex connection with an LC connector and offers 3G/HD/SD-SDI input and output. It's bidirectional, supporting dual channel fiber, and operates on a 5-20VDC power supply.

The compact, low-profile enclosure of the FiDO-TR-MM is perfect for tight spaces around and behind equipment racks, trucks, and on-camera setups. Its small size doesn't compromise its power, with a locking power connector that ensures a secure connection, and an optional P-TAP power cable for battery power in remote locations.

Experience the quality and reliability of the FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver, a testament to AJA's commitment to innovation and excellence in the field of audio and video equipment.

AJA FiDO-TR-MM Features

  • Versatile 3G-SDI and fiber compatibility for broad device integration
  • Extended range with 700 m OM4 and 300 m OM3 Multi-Mode fiber support
  • High-quality audio and video transmission for professional content
  • Compact and low-profile design for easy installation in tight spaces
  • Secure locking power connector with optional P-TAP for remote battery power
  • Backed by AJA's 5-year warranty and advanced replacement policy

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Enjoy real-time SDI to fiber conversion with this compact, high-performance video converter.
  • Achieve stable performance with auto-selection reclocking for various video formats up to 3 Gbps.
  • This affordable SDI/Fiber transceiver offers easy setup, saving you time and resources on integration.
  • Ensure high resolution format compatibility, supporting SMPTE-259/292/424 standards effortlessly.
  • Use this video format converter for seamless transmission over multi-mode LC fiber connections.
  • With a robust design, this converter maintains stable performance within a wide temperature range.

What's in the box:

  • AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Year Limited Warranty
