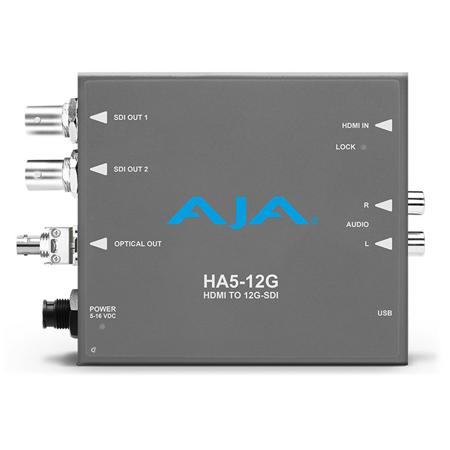

AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Mini-Converter with ST Fiber Transmitter

Be at the forefront of high-quality video production with the HA5-12G-T-ST HDMI 2.0 to 12G-SDI Mini-Converter with ST Fiber Transmitter. This advanced device is designed to enhance your visual content by offering High Dynamic Range (HDR) support, which delivers a broader spectrum of colors, brighter whites, and deeper blacks. This HDR feature ensures your images have a dynamic, lifelike appearance that captivates your audience.

The HA5-12G-T-ST Mini-Converter is equipped to handle both 4K and UltraHD signals, with resolutions of 4096 x 2160 pixels and 3840 x 2160 pixels respectively. This versatile device can adjust for resolution differences, enabling UltraHD monitors to function in 4K workflows and vice versa. It also supports High Frame Rate (HFR) inputs, accepting 4K/UltraHD signals at 50 or 60 fps and outputting at up to 60p for viewing on compatible HDMI 2.0 displays.

This mini-converter offers full HDMI support, with an equalized input designed to accommodate HDMI runs up to 30 meters using 24 gauge cable. Its embedded HDMI audio support simplifies your setup by eliminating the need for multiple cables.

The HA5-12G-T-ST Mini-Converter also features 12G-SDI support, delivering high-quality signal representation for large raster and deep color workflows where image quality is paramount. Its 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability, while an LED indicator provides quick and easy signal identification.

This device also supports DSLR cameras, accepting progressive standard definition signals at 525p and 625p. This feature allows for easy integration of DSLR camera signals into SDI workflows.

The HA5-12G-T-ST Mini-Converter is compatible with AJA's free Mini-Config software, which provides a user-friendly interface with detailed information about current input and output formats. This software also allows for control of all parameters of any supported AJA Mini-Converter, as well as firmware updates from AJA that add new features and functionality.

Compact and portable, the HA5-12G-T-ST Mini-Converter is designed to fit in various locations, from behind a monitor to on a camera rig. It comes with a universal power supply that includes international plug connections for worldwide use.

For comprehensive information on the full range of AJA Mini-Converters, download the free AJA Mini-Matrix app on iOS. This app helps you find the right converter for any situation, with links back to the main AJA website for more details.
