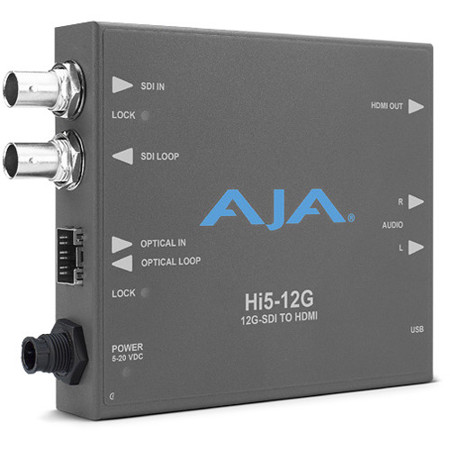

AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter

SKU: AJAHI512G MFR: HI5-12G
Earn VIP Reward Points

Key Features

  • Effortlessly convert 12G-SDI to HDMI 2.0 for high-resolution video displays and reliable format compatibility.
  • Enjoy real-time streaming with this video format converter, ensuring seamless broadcast and production workflows.
  • This 4K HDMI converter supports up to 60p for crystal-clear visuals, perfect for professional video applications.
  • With embedded audio support, this SDI to HDMI converter simplifies your audio/video synchronization process.
  • Compact and easy to use, the AJA Hi5-12G ensures a reliable connection for all your video conversion needs.
  • Get precise video format conversion with this affordable converter, ideal for diverse video engineering projects.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Francis C : For my project

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA Hi5-12G Specifications

  • Video Formats

    (4K) 4096 x 2160p
    (UltraHD) 3840 x 2160p
    (2K) 2048 x 1080p
    (HD) 1920 x 1080p
    (HD) 1920 x 1080i
    (HD) 1280 x 720p
    (SD) 720 x 576i
    (SD) 720 x 480i

  • Video Input Digital

    1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
    YCbCr 4:2:2/4:4:4
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit
    Two Sample Interleave (2SI) 4K/UltraHD source mapping

    1x 12Gb SDI :
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    1x 6Gb SDI :
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30,
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

  • Video Input Digital (Cont.)

    1x 3Gb SDI (Level A or B-Dual Link):
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p (1280 x 720p is Level A Only) 50, 59.94, 60

  • Video Input Digital (Cont..)

    1x 1.5Gb SDI:
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60

    1x 270Mb SDI:
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Output Digital

    1x HDMI Type A connector, HDMI v2.0b
    YCbCr 4:2:2/4:4:4/4:2:0
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
    HDR Infoframe generation as defined in CTA-861-G and HDMI v2.0b
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Output Digital (Cont.)

    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60
    (SD) 720 x 576i 50
    (SD) 720 x 480i 59.94

  • Audio Input Digital

    SDI embedded audio, 24-bit, 8-Channel

  • Audio Output Digital

    HDMI embedded audio, 24-bit, 8-Channel

  • Audio Output Analog

    2x RCA style connector, 2-Channel -10dBu (nominal)

  • User Interface

    USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

  • Power

    5-16VDC regulated, 11 watts, power supply required included
    AC Adapter: 100-240VAC, 50/60 Hz, universal input

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature

    Power OFF: -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3000m (9842.40')

  • Dimensions (WxDxH)

    4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    812321031522

About AJA Hi5-12G

With the Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter, experience high-quality, reliable conversion of 12G-SDI to HDMI 2.0. This innovative device ensures pristine image fidelity and High Frame Rate (HFR) support up to 60p for 4K/UltraHD, all through a single cable. Designed for professional use, the Hi5-12G is an ideal solution for deploying monitoring connections from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, streamlining your professional workflows.

This user-friendly mini-converter can generate HDR metadata in line with HDMI v2.0 and CTA-861-G standards, enhancing your viewing experience with a wider and richer range of colors, brighter whites, and deeper blacks. The Hi5-12G's support for HDR gives your imagery a dynamic look, conveying natural, true-to-life colors to your audience.

The Hi5-12G is also equipped with a 12G-SDI single link input with a reclocked SDI loop out, simplifying SDI confidence monitoring or pass on for SDI pipelines. It supports Hybrid Log Gamma (HLG) HDR displays over HDMI, ensuring compatibility with a wide range of display technologies.

Whether you're working with 4K or UltraHD signals, the Hi5-12G can compensate for resolution differences, allowing seamless integration of UltraHD monitors in 4K productions and vice versa. It also supports high-quality 12G-SDI inputs, critical for large raster and deep color workflows where image quality is paramount.

The Hi5-12G integrates audio seamlessly, supporting up to 16-Channels of embedded SDI audio on input and passing it to 8-Channel of embedded HDMI audio on the output. It also features two channels of analog audio output for direct external monitoring.

For PsF signal compatibility, the Hi5-12G converts incoming 1080PsF signals to 1080p, making it compatible with HDMI monitors. This durable mini-converter comes with a universal power supply, including international plug connections for global use. Its compact design makes it portable enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. The locking power connector ensures a secure connection, and the optional P-TAP power cable allows for battery power in remote locations.

AJA Hi5-12G Features

  • Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
  • Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
  • HDR support for HDR10 and HLG
  • Embedded audio support
  • 12G-SDI loop out
  • Fiber SFP models available
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Effortlessly convert 12G-SDI to HDMI 2.0 for high-resolution video displays and reliable format compatibility.
  • Enjoy real-time streaming with this video format converter, ensuring seamless broadcast and production workflows.
  • This 4K HDMI converter supports up to 60p for crystal-clear visuals, perfect for professional video applications.
  • With embedded audio support, this SDI to HDMI converter simplifies your audio/video synchronization process.
  • Compact and easy to use, the AJA Hi5-12G ensures a reliable connection for all your video conversion needs.
  • Get precise video format conversion with this affordable converter, ideal for diverse video engineering projects.

What's in the box:

  • AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Year Limited Warranty
