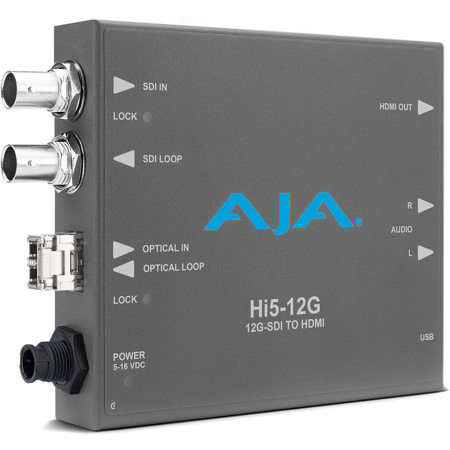

AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver
See all AJA items

AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver

SKU: AJAHI512GTR MFR: HI5-12G-TR
Be the first to review this itemAsk a Question
$1,495.00
OR
$125/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert 12G-SDI to HDMI 2.0 with this mini-converter for high-quality video output.
  • Enjoy stable connection with the built-in fiber transceiver, ensuring reliable video and audio feeds.
  • Achieve real-time streaming with low latency, perfect for live events and broadcast applications.
  • Experience format compatibility with support for 4K/UltraHD, HD, and SD video formats via SDI.
  • Simplify your setup; this converter supports easy configuration via USB on Mac or Windows.
  • Get high-resolution video output, supporting up to 4096 x 2160p for crystal-clear visuals.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA HI5-12G-TR Specifications

  • Video Formats

    (4K) 4096 x 2160p
    (UltraHD) 3840 x 2160p
    (2K) 2048 x 1080p
    (HD) 1920 x 1080p
    (HD) 1920 x 1080i
    (HD) 1280 x 720p
    (SD) 720 x 576i
    (SD) 720 x 480i

  • Video Input Digital

    1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
    YCbCr 4:2:2/4:4:4
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit
    Two Sample Interleave (2SI) 4K/UltraHD source mapping

    1x 12Gb SDI :
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    1x 6Gb SDI :
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30,
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

  • Video Input Digital (Cont.)

    1x 3Gb SDI (Level A or B-Dual Link):
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p (1280 x 720p is Level A Only) 50, 59.94, 60

  • Video Input Digital (Cont..)

    1x 1.5Gb SDI:
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60

    1x 270Mb SDI:
    (SD) 625i 50
    (SD) 525i 59.94

  • Input Signal Selection

    1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

    1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082:
    Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    Overload Power: -2 dBm (min)

  • Video Output Digital

    1x HDMI Type A connector, HDMI v2.0b
    YCbCr 4:2:2/4:4:4/4:2:0
    RGB 4:4:4, SMPTE or Full level
    8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
    HDR Infoframe generation as defined in CTA-861-G and HDMI v2.0b
    (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Video Output Digital (Cont.)

    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60
    (SD) 720 x 576i 50
    (SD) 720 x 480i 59.94

    1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082:
    Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    Optical Power: -5 dBm (min), 0.5 dBm (max)
    Extinction Ratio: 5.4 dB (min)

  • Audio Input Digital

    SDI embedded audio, 24-bit, 8-Channel

  • Audio Output Digital

    HDMI embedded audio, 24-bit, 8-Channel

  • Audio Output Analog

    2x RCA style connector, 2-Channel -10dBu (nominal)

  • User Interface

    USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

  • Power

    5-16VDC regulated, 11 watts, power supply required included
    AC Adapter: 100-240VAC, 50/60 Hz, universal input

  • Safe Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Safe Storage Temperature

    Power OFF: -40 to 60 deg. C (-40 to 140 deg. F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3000m (9842.40')

  • Dimensions (WxDxH)

    4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    812321031539

About AJA HI5-12G-TR

Let the Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver from Adorama streamline your professional video and audio workflows. This innovative and compact device is designed to convert 12G HD-SDI, 3G HD-SDI, 6G HD-SDI, fiber, and SDI signals to HDMI 2.0 with exceptional image fidelity.

Supporting High Frame Rate (HFR) up to 60p for 4K/UltraHD, this converter ensures pristine image quality with single cable simplicity. It's an ideal solution for deploying monitoring connections from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, offering cost-effective monitoring in professional workflows.

The Hi5-12G-TR also generates HDR metadata in accordance with HDMI v2.0 and CTA-861-G, providing a wider and richer range of colors, brighter whites, and deeper, darker blacks. This High Dynamic Range (HDR) support enhances your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays, delivering natural, true-to-life colors to your audience.

Equipped with a 12G-SDI single link input and a reclocked SDI loop out, this converter simplifies SDI confidence monitoring or pass on for SDI pipelines. The Fiber SFP equipped Hi5-12G models, including the Hi5-12G-TR transceiver, deliver a 4K/UltraHD SDI or Fiber source signal to an HDMI destination, with pass on of the source through SDI or Fiber to a secondary destination.

The Video Source Auto Switch Over feature in Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection. This ensures seamless operation, even in the most demanding professional environments.

The Hi5-12G-TR also supports Hybrid Log Gamma (HLG) HDR displays over HDMI and can compensate for resolution differences between 4K and UltraHD signals, making it versatile for various workflows. It also supports up to 16-Channels of embedded SDI audio on input and can pass to 8-Channel of embedded HDMI audio on the output, with the ability to delay the audio for proper synchronization with the output video.

This durable and reliable mini-converter from Adorama is small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig, making it an essential tool for live events, broadcast, and post-production applications.

AJA HI5-12G-TR Features

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
  • Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination
  • Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
  • DWP-U power supply and a USB port for firmware updates
  • Five year warranty

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert 12G-SDI to HDMI 2.0 with this mini-converter for high-quality video output.
  • Enjoy stable connection with the built-in fiber transceiver, ensuring reliable video and audio feeds.
  • Achieve real-time streaming with low latency, perfect for live events and broadcast applications.
  • Experience format compatibility with support for 4K/UltraHD, HD, and SD video formats via SDI.
  • Simplify your setup; this converter supports easy configuration via USB on Mac or Windows.
  • Get high-resolution video output, supporting up to 4096 x 2160p for crystal-clear visuals.

What's in the box:

  • AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber Transceiver
  • DWP-U-R1 Universal Power Supply
  • AJA 5 Year Limited Warranty
