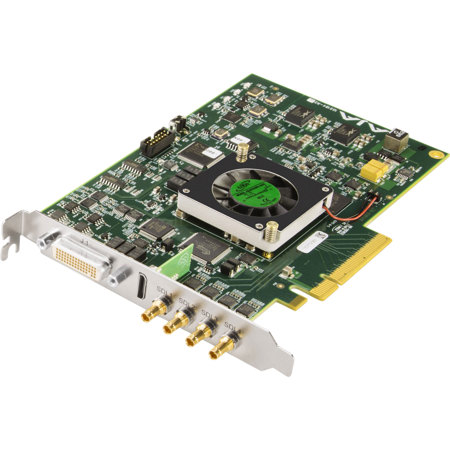

AJA KONA 3G SD/HD/3G PCIe Card with 3G-SDI Mini-BNC to Full-Size BNC Adapter Cable, Breakout Cable
SKU: AJAK3GR0S05 MFR: KONA-3G-R0-S05
Earn VIP Reward PointsKey Features
- Capture pristine video with the KONA 3G card, supporting SD, HD, and 3G-SDI formats.
- Enjoy low latency video capture for seamless editing and live streaming workflows.
- Easily integrate this video capture card into your existing PCIe infrastructure.
- Achieve high resolution video output with 4K/UltraHD support for stunning visuals.
- Ensure stable connection and reliable performance with AJA's trusted technology.
- Experience good compatibility across various video formats and editing software.
Special Order?Estimated to Ship: 08/26/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$89.99
3 Year
$149.99
4 Year
$194.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About AJA KONA 3G
Top-of-the-line capabilities and quality make KONA 3G the go-to desktop I/O card.
KONA 3G is a video and audio desktop I/O card that provides video professionals with unparalleled features for handling everything from SD to HD, 2K and 4K with full 10-bit uncompressed clarity. With a broadcast quality up-,down-,cross-converter and the ability to work in 3D, KONA 3G has the power for the work you do today and into the future.
KONA 3G offers users a single, powerful card with support for 4:2:2 and 4:4:4 color spaces to provide the highest quality for your images. The futureproof architecture means you can easily work with HD and 2K now and switch to working at 4K resolution when the need arises even at frame rates up to 60 fps, without the requirement for new hardware. without the requirement for new hardware.
KONA 3G supports Dual Link 4:4:4 HD-SDI, with full-bandwidth 4:4:4 RGB at 10-bits for 1080i, 1080p, 1080PsF and 720p formats. KONA 3G can also convert between 4:4:4 and 4:2:2 formats for single link HD-SDI monitoring and output.
For SDI video, KONA 3G features two 3G/HD/SD inputs and two outputs. HDMI 1.4a monitoring output, LTC I/O, Genlock input and configurable 3 x BNC SD/HD analog video output. Switch KONA 3G into 4K mode and all four BNC connections can be used for 4K capture or output.
KONA 3G's extensive 4K support allows output directly from editing systems to 4K projectors or monitors, including HFR support at 50/60 fps and 4K HDMI output to support the latest UltraHD monitors, allowing editors and clients to view full resolution 4K images as they work. This output capability enables a powerful 4K workflow that is also affordable and manageable.
The built-in up-,down-, cross-converter brings any video to a unified resolution, simplifying workflows and eliminating the need to adjust resolution within software. KONA 3G also includes a powerful hardware downstream keyer that can place graphic files with an alpha channel, selectable color matte or the contents of the card ½s frame buffer over the video being input to the card.
From SD to 4K in a single card
KONA 3G is futureproof, allowing you to easily work in HD and 2K and switch to working at 4K resolution without the need for additional or new hardware. Leading the way for quality 4K capture, monitoring and output, KONA 3G offers 4K in both YCbCr and RGB. When 4K mode is selected, the four SDI connectors are remapped as I/O for handling the four quadrants of a 4K picture, providing support for most standard 4K formats.
Integrated AJA hardware conversion
KONA 3G features full 10-bit, broadcast-quality, motion-adaptive SD to HD up conversion, HD to HD cross conversion, HD to SD down conversion, and automatic SD/HD 12-bit component analog output. Since all conversion functionality on the KONA 3G is hardware-based, it ½s available on ingest or playback.
Uniquely, the KONA 3G can cross convert 720p 23.98 to 1080PsF 23.98. Cross conversion is particularly valuable in today's multiformat HD post environment where producing pristine 720p or 1080i signals at-will helps streamline dailies and deliverables.
Extend your Connectivity
The optional K3G-Box breakout box and cables allow KONA 3G to integrate easily into rack environments, enabling quick access to all video and audio connections without having to get at the back of the tower computer.
Additional K3G-Box functionality over the standard breakout cable comes in the form of eight additional AES audio channels, 2-channel RCA analog audio monitoring jacks, and looping BNC Genlock reference connectors.
AJA KONA 3G Features
- SD-SDI, HD-SDI, Dual Link HD-SDI, HSDL, and 3G HD-SDI inputs
- HDMI 1.4a output for stereoscopic monitoring to consumer 3D displays
- 2K support that includes 2048x1556 and 2048x1080 formats
- 4K capture and playout
- 4x Lane PCI-Express Bus Interface
- DVCProHD hardware scaling acceleration
- HDV hardware scaling acceleration
- Dynamic RT Extreme hardware acceleration
- Broadcast quality hardware based 10-bit upconversion
- Broadcast quality hardware based 10-bit downconversion
- Broadcast quality hardware based 10-bit crossconversion (1080 to 720 and 720 to 1080)
- Broadcast quality hardware based 10-bit SD aspect ratio conversion (anamorphic to letterbox, etc.)
- 12-bit HD component analog video and SD analog component or composite and svideo output
- 10-bit HD/SD Video+Key Output
- HD/SD Hardware Downstream Keyer
- LTC (longitudinal timecode) input/output
- 8-channels 24-bit, 48kHz digital AES/EBU audio
- 16-channels of SDI embedded digital audio
- RS-422 control via 9 pin
- Genlock input with optional looping capability via the K3G- Box (terminated on the supplied breakout cable)
- Standard 2 meter length connection cables including HDMI mini to HDMI output cable
Warranty Information
This product has a limited warranty of 36 months.
