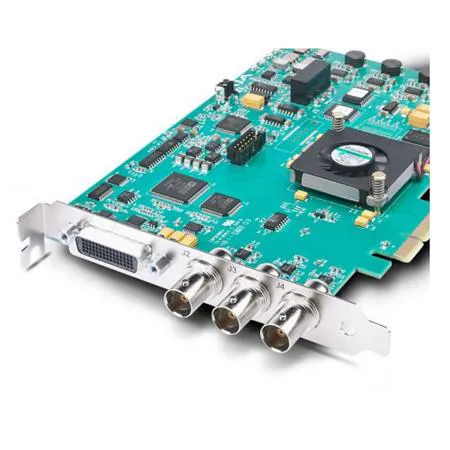

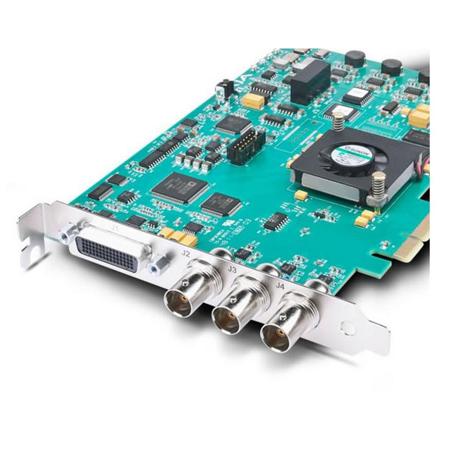

AJA KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card, Bundle with External Breakout Box KL-BOX-LH-RO

SKU: AJAKLHER0S01 MFR: KONA-LHE+R0-S01
Be the first to review this itemAsk a Question
$1,855.00
OR
$155/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine HD/SD video with the AJA KONA LHe Plus's superior video capture card.
  • Enjoy low latency video workflows for seamless editing and live streaming using this PCIe card.
  • Utilize the external breakout box for easy setup and stable connection with various devices.
  • Achieve good compatibility with professional software for broadcast and post-production tasks.
  • Digitize analog archives with high resolution component, composite, and S-Video capture options.
  • Affordable price for a professional-grade video capture solution, perfect for any production.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$149.99

4 Year

$194.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA KONA LHe Plus Specifications

  • Video Formats

    (HD) 1080i 50, 59.94, 60
    (HD) 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Input Digital

    SD/HD SDI, SMPTE-259/292/296, 8 or 10-bits
    Single Link 4:2:2 (1x BNC)

  • Video Input Analog

    Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
    NTSC, NTSCJ, PAL
    Component (3x BNC)
    HD: YPbPr, RGB
    SD: YPbPr, RGB (component mode)
    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
    12-bit A/D, 8x oversampling
    +/- .2 dB to 5.0 MHz Y Frequency Response
    +/- .2 dB to 1 MHz C Frequency Response
    0.5% 2T pulse response
    <1% Diff Phase
    <1% Diff Gain
    <1 ns Y/C delay inequity

  • Video Output Digital

    HD SDI, SMPTE-292/296, 10-bit
    SD SDI, SMPTE-259M, 10-bit

  • Video Output Analog

    Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
    NTSC, NTSCJ, PAL
    Component (3x BNC)
    HD: YPbPr, RGB
    SD: YPbPr, RGB (component mode)
    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
    12-bit D/A, 8x oversampling
    +/- .2 dB to 5.0 MHz Y Frequency Response
    +/- .2 dB to 1 MHz C Frequency Response
    0.5% 2T pulse response
    <1% Diff Phase
    <1% Diff Gain
    <1 ns Y/C delay inequity

  • Audio Input Digital

    8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

  • Audio Input Analog

    2-Channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
    +24 dBu full scale digital
    +/- 0.2 dB 20 Hz to 20 kHz frequency response

  • Audio Output Digital

    8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

  • Audio Output Analog

    2-Channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
    +24 dBu full scale digital (0 dBFS)
    +/- 0.2 dB 20 Hz to 20 kHz frequency response
    2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)

  • Down-Conversion

    Hardware 10-bit
    Anamorphic: fullscreen
    Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
    Crop: image is cropped to fit new screen size

  • Reference Input

    Analog Color Black (1V) or Composite Sync (2 or 4V)
    Looping
    75 ohms on optional KL-Box, terminated on supplied breakout cable

  • Electrical Interface

    4-lane PCIe 1.0

  • Machine Control

    RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
    9-pin D-connector pinout is as follows: 1. GND, 2. RX-, 3. TX+, 4. GND, 5. No Connection, 6. GND, 7. RX+, 8. TX-, 9. GND, Shell. GND

  • Power

    13W typical, 15W maximum

  • Safe Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Safe Storage Temperature (Power OFF)

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <10,000' (<3,000m)

  • Dimensions (W x D x H)

    0.75 x 8.25 x 5" (19.05 x 209.55 x 127mm)

  • Weight

    0.7 lbs (0.4kg)

  • UPC Code

    812321031386

About AJA KONA LHe Plus

Find the perfect balance of affordability and power with the KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card. This high-quality desktop I/O solution is designed for video professionals of all levels, offering both HD/SD analog and digital I/O for video and audio. It simplifies the integration of analog and digital signals into a single workflow and provides multiple output options to meet any format requirements.

The KONA LHe Plus supports 10-bit or 8-bit uncompressed video and features one input and two outputs, which can be independently configured for HD or SD. It also includes 2-channel AES digital audio, 8-channel SDI embedded digital audio, analog composite/S-video/SD/HD component video I/O, 2-channel balanced analog audio I/O, and a Genlock input. Additionally, it comes with three BNCs that can be configured for analog video input and output (HD or SD).

This versatile I/O solution supports macOS, Windows, and Linux, offering cost-effective and simple connectivity for a range of workflows. It also supports 12-bit analog component HD input and output, allowing devices with analog HD output, such as analog VTRs and game consoles, to be connected for various workflows.

The KONA LHe Plus features a 9-pin RS-422 connection, available on either the included breakout cable or the optional KL-Box-LH breakout box. This allows the KONA LHe Plus to control external devices for frame-accurate ingest and layoffs. It also includes full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. This hardware-based conversion is available at all times, during ingest or playback.

The KONA LHe Plus is supported by an extensive list of professional software for editing, visual effects, graphics, and more. AJA also provides several free applications that enable you to utilize the power of your AJA hardware without having to run a particular software package.

Extend your connectivity with the optional KL-Box-LH breakout box. This box allows you to easily integrate the KONA LHe Plus into rack environments and provides quick access to all video and audio connections. It includes BNC digital AES/EBU connectors and RCA audio monitoring jacks. The KL-Box attaches to the KONA LHe Plus card via supplied cables and offers two-channel unbalanced audio output (2 RCA Jacks) not available with the standard cable.

The KONA LHe Plus also features BNC connectors, which ensure a positive connection by locking the connectors together. This prevents the cable from accidentally being pulled out, providing a reliable and secure connection for your video equipment.

AJA KONA LHe Plus Features

  • Supports HD and SD ingest and output at frame rates up to 30p
  • Real time down-conversion
  • HD-SDI I/O and Component Video I/O on supplied breakout cable
  • 2-ch AES/EBU, 8-ch embedded SDI digital audio I/O on supplied breakout cable
  • 2-ch balanced analog audio I/O on supplied breakout cable
  • Extend external connectivity incl Ref and RS-42 with supplied breakout cable
  • macOS, Windows and Linux support
  • Compatible with leading creative apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine HD/SD video with the AJA KONA LHe Plus's superior video capture card.
  • Enjoy low latency video workflows for seamless editing and live streaming using this PCIe card.
  • Utilize the external breakout box for easy setup and stable connection with various devices.
  • Achieve good compatibility with professional software for broadcast and post-production tasks.
  • Digitize analog archives with high resolution component, composite, and S-Video capture options.
  • Affordable price for a professional-grade video capture solution, perfect for any production.

What's in the box:

  • KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card
  • External Breakout Box (KL-BOX-LH-R0)
  • Breakout Cable
  • Bracket
  • Operation Manual
  • Instollation Software CD
  • Registration Sheets
  • AJA 3 Year Limited Warranty
