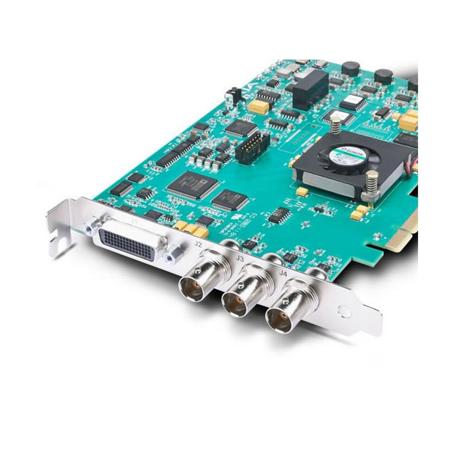

AJA KONA LHe Plus HD/SDI Analog Video & PCIe Card without Bracket or Cable
See all AJA items

AJA KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card, Board Only without Bracket or Cable

SKU: AJAKLHER0S03 MFR: KONA-LHE+R0-S03
Be the first to review this itemAsk a Question
$1,235.00
OR
$103/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine HD/SDI video with this PCIe card, ensuring low latency for seamless workflows.
  • Enjoy broad compatibility with various video formats, including 1080i/p and 720p, for versatile capture.
  • Easily integrate analog sources using composite, S-Video, or component inputs for diverse capture needs.
  • Experience stable streaming with 8-channel embedded SDI audio, perfect for professional broadcasts.
  • This affordable video capture solution offers high resolution output for superior image quality.
  • Set up your video capture system quickly with included software, and start recording in minutes.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$77.99

3 Year

$119.99

4 Year

$155.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AJA KONA LHe Plus Specifications

  • Video Formats

    (HD) 1080i 50, 59.94, 60
    (HD) 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Video Input Digital

    SD/HD SDI, SMPTE-259/292/296, 8 or 10-bits
    Single Link 4:2:2 (1x BNC)

  • Video Input Analog

    Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
    NTSC, NTSCJ, PAL
    Component (3x BNC)
    HD: YPbPr, RGB
    SD: YPbPr, RGB (component mode)
    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
    12-bit A/D, 8x oversampling
    +/- .2 dB to 5.0 MHz Y Frequency Response
    +/- .2 dB to 1 MHz C Frequency Response
    0.5% 2T pulse response
    <1% Diff Phase
    <1% Diff Gain
    <1 ns Y/C delay inequity

  • Video Output Digital

    HD SDI, SMPTE-292/296, 10-bit
    SD SDI, SMPTE-259M, 10-bit

  • Video Output Analog

    Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
    NTSC, NTSCJ, PAL
    Component (3x BNC)
    HD: YPbPr, RGB
    SD: YPbPr, RGB (component mode)
    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
    12-bit D/A, 8x oversampling
    +/- .2 dB to 5.0 MHz Y Frequency Response
    +/- .2 dB to 1 MHz C Frequency Response
    0.5% 2T pulse response
    <1% Diff Phase
    <1% Diff Gain
    <1 ns Y/C delay inequity

  • Audio Input Digital

    8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

  • Audio Input Analog

    2-Channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
    +24 dBu full scale digital
    +/- 0.2 dB 20 Hz to 20 kHz frequency response

  • Audio Output Digital

    8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
    2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

  • Audio Output Analog

    2-Channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
    +24 dBu full scale digital (0 dBFS)
    +/- 0.2 dB 20 Hz to 20 kHz frequency response
    2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)

  • Down-Conversion

    Hardware 10-bit
    Anamorphic: fullscreen
    Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
    Crop: image is cropped to fit new screen size

  • Reference Input

    Analog Color Black (1V) or Composite Sync (2 or 4V)
    Looping
    75 ohms on optional KL-Box, terminated on supplied breakout cable

  • Electrical Interface

    4-lane PCIe 1.0

  • Machine Control

    RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
    9-pin D-connector pinout is as follows: 1. GND, 2. RX-, 3. TX+, 4. GND, 5. No Connection, 6. GND, 7. RX+, 8. TX-, 9. GND, Shell. GND

  • Power

    13W typical, 15W maximum

  • Safe Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Safe Storage Temperature (Power OFF)

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <10,000' (<3,000m)

  • Dimensions (W x D x H)

    0.75 x 8.25 x 5" (19.05 x 209.55 x 127mm)

  • Weight

    0.7 lbs (0.4kg)

About AJA KONA LHe Plus

Under the umbrella of advanced video editing solutions, the KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card stands out as a high-quality, professional-grade tool. This innovative card is designed to cater to the needs of video professionals across all levels, offering an affordable yet uncompromised desktop I/O solution.

The KONA LHe Plus supports both HD/SD analog and digital I/O for video and audio, seamlessly integrating analog and digital signals into a single workflow. Its multiple output options ensure the delivery of required formats, making it a reliable choice for diverse video editing needs.

The card's versatility is evident in its support for 10-bit or 8-bit uncompressed video. It features one input and two outputs, which can be independently configured for HD or SD. The KONA LHe Plus also includes 2-channel AES digital audio, 8-channel SDI embedded digital audio, analog composite/S-video/SD/HD component video I/O, 2-channel balanced analog audio I/O, Genlock input, and three BNCs that can be configured for analog video input and output (HD or SD).

The KONA LHe Plus is compatible with macOS, Windows, and Linux, offering cost-effective, simple connectivity for a range of workflows. It supports 12-bit analog component HD input and output, enabling connections with devices like analog VTRs and game consoles for diverse workflows.

The card's 9-pin RS-422 connection, available on either the included breakout cable or the optional KL-Box-LH breakout box, allows for frame-accurate control of external devices. The KONA LHe Plus also features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. This hardware-based conversion ensures constant availability during ingest or playback.

The KONA LHe Plus is supported by an extensive list of professional software for editing, visual effects, graphics, and more, allowing for its use across multiple applications on the same system. AJA also provides several free applications to maximize the power of your AJA hardware without the need for specific software packages.

The optional KL-Box-LH breakout box extends the card's connectivity, providing quick access to all video and audio connections. Additional connectivity includes BNC digital AES/EBU connectors and RCA audio monitoring jacks, making the KONA LHe Plus a comprehensive solution for all your video capture and playback needs.

AJA KONA LHe Plus Features

  • Supports HD and SD ingest and output at frame rates up to 30p
  • Real time down-conversion
  • HD-SDI I/O and Component Video I/O on supplied breakout cable
  • 2-ch AES/EBU, 8-ch embedded SDI digital audio I/O on supplied breakout cable
  • 2-ch balanced analog audio I/O on supplied breakout cable
  • Extend external connectivity incl Ref and RS-42 with supplied breakout cable
  • macOS, Windows and Linux support
  • Compatible with leading creative apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine HD/SDI video with this PCIe card, ensuring low latency for seamless workflows.
  • Enjoy broad compatibility with various video formats, including 1080i/p and 720p, for versatile capture.
  • Easily integrate analog sources using composite, S-Video, or component inputs for diverse capture needs.
  • Experience stable streaming with 8-channel embedded SDI audio, perfect for professional broadcasts.
  • This affordable video capture solution offers high resolution output for superior image quality.
  • Set up your video capture system quickly with included software, and start recording in minutes.

What's in the box:

  • KONA LHe Plus HD/SDI Analog Video Capture & Playback PCIe Card
  • Operation Manual
  • Instollation Software CD
  • Registration Sheets
  • AJA 3 Year Limited Warranty
