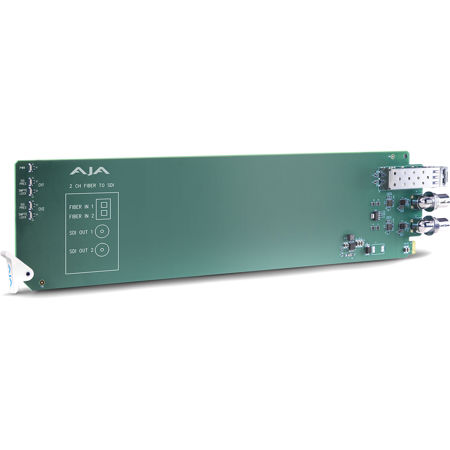

AJA OG-FIBER-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

SKU: AJAOGFIB2RMM MFR: OG-FIBER-2R-MM
Earn VIP Reward Points

Key Features

  • Effortlessly convert multi-mode LC fiber to 3G-SDI with this 2-channel receiver.
  • Enjoy wide compatibility with SMPTE-259/292/424 for seamless SDI output.
  • Achieve reliable connection with reclocking at multiple Gbps rates.
  • Simplify your video switching setup using this openGear frame compatible card.
  • Maintain high resolution with format-agnostic support from 100 Mbps to 3 Gbps.
  • Ensure optimal performance within a safe operating temperature range.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-FIBER-2R-MM Specifications

  • Video Formats

    100 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    2-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297

  • Nominal Wavelength

    850 nm

  • Optical Sensitivity

    -15dBm (min)

  • Video Output Digital

    2-Channel independent 3G-SDI Outputs, SMPTE-259/292/424

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    openGear frame compatible, 2.5 watts max per card

  • Safe Operating Temperature

    0 to 40 degrees C (32 to 104 degrees F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 degrees C (-40 to 140 degrees F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

About AJA OG-FIBER-2R-MM

Experience the superior performance and reliability of the OG-FIBER-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver. This advanced device offers unparalleled flexibility and cost-efficiency for 3G-SDI Fiber conversion, supporting cable runs up to 700 meters (2296 ft) for OM4 and 300 meters (984 ft) for OM3 for Multi-Mode fiber optic cables. This makes it an ideal solution for eliminating ground loop problems in professional video and audio applications.

The OG-FIBER-2R-MM is designed to handle video formats from 100 Mbps to 3 Gbps, making it format agnostic. It features two independent Multi-Mode optical fiber inputs with LC connectors, and two independent 3G-SDI outputs with BNC connectors, offering versatility and compatibility with a wide range of devices.

One of the key features of this high-quality receiver is its automatic detection and re-clocking capabilities. It can auto-select and re-clock rates of 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps, while all other rates are passed through without re-clocking. This ensures a smooth, reliable signal transmission every time.

The OG-FIBER-2R-MM operates at a wavelength of 850 nm and has an optical sensitivity of -15dBm (min). It consumes a low power of 2.5 watts, making it an energy-efficient choice. The receiver is hot-swap capable and compatible with DFR-8321 and OG3 openGear frames. Its openGear standard form factor, front slot, and rear card design require two slots for each card.

The openGear standard ensures that the OG-FIBER-2R-MM will be compatible with other openGear products from certified openGear partners. This growing list of products signifies that openGear is the future of rackframe products.

The fiber inputs of the OG-FIBER-2R-MM are re-clocked with best-in-class input jitter tolerance. It supports 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The fiber connector is attached to the main card for added reliability and cost savings.

Like all AJA Converters, the OG-FIBER-2R-MM is built to the highest quality standards and backed by a world-class support network, a five-year international warranty, and AJA's advanced replacement policy. Trust in the durability and reliability of AJA Converters for your professional video and audio applications.

AJA OG-FIBER-2R-MM Features

  • Advanced 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver for professional video and audio applications
  • Supports cable runs up to 700 meters for OM4 and 300 meters for OM3, ideal for eliminating ground loop problems
  • Automatic detection and re-clocking of various rates for smooth, reliable signal transmission
  • Energy-efficient design with a low power consumption of 2.5 watts, hot-swap capable
  • Compatible with DFR-8321 and OG3 openGear frames, ensuring flexibility and future-proofing with openGear standard
  • Built to the highest quality standards of AJA Converters, backed by a world-class support network and advanced replacement policy

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Effortlessly convert multi-mode LC fiber to 3G-SDI with this 2-channel receiver.
  • Enjoy wide compatibility with SMPTE-259/292/424 for seamless SDI output.
  • Achieve reliable connection with reclocking at multiple Gbps rates.
  • Simplify your video switching setup using this openGear frame compatible card.
  • Maintain high resolution with format-agnostic support from 100 Mbps to 3 Gbps.
  • Ensure optimal performance within a safe operating temperature range.

What's in the box:

  • AJA OG-FIBER-2R-MM openGear 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
  • AJA 5 Year Limited Warranty
