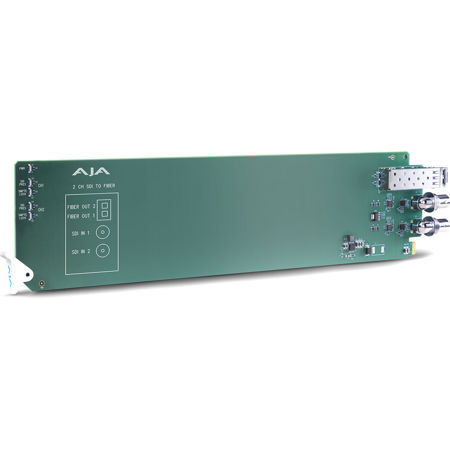

AJA OG-FIBER-2T-MM openGear 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

SKU: AJAOGFIB2TMM MFR: OG-FIBER-2T-MM
Earn VIP Reward Points

Key Features

  • Transmit 3G-SDI signals over long distances reliably with this Fiber Transmitter.
  • Enjoy easy setup with this openGear Fiber Transmitter, seamlessly integrating into your workflow.
  • This video transmitter ensures high resolution signal integrity up to 3 Gbps, format agnostic.
  • With 2-Channel independent Multi-Mode LC Fiber Outputs, experience good compatibility.
  • The AJA Fiber Transmitter features automatic reclocking for stable video signal transmission.
  • This compact design 2-Channel 3G-SDI Fiber Transmitter offers a dependable connection.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-FIBER-2T-MM Specifications

  • Video Formats

    100 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    2-Channel independent 3G-SDI Inputs, SMPTE-259/292/424

  • Video Output Digital

    2-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
    Nominal Wavelength: 850 nm

  • Optical Power

    -7dBm (min), -2dBm (max)

  • Extinction Ratio

    7.5dB (Typ)

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    openGear frame compatible, 2.5 watts max per card

  • Safe Operating Temperature

    0 to 40 degrees C (32 to 104 degrees F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 degrees C (-40 to 140 degrees F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

About AJA OG-FIBER-2T-MM

From professional video applications to long-distance transmission needs, the OG-FIBER-2T-MM openGear 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter is an advanced, high-quality solution. This robust device offers unparalleled flexibility and cost-efficiency for 3G-SDI Fiber conversion, supporting cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables. This feature is particularly useful for eliminating ground loop problems.

The OG-FIBER-2T-MM is equipped with two independent 3G-SDI Inputs with BNC connectors and two independent Multi-Mode optical fiber outputs with LC connectors. It supports a wide range of video formats from 100 Mbps to 3 Gbps, making it a format-agnostic device. It also features automatic detection and re-clocking at various rates, ensuring optimal performance.

With a wavelength of 850 nm and an optical power range of -7dBm (min) to -2dBm (max), this device ensures reliable transmission of signals. It operates at a power of 2.5 watts and is hot-swap capable, adding to its convenience and efficiency.

The OG-FIBER-2T-MM is compatible with DFR-8321 and OG3 openGear frames, adhering to the openGear standard form factor. This compatibility ensures that this transmitter will work seamlessly with other certified openGear products, making it a versatile addition to any professional setup.

The 3G-SDI inputs are re-clocked with best-in-class input jitter tolerance, supporting 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The fiber connector is attached to the main card for enhanced reliability and cost savings.

As with all AJA Converters, the OG-FIBER-2T-MM is built to exacting standards, ensuring the highest quality and levels of reliability. Backed by a world-class support network, a five-year international warranty, and AJA's advanced replacement policy, this device is a reliable and durable choice for all your video transmission needs.

AJA OG-FIBER-2T-MM Features

  • Advanced 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter for professional video applications
  • Supports cable runs up to 700m for OM4 and 300m for OM3, eliminating ground loop problems
  • Features two independent 3G-SDI Inputs and two Multi-Mode optical fiber outputs
  • Automatic detection and re-clocking for optimal performance across various video formats
  • Compatible with DFR-8321 and OG3 openGear frames for seamless integration
  • Built to AJA's exacting standards, ensuring high-quality and reliable performance

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Transmit 3G-SDI signals over long distances reliably with this Fiber Transmitter.
  • Enjoy easy setup with this openGear Fiber Transmitter, seamlessly integrating into your workflow.
  • This video transmitter ensures high resolution signal integrity up to 3 Gbps, format agnostic.
  • With 2-Channel independent Multi-Mode LC Fiber Outputs, experience good compatibility.
  • The AJA Fiber Transmitter features automatic reclocking for stable video signal transmission.
  • This compact design 2-Channel 3G-SDI Fiber Transmitter offers a dependable connection.

What's in the box:

  • AJA OG-FIBER-2T-MM openGear 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
  • AJA 5 Year Limited Warranty
