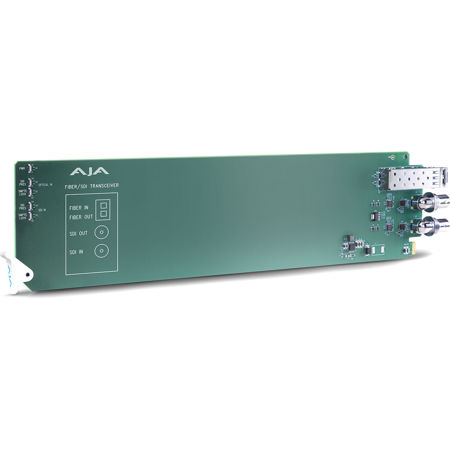

AJA OG-FIBER-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

SKU: AJAOGFIBTRMM MFR: OG-FIBER-TR-MM
Earn VIP Reward Points

Key Features

  • Effortlessly transmit high-quality video with this 3G-SDI fiber transceiver.
  • Ensure reliable video connectivity with multi-mode LC fiber, up to 3 Gbps.
  • Enjoy wide compatibility; this openGear card fits DFR-8321 and OG3 frames.
  • Achieve low latency video transmission with reclocking at multiple rates.
  • Simplify your setup with automatic rate selection for seamless integration.
  • This AJA transceiver offers good value, ensuring robust performance.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-FIBER-TR-MM Specifications

  • Compatibility

    DFR-8321 and OG3 openGear frames

  • Video Formats

    100 Mbps - 3 Gbps, format agnostic

  • Video Input Digital

    1-Channel independent 3G-SDI, SMPTE-259/292/424
    1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    Nominal Wavelength: 850 nm
    Optical Sensitivity: -15dBm (min)
    Optical Power: -7dBm (min), -2dBm (max)
    Extinction Ratio: 7.5dB (Typ)

  • Video Output Digital

    1-Channel independent 3G-SDI, SMPTE-259/292/424
    1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    Nominal Wavelength: 850 nm
    Optical Sensitivity: -15dBm (min)
    Optical Power: -7dBm (min), -2dBm (max)
    Extinction Ratio: 7.5dB (Typ)

  • Reclocking

    270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    All other rates are passed through and not reclocked

  • Power

    2.5 watts max per card

  • Safe Operating Temperature

    0 to 40 degrees C (32 to 104 degrees F)

  • Safe Storage Temperature (Power OFF)

    -40 to 60 degrees C (-40 to 140 degrees F)

  • Operating Relative Humidity

    10-90% noncondensing

  • Operating Altitude

    <3,000 meters (<10,000 feet)

About AJA OG-FIBER-TR-MM

Under the umbrella of advanced and reliable electronics, the OG-FIBER-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver stands out as a high-quality, durable solution for 3G-SDI Fiber conversion. This innovative device offers unparalleled flexibility and cost-efficiency, supporting cable runs up to 700 meters (2296 feet) for OM4 and 300 meters (984 feet) for OM3 with Multi-Mode fiber optic cables. This makes it an ideal tool for eliminating ground loop problems in professional video and audio applications.

The OG-FIBER-TR-MM openGear Transceiver supports a wide range of video formats, from 100 Mbps to 3 Gbps, making it format agnostic. It features 1x 3G-SDI and 1x LC Fiber connector inputs, and 1x 3G-SDI and 1x LC Fiber connector outputs. The device is equipped with automatic detection and re-clocking capabilities at various rates, ensuring optimal performance and signal stability.

With a wavelength of 850 nm, an optical sensitivity of -15dBm (min), and an optical power range of -7dBm (min) to -2dBm (max), this device guarantees high-quality signal transmission. It operates at a power of 2.5 watts and is hot-swap capable, adding to its convenience and user-friendly design.

The OG-FIBER-TR-MM openGear Transceiver is compatible with DFR-8321 and OG3 openGear frames, thanks to the openGear standard. This ensures that this transceiver will work seamlessly with other certified openGear products, making it a versatile addition to any professional setup.

Both Fiber and 3G-SDI inputs are re-clocked with best-in-class input jitter tolerance, supporting 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The signal paths are independent and can operate at different rates, further enhancing its versatility. This device supports Multi-Mode fiber cable, reinforcing its compatibility with a wide range of devices.

As with all AJA Converters, the OG-FIBER-TR-MM openGear Transceiver is built to exacting standards, ensuring the highest levels of quality and reliability. Backed by a world-class support network, a five-year international warranty, and AJA's advanced replacement policy, this transceiver is a trusted choice for professionals seeking superior performance and durability.

AJA OG-FIBER-TR-MM Features

  • Advanced 3G-SDI Fiber conversion technology for high-quality signal transmission
  • Supports cable runs up to 700m for OM4 and 300m for OM3 Multi-Mode fiber optic cables
  • Automatic detection and re-clocking capabilities for optimal performance and signal stability
  • Compatible with DFR-8321 and OG3 openGear frames, ensuring seamless integration with other openGear products
  • Reclocks both Fiber and 3G-SDI inputs with best-in-class input jitter tolerance
  • Built to exacting standards, ensuring superior reliability and backed by a five-year international warranty

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Effortlessly transmit high-quality video with this 3G-SDI fiber transceiver.
  • Ensure reliable video connectivity with multi-mode LC fiber, up to 3 Gbps.
  • Enjoy wide compatibility; this openGear card fits DFR-8321 and OG3 frames.
  • Achieve low latency video transmission with reclocking at multiple rates.
  • Simplify your setup with automatic rate selection for seamless integration.
  • This AJA transceiver offers good value, ensuring robust performance.

What's in the box:

  • AJA OG-FIBER-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
  • AJA 5 Year Limited Warranty
