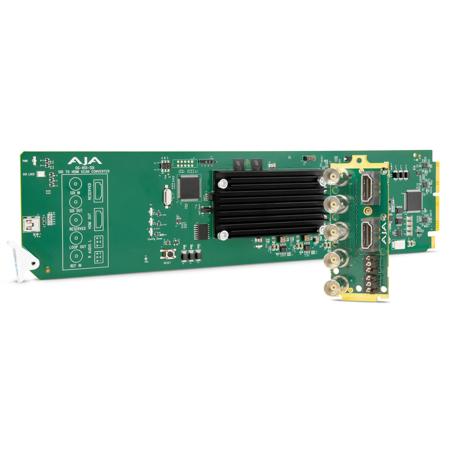

AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter

SKU: AJAOGROISDI MFR: OG-ROI-SDI
Earn VIP Reward Points

Key Features

  • Achieve real-time SDI/HDMI conversion with this AJA openGear video format converter.
  • Enjoy stable performance with broadcast-quality 3G-SDI to HDMI scan conversion.
  • Easily manage your video workflow with the intuitive openGear DashBoard software.
  • This affordable SDI converter supports up to 1080p60 for high-resolution video.
  • Simplify setup with this compact, openGear-compatible SDI to HDMI converter card.
  • Convert various video formats, ensuring compatibility across your production setup.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AJA OG-ROI-SDI Specifications

  • Video Input Formats

    Video Signals:
    (HD) 1920x1080i 50, 59.94
    (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1280x720p 50, 59.94, 60
    (SD) 625i, 50
    (SD) 525i, 59.94

  • Video Output Formats

    (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
    (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    (HD) 1920x1080i 50, 59.94, 60
    (HD) 1280x720p 50, 59.94, 60
    (SD) 625i 50
    (SD) 525i 59.94

  • Color Range

    Full
    SMPTE

  • Reference Source

    Free Run
    Ext Ref

  • Reference Input

    Supported reference video inputs include:
    1080i tri-level sync
    1080p tri-level sync
    720p tri-level sync
    625i Color Black
    525i Color Black
    75 ohm terminating

  • Video Input

    1x 3G-SDI BNC, SMPTE-259/292/424

  • Video Outputs

    1x 3G-SDI BNC, loop through
    1x 3G-SDI BNC, SMPTE-259/292/424
    1x HDMI Type A, HDMI v1.4

  • Audio I/O

    24-bit, 16-channel embedded SDI audio input
    24-bit, 16-channel embedded SDI audio output
    24-bit, 8-channel HDMI audio output
    Balanced analog audio outputs, 2x 3-Pin terminal block connectors

  • User Interface

    openGear DashBoard network control software via Windows, macOS or Linux

  • Power

    openGear frame compatible, 7.0 watts max per card

  • Environment

    Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    Operating Relative Humidity: 10-90% noncondensing
    Operating Altitude: <10,000' (<3,000m)

  • Size

    openGear standard form factor, front slot and rear card. Two slots required for each card

  • Weight

    0.5 lbs (0.3kg)

  • UPC Code

    00812321032352

About AJA OG-ROI-SDI

Are you in search of a robust and reliable solution for high-quality scan conversion of SDI inputs The OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter from AJA is your answer. This advanced converter card is designed to seamlessly convert SDI inputs into 3G-SDI and HDMI baseband video outputs, ensuring high-quality, distortion-free signal transmission.

The OG-ROI-SDI openGear Scan Converter stands out with its innovative region-of-interest image scaling, aspect ratio, and frame rate conversion capabilities. It's designed to meet the growing demand for efficient extraction from 3G-SDI sources into 3G-SDI and HDMI feeds, without compromising on budget or space.

With the OG-ROI-SDI, you can eliminate unnecessary interface clutter and extract only the desired portion of the computer screen. It's fully compatible with the free Ross DashBoard application, allowing for interactive selection of a Region of Interest from the incoming computer signal. You gain full control over how that region is scaled to the output resolution, thanks to AJA's high-quality scaling algorithms that ensure the cleanest picture quality possible.

The OG-ROI-SDI openGear Scan Converter also offers a unique ROI Window Wall Workflow. By using multiple OG-ROI-SDI openGear converters, you can create engaging displays with each converter feeding a display monitor side by side, each rotated to portrait mode. The SDI routed image remains in sync, with each OG-ROI-SDI providing the necessary Region of Interest output via SDI.

Audio compatibility is another strong feature of the OG-ROI-SDI. It accepts 2-channel analog audio from the 2x 3-pin terminal blocks connectors or embedded 8-channel audio from an SDI input. The audio source and routing can be selected in the DashBoard software and is embedded into the SDI output, allowing for easy, synchronized routing.

The OG-ROI-SDI openGear Scan Converter is part of the openGear standard, ensuring compatibility with other openGear products from certified openGear partners. It also offers flexible I/O with a modular rear panel allowing custom I/O connections per card. The optional redundant power supply provides a secondary power source in the event of a primary power failure.

With a standard Ethernet connection, the frame can be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

The OG-ROI-SDI openGear Scan Converter is a versatile, high-quality solution for professionals in the video production and post-production industry, offering a wide range of features designed to enhance your workflow and improve the quality of your output.

AJA OG-ROI-SDI Features

  • Scan Converter
  • openGear compatible card
  • 3G-SDI input with loop through
  • 3G-SDI and HDMI 1.4 outputs
  • Supports SD, HD, and 3G formats
  • Region of Interest Scaling
  • Up, down, cross-conversion
  • Aspect ratio conversion
  • Frame rate conversion
  • Image H/V flip and 90 degree rotation
  • Supports 8-channels of embedded audio
  • 2-channel analog audio output of disembedded audio (2x 3-Pin Terminal Block connectors included)
  • Sync reference selection (External, openGear frame, or Free-run)
  • Remote control over Ethernet using DashBoard network control software
  • Hot-swappable
  • Compatible with DFR-8321, OG3 and OGX openGear frames

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Achieve real-time SDI/HDMI conversion with this AJA openGear video format converter.
  • Enjoy stable performance with broadcast-quality 3G-SDI to HDMI scan conversion.
  • Easily manage your video workflow with the intuitive openGear DashBoard software.
  • This affordable SDI converter supports up to 1080p60 for high-resolution video.
  • Simplify setup with this compact, openGear-compatible SDI to HDMI converter card.
  • Convert various video formats, ensuring compatibility across your production setup.

What's in the box:

  • OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter
  • AJA 5 Year Limited Warranty
